Description
Product Description
General Description

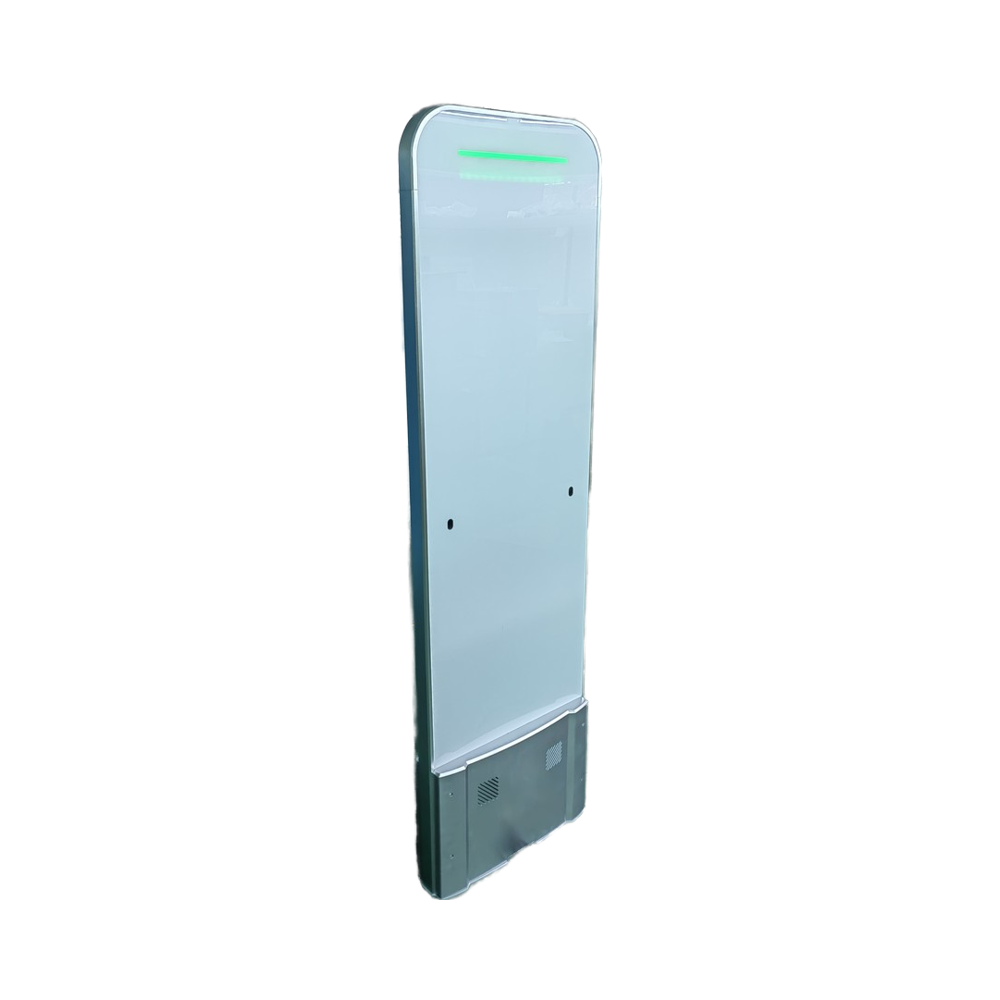

SR-RU8612B is a high-performance UHF RFID Gate reader with High-grade and beautiful appearance, it supports fast anti-collision analysis and read/write processing of UHF EPC Gen2 (ISO18000 6C) protocol RFID tags; with standard RS232 serial communication and network interface for direct connection to host computer, controllers and other related equipment. It can be widely applied large-flow access control management, attendance meeting check-in, warehouse management and process control management.
Features
* Completely independent intellectual property design
* Support EPC global Class1 Gen2/ISO 18000-6C protocol RFID tags
* 840~960MHz working frequency band (customization optional)
* The output power reaches 33dbm (adjustable)
* Support FHSS or fixed frequency transmission mode
* Advanced anti-collision algorithm, high identification rate
* Built-in main stream UHF module, high multi-tag reading performance, secure the data accuracy
* Built-in self-developed narrow beam antenna, control the reading area precisely and no blind spots
* Built-in sensitive alarm and buzzer
* Support RS232, RJ45 (TCP/IP) interface
* High reliability design to meet harsh working environment
* Provide Free demo software and SDK, support IAP firmware upgrade
* Provide Multi -language, such as C ++, C#, Python, Java; support and custom development
* Provide Multi -platform, such as Windows, Android, Linux, server, raspberry, cloud, etc.
The gate reader composition
* A set of passage doors (main door + auxiliary door)
* Contains 4 narrow beam antennas (10.5dBi)
* 2 RF feeders (standard 2.2 meters, length can be customized)
* 8 installation screws (external hexagonal expansion screws/M6*60/opening diameter 8mm)
* One buzzer and 2 LED strips
* Infrared launch module (optional component)
SR-RU8612B is a high-performance UHF RFID Gate reader with High-grade and beautiful appearance, it supports fast anti-collision analysis and read/write processing of UHF EPC Gen2 (ISO18000 6C) protocol RFID tags; with standard RS232 serial communication and network interface for direct connection to host computer, controllers and other related equipment. It can be widely applied large-flow access control management, attendance meeting check-in, warehouse management and process control management.
Features
* Completely independent intellectual property design
* Support EPC global Class1 Gen2/ISO 18000-6C protocol RFID tags
* 840~960MHz working frequency band (customization optional)
* The output power reaches 33dbm (adjustable)
* Support FHSS or fixed frequency transmission mode
* Advanced anti-collision algorithm, high identification rate
* Built-in main stream UHF module, high multi-tag reading performance, secure the data accuracy
* Built-in self-developed narrow beam antenna, control the reading area precisely and no blind spots
* Built-in sensitive alarm and buzzer
* Support RS232, RJ45 (TCP/IP) interface
* High reliability design to meet harsh working environment
* Provide Free demo software and SDK, support IAP firmware upgrade
* Provide Multi -language, such as C ++, C#, Python, Java; support and custom development
* Provide Multi -platform, such as Windows, Android, Linux, server, raspberry, cloud, etc.
The gate reader composition
* A set of passage doors (main door + auxiliary door)
* Contains 4 narrow beam antennas (10.5dBi)
* 2 RF feeders (standard 2.2 meters, length can be customized)
* 8 installation screws (external hexagonal expansion screws/M6*60/opening diameter 8mm)
* One buzzer and 2 LED strips
* Infrared launch module (optional component)
Specification
|
Electrical Specifications
|
||
|
Frequency(MHz)
|
902-928
|
|
|
Gain(dBi)
|
10.5±0.5
|
|
|
Beam Width(°)
|
Hor:40±2 Ver: 60±2
|
|
|
VSWR
|
≤1.3
|
|
|
Impedance (Ω)
|
50
|
|
|
Polarization
|
Circular
|
|
|
Max. Power (W)
|
50
|
|
|
Lightning Protection
|
DC Grounded
|
|
|
Mechanical Specifications
|
||
|
Connector
|
SMA-J
|
|
|
Dimension (mm)
|
1500*420*60
|
|
|
NW per gate
|
17.5kgs
|
|
|
Frame material
|
Aluminum Alloy
|
|
|
Base material
|
Metal
|
|
|
Panel material
|
Acrylic
|
|
|
Fixing method
|
Magnetic/removable
|
|
