General Description:

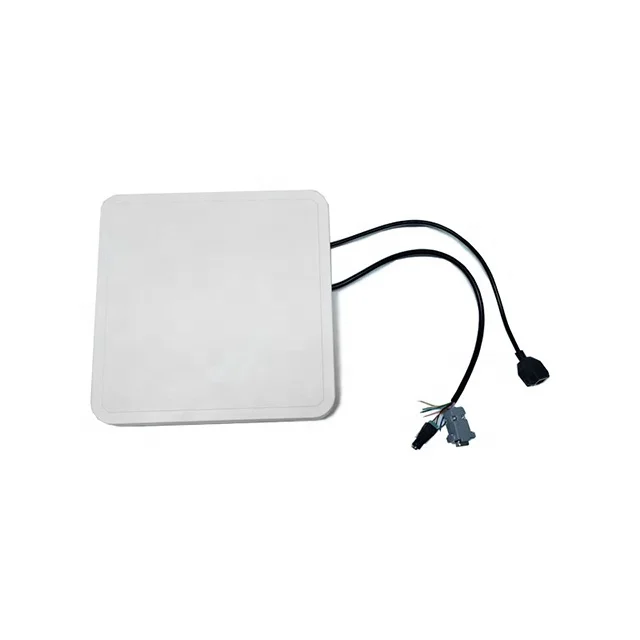

It is a High Performance M100 UHF Long Range Integrated Reader. It supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Application:
Vehicle no-stop toll management (car parking lot)
Logistics and warehouse management
Production flew-line management
Animals' recording management
Products anti-counterfeiting detection
Other field:
Club management
Library management
School and factory access control
Attendance management and more
Features:
1. Base on M100 Read/Write Chip;
2. Support ISO18000-6C (EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band (frequency customization optional by Soft);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 26dBm (adjustable);
6. 9dBi circular antenna with effect distance up to 0m~15m*;
7. Support active mode, answer mode, trigger-activating and password work mode;
8. Low power dissipation with single +12V DC power supply;
9. Support RS232, RS485, Wiegand interface, Relay, USB, RJ45, WIFI, POE,4G;
10. One Relay (Optional) can control Beep, Motor, Light.
11. Support ModBus (only RS232, RS485, RJ45 interface).
* Effective distance depends on antenna, tag and environment.
Product mode explanation:
|
Model |
Interface |
|
SW6909 |
Standard(RS232, RS485, Wiegand,Trigger) |
|
SW6909T |
Standard with RJ45 |
|
SW6909W |
Standard with WIFI |
|
SW6909TW |
Standard with RJ45 and WIFI |
|
SW6909TP |
Standard with RJ45 and POE |
|
SW6909TPW |
Standard with RJ45 and POE and WIFI |
|
SW6909R |
Standard with Relay |
|
SW6909U |
Standard with USB(HID & Keyboard) |
|
SW6909G |
Standard with 4G |
|
-T: RJ45 -W:WIFI -P:POE –R: Relay –U:USB –G: 4G |
|
Characteristics:
Absolute Maximum Rating
|
ITEM |
SYMBOL |
VALUE |
UNIT |
|
Power Supply |
VCC |
24 |
V |
|
Operating Temp. |
TOPR |
-20~+60 |
℃ |
|
Storage Temp. |
TSTR |
-40~+85 |
℃ |
Electrical and Mechanical Specification
Under TA=25℃,VCC=+12V unless specified
|
ITEM |
SYMBOL |
MIN |
TYPE |
MAX |
UNIT |
|
Power Supply |
VCC |
8 |
12 |
24 |
V |
|
Current Dissipation |
IC |
|
400 |
600 |
mA |
|
Frequency |
FREQ |
865 |
|
928 |
MHz |
Product Technical Parameters
Product Technical Parameters
|
Type |
|
|
Model Number |
6909 |
|
Type |
High Performance M100 UHF Long Range Integrated Reader |
|
Physical parameters |
|
|
Dimensions |
260x260x78mm |
|
Net Weight |
4.0Kg |
|
Gross Weight |
4.5Kg |
|
Package size |
40.5*30.5*10.5cm |
|
Shell material |
ABS |
|
Color |
Gray White |
|
Environmental parameters |
|
|
Operation Temperature |
-20~+60℃ |
|
Storage Temperature |
-40~+85℃ |
|
Humidity |
5%~95% RH, Non-condensing |
|
Waterproof Rank |
IP65 |
|
Performance |
|
|
Frequency |
902~928MHz,860~868MHz(frequency customization optional) |
|
Ant. |
9 dBi circular polarization antenna (9 dBi linear antenna optional) |
|
RF Power |
0 - 26dBm |
|
Read Distance * |
0-15m * Effective distance depends on antenna, tag and environment. |
|
Write Distance * |
0-7m * Effective distance depends on antenna, tag and environment. |
|
Read Rate |
400cnt / second |
|
Read Type |
ISO18000-6C(EPC Gen2) |
|
Reading Prompt |
Buzzer |
|
Working Voltage |
DC +9 - 24V, 12W |
|
Work Mode |
Active mode, Answer mode, Trigger mod, Password mode |
|
Communication |
RS232, RS485, WG26, WG34, Trigger, Relay(Optional), RJ45(Optional), WIFI(Optional), POE(Optional),USB(Optional),4G(Optional) |
|
Net |
RJ45 support TCP Client/Server, Modbus, DNS, DHCP. WIFI support TCP Client. 4G support TCP Client. HTTP Protocol(Optional), MQTT(Optional), LLRP(Optional) |
|
SDK |
|
|
SDK |
Support X86 & X64, C++, C#, VB, Delphi, Linux, ARM, Python, NodeJS, QT, JAVA, Android. |
