Description

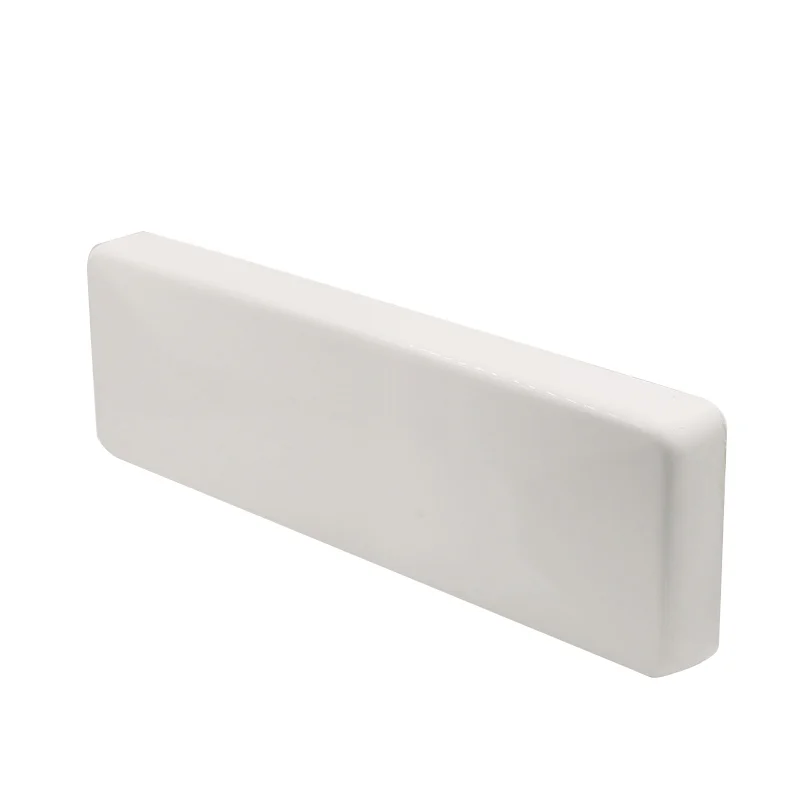

High Gain 12dbi UHF 868MHz RFID Antenna
Product Description
What is the overview of High Gain 12dbi UHF 868MHz RFID Antenna?
Itis a high performance 12dBi UHF Line polarization antenna. It can be widely applied in many RFID application systems such as logistics, terminals, parking lots, shopping malls, toll station, access control, and anti-counterfeit and industrial production process control system.
What is the technical specification of High Gain 12dbi UHF 868MHz RFID Antenna?
1. Pleasing in appearance; 2. Environmental adaptability; 3. Easy installation; 4. Fast and accurate reading speed; 5. High data security; 6. Long distance;
What is the technical specification of High Gain 12dbi UHF 868MHz RFID Antenna?
High Gain 12dbi UHF 868MHz RFID Antenna
Electrical Specifications
Frequency Range
860-960MHz
Bandwidth
100MHz
Gain
12dbi
Horizontal Beam Width
Hor:90°, Vert:32°
F/B Ratio
> 23
VSWR
<1.3
Impedance
50Ω
Polarization
Linear vertical polarization
Max. Power
500W
Connector
N-Female
Lightning Protection
DC ground
Mechanical Specifications
Dimension
580x180x45mm
Weight
1.8Kg
Rated Wind Velocity
60 m/s
Reflector Material
Aluminum alloy
Radome Material
ABS
Operating Temperature
-40~80°C
Suitable Pole Diameter
Φ50-Φ115mm
More Pictures
Related Products
Packaging & Shipping
1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
Trade Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal, D/A, D/P. 2. MOQ: 1pcs 3. Warranty : 1 years
Our Services
Our products have acquired CE, FCC certification and RoHS compliance and NCC, KCC, EK improvement via Taiwan, Korea companies. Our products are with stability, conformity, high performance and competitive price. We have super excellent and experienced R&D team and sales engineer team which are the guarantee to provide our clients with superior products and service as well as OEM/ODM business.
We expect to cooperate with system integrators, strategic partners and product distributors.
