High Current Small Coil Inductive Wireless Power Transfer Wireless Charging Module 24VDC 1.2A Output

Wireless Charging Module
$26.95
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description

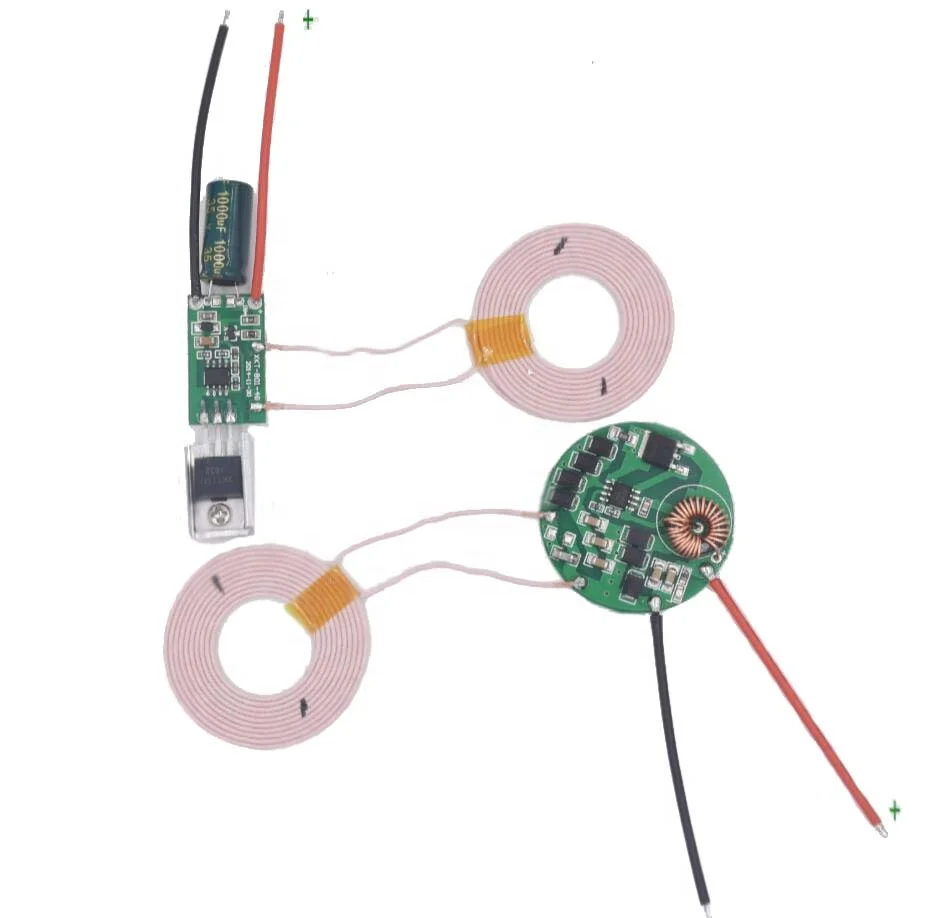

24V1.2A High Current Small Coil Inductive Wireless Power Transfer XKT801-51 Wireless Charging Receiver Magnetic

XKT801-51

The main parameters:

Input voltage 24V
Transmitter module size

17mm*28mm

Transmitting coil outer diameter 43mm coil thickness 2.3mm inductance 14uH
Receiving module diameter 40mm
Receiving coil outer diameter outer diameter 43mm coil thickness 2.3mm inductance 14uH
Receive maximum current

24V1.2A receive output

Use distance 1mm~15mm

Note that the sensing distance must be greater than 5mm, and the overvoltage will be damaged! ! !
