Description

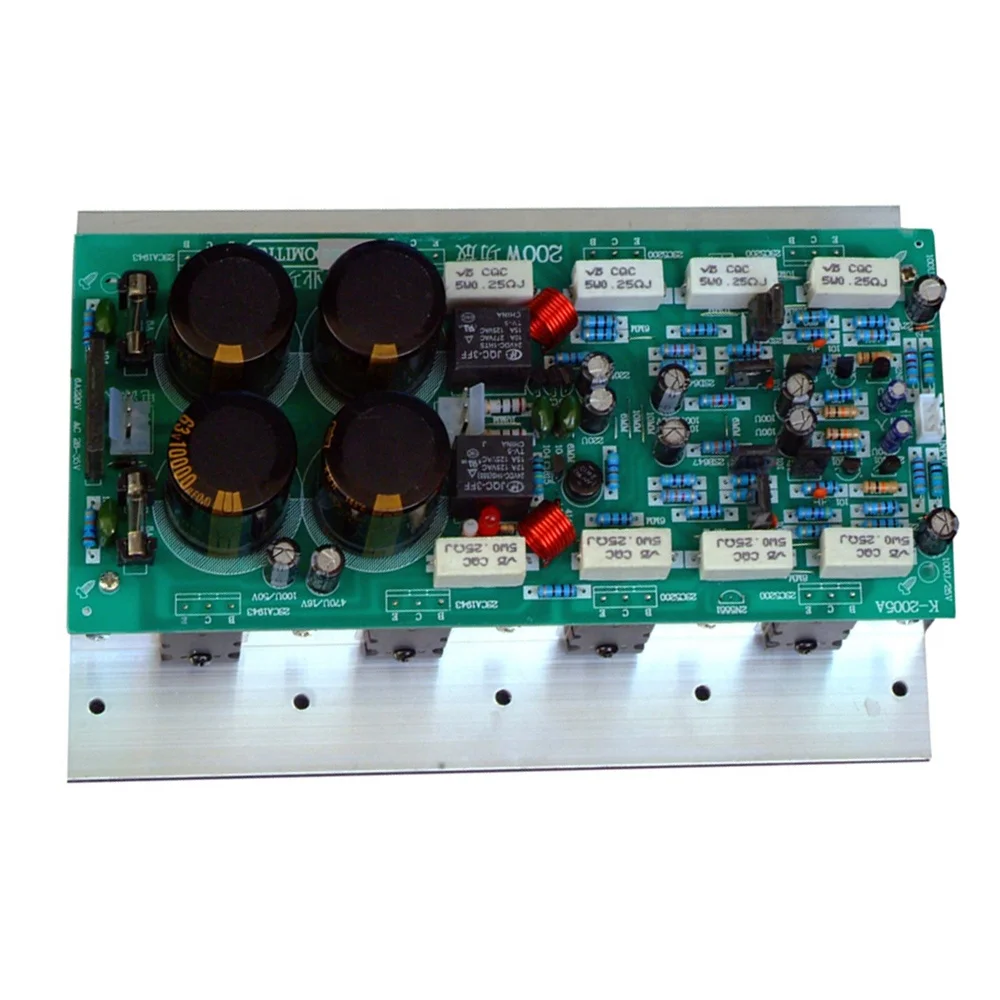

HiFi Fever Peak 200W+200W High Power Audio Amplifier Board with Rectifier Filter Original 5200 1943 Amplifier Board
Product Description
This finished power amplifier board adopts circuit design, high power, good sound quality and minimal distortion! All parameters of the power amplifier board have been strictly tested. As long as the wiring is accurate, the sound can be heard without any debugging by the user. The board comes with a filter and rectifier and a heat sink. Just connect the power transformer and the front stage!
|
Working voltage
|
double group AC AC24-36V recommended voltage: double 30V or double 32V
|
|
Reminder
|
The highest voltage of this board is AC dual 36V, but why don't we recommend using dual 36V transformer? The reason is because the actual mains voltage in each place is not an absolute 220V, which is often higher than 230V. In some places, it even exceeds 240V.
The transformer design is based on the standard 220V voltage input parameters. The actual output between the transformers is about double 35V. This is also for safety considerations. Some people want to squeeze out the power of the power amplifier board and use high voltage without considering the actual situation. Be careful! Because the voltage you actually use is far beyond the permitted range! |
|
Output power
|
200W + 200W
|
|
Tip
|
A good power amplifier board needs a good preamp and a good transformer as support. It is recommended to use a 300W-500W toroidal transformer. If your transformer quality is not good, the sound quality will be greatly reduced! Any questions are welcome to Want
Want consultation! |
Note:
1, The power amplifier board is dual-channel, stereo output board, and it has a heat sink Version 1: 21.5cm * 14.5cm * 8cm Version 2: 21.5cm * 14.5cm * 7cm
2, The push tube is an original genuine tube such as Hitachi, NEC or Shantong. The color of each shipment may be different, sometimes black package, sometimes green package! Same performance!
