Description

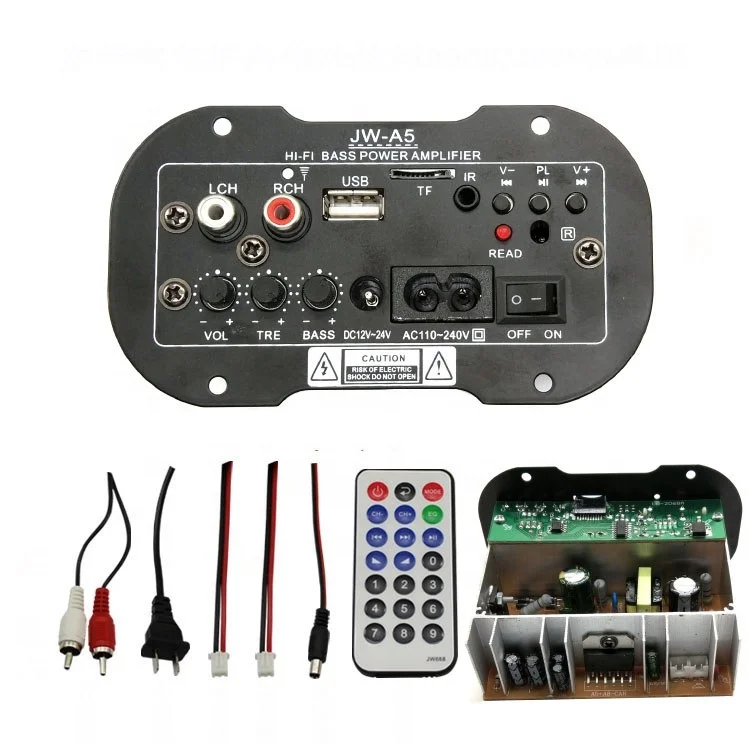

HIFI Bass Power Audio Amplifier Speaker Board 6 inch 8 inch 10 Inch 220V 12V 24V Car Subwoofer Amplifier Board
Product Description
Please note: the switch function is only available under 220V, it is invalid under DC state!
Support 4-8 inches of various speakers, send instructions, the wiring is super simple, the beauties can be, just screw on the speaker and it will sound, no tools are not afraid. Memory card, U disk, BLE stick can play, line input, computer mobile phone can be used. It's also good for home use, and it can also be used in the car, carts, cars, batteries, motorcycles, and Ferrari tractors! ! The original high-power chip, the sound quality is pure and powerful! The battery is very power-saving, and it can be played continuously for at least 10 hours. You can buy six accessories + manual in one step!
Small size and high power, it can sound when connected to the horn, no need to worry about it, just one step, plug in the card, plug in the U disk, imported amplifying chip, the sound quality is very powerful! High working efficiency, power saving, power supply with electric car battery Continuous playback for 12 hours! Supports DC 12V24V and AC 220V. Comes with a line input, which can be connected to a computer or mobile phone. You can buy two power cords, speaker cables, audio cables and remote control, and support USB BLE sticks!
Installation Instructions
|
1
|
External audio input, you can connect MP3 mobile phone and so on
|
|
2
|
USB interface, you can external U disk, card reader or BLE stick
|
|
3
|
T_Flash card slot (cell phone card) format: FAT32 MP3 4G the following
|
|
4
|
External remote control (optional remote extension cable to increase the remote control distance and angle)
|
|
5
|
Up and down, play pause volume size, combination of multi-function keys
|
|
6
|
Power switch 220V is valid for use on the car, please use for car key control
|
|
7
|
Indicator light
|
|
8
|
Infrared receiver head
|
|
9
|
Bass bass volume knobs are respectively
|
|
10
|
Treble output, can only be connected to the treble, strict access to full frequency or bass
|
|
11
|
Direct power (car)
|
|
12
|
AC outlet, with the attached power supply to connect household AC
|
Details Images
