Product
|

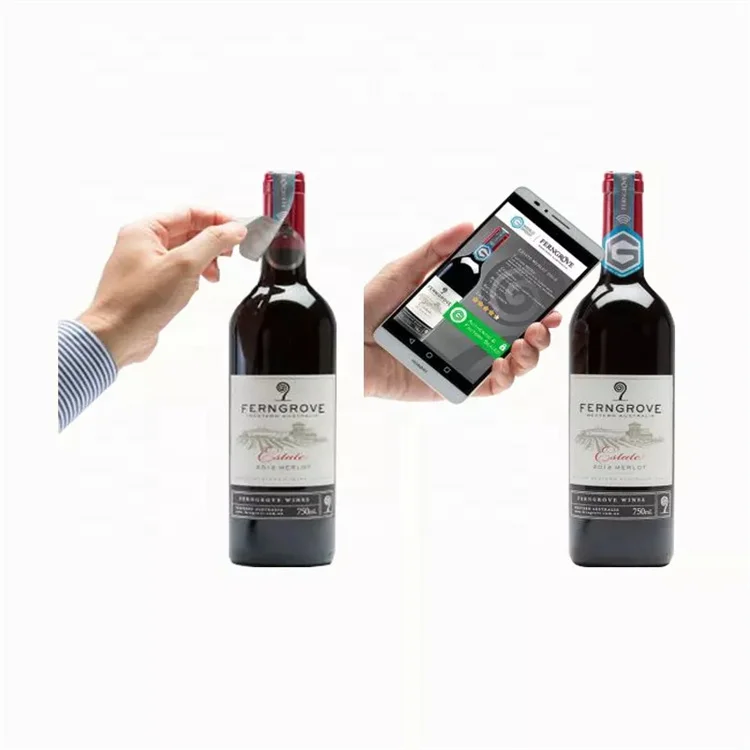

High quality NTAG424 DNA rfid tamper proof label mini sticker tag
|
|
Material
|
Coated Paper, PVC, PET, etc
|
|
Antenna
|
Etching Aluminum
|
|
Dimension
|
10mm, 20mm,30mm,25mm,85.5*54*0.84mm or customized
|
|
Protocol
|
ISO 14443A
|
|
Chip
|
NTAG 424 DNA
NTAG 424 DNA TagTamper
|
|
Features
|
Security; Tamper proof; One time use
|
|
Surface
|
Glossy/Matte/Frosted
|
|
Printing
|
Offset printing, Digital printing, etc
|
|
Craft
|
UID Code: laser printing / Bar code printing / Encoding
|
|
Application
|
Advanced anti-counterfeiting
Secure supply-chain traceability and authorized data access Auditable trail of presence
Authenticated documents Secure Transaction and Retail Payments
|
NXP's New NFC Tag Aims For Highest Security
To address safety risks and opportunities with NFC, NXP has introduced the NTAG 424 DNA, an NFC tag with enhanced levels of security and privacy. The tag uses ISO/IEC 14443-A communication, NFC Forum Type 4 Tag NFC interoperability. Offering AES-128 encryption, it uses 416 bytes of memory with three standard data files, ISO-IEC 7816-4 file system, CC(32 bytes), NDEF (256-byte) and secure data (128-byte)
As the world of connected devices grows rapidly and consumer demands for privacy and security increase, hardware solutions like the NTAG 424 DNA for NFC may become key players in consumer trust.
|
More NFC Chips Optional:
|
||||||||
|
NFC Chip Types
|
Protocol
|
R/W
|
User Memory
|
Chip options
|
||||
|
Type 1
|
ISO14443A
|
Yes
|
96 Bytes
|
Topaz512
|
||||
|
Type 2
|
ISO14443A
|
Yes
|
48-2048 Bytes
|
NTAG213/215/216
MIFARE Ultralight® C, MIFARE Ultralight® EV1
MIFARE Classic® 1K
F08
|
||||
|
Type 3
|
ISO18092
|
Yes
|
2048 Bytes
|
Sony Felica
|
||||
|
Tpye 4
|
ISO14443A
|
Yes
|
Up to 32 K Bytes
|
MIFARE® DESFire® EV1 (2K/4K/8K)
MIFARE® DESFire® EV2 (2K/4K/8K)
|
||||
|
Type 5
|
ISO15693
|
Yes
|
1024 bits/2048 bits
|
ICODE SLIX, ICODE SLI-S
|
||||
Remark:
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
