Description
Product Paramenters

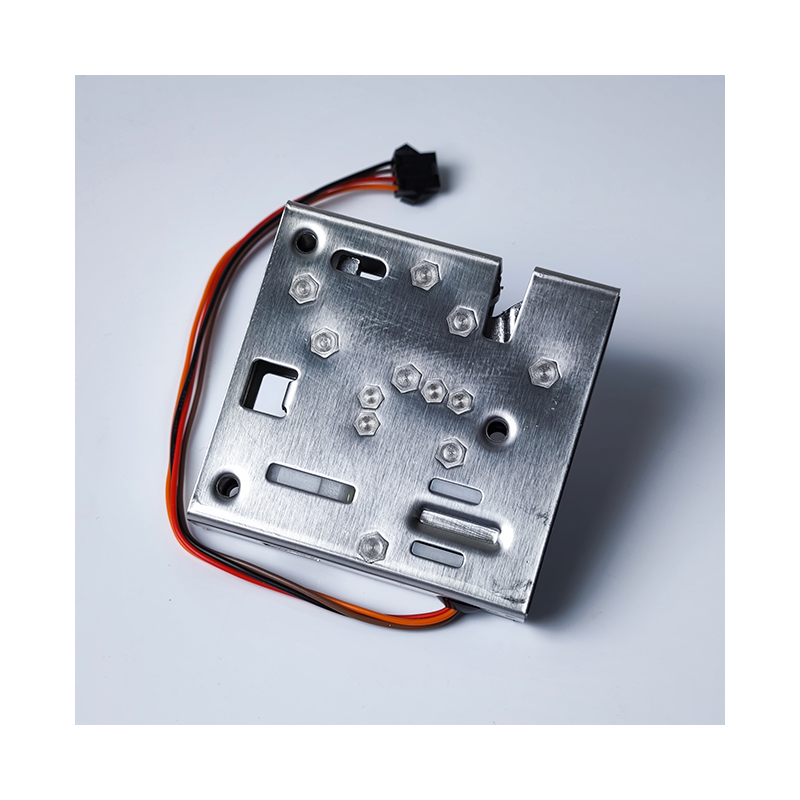

Product Name
Electric Motor lock
Item No.
HLD6920
Material
201 stainless steel
Working Voltage
DC 7V~24V
Working Current
6mA in standby mode; 200mA in locking/unlocking mode
Working Temperature
-20℃~70℃
Reaction Time
Less than 0.2msec
Working Life
200,000 times of open-close with intervals of 30s
Housing Test
Pass 48-hour salt-spraying test
Manner of Working
Open after power on
Working Humidity
5% ~ 95%RH
Signal Detection
Lock status feedback
Emergency Unlock
Two mounts
Relock Type
Auto & Delayed
Certification
CE, ISO9001, ROHS
Product Application
Locker Display Cabinet Express Cabinet
Product Description
Product Description
1.HLD motor lock HLD6920 adopts 201 stainless steel housing, Stable and durable, shock-proof and theft-proof.
2. Dustproof and waterproof, suitable for all kinds of high-end smart cabinets.
3. HLD6920 is suitable for various intelligent control systems. For example, by connecting HLD lock control board, it can make intelligent unlocking possible.
4. It can be unlocked by pulse signal with merely 200mA working current. It will send lock feedback indication after the process of unlocking.
5. Two mounts for convenient mechanical override enables manual release during power failure.
Products Show
201 Stainless Steel Housing.
Sturdy and Stable.
Using Powder Metallurgy Support Block.
High Strength Torsion Spring
ECS is protected by environmental protection glue.
Product Usage
Product Usage Introduction
The unlocking signal is a pulse (the latch will pop-up automatically), and the general current of unlocking signal does not exceed 200mA.
When the electric lock receives the unlock command, the electric motor rotates. The latch spring out of the lock. The unlock status is sent. After the latch spring out, the electric motor rotates back and be ready for next unlocking process. It can be easily locked with a gentle push when necessary.
When the door gets stuck and the lock cannot be unlocked, the motor will invert and automatically get the door relocked after 3 minutes to prevent items from being stolen.
Topological Diagram ( Lock Control System)
We provide a complete set of mature lock control system, and the main control board is connected to the Internet through WIFI, TCP/IP, etc. External LCD display, IC card reading and writing module can be connected. Extend the terminal motor lock through the lock control board.
