H3 ARM A7 Quad Core Orangepi Zero 512 MB + Adapter Board + Shell Orange Pi 512MB Mini Single Board Set--shop.rfid-life.com

Quad Core Orangepi

$48.74
Specification:  Orange Pi Zero 512MB H3+ Shell
Supplier Type:  ODM
Media Available:  Photo
Quantity

Description

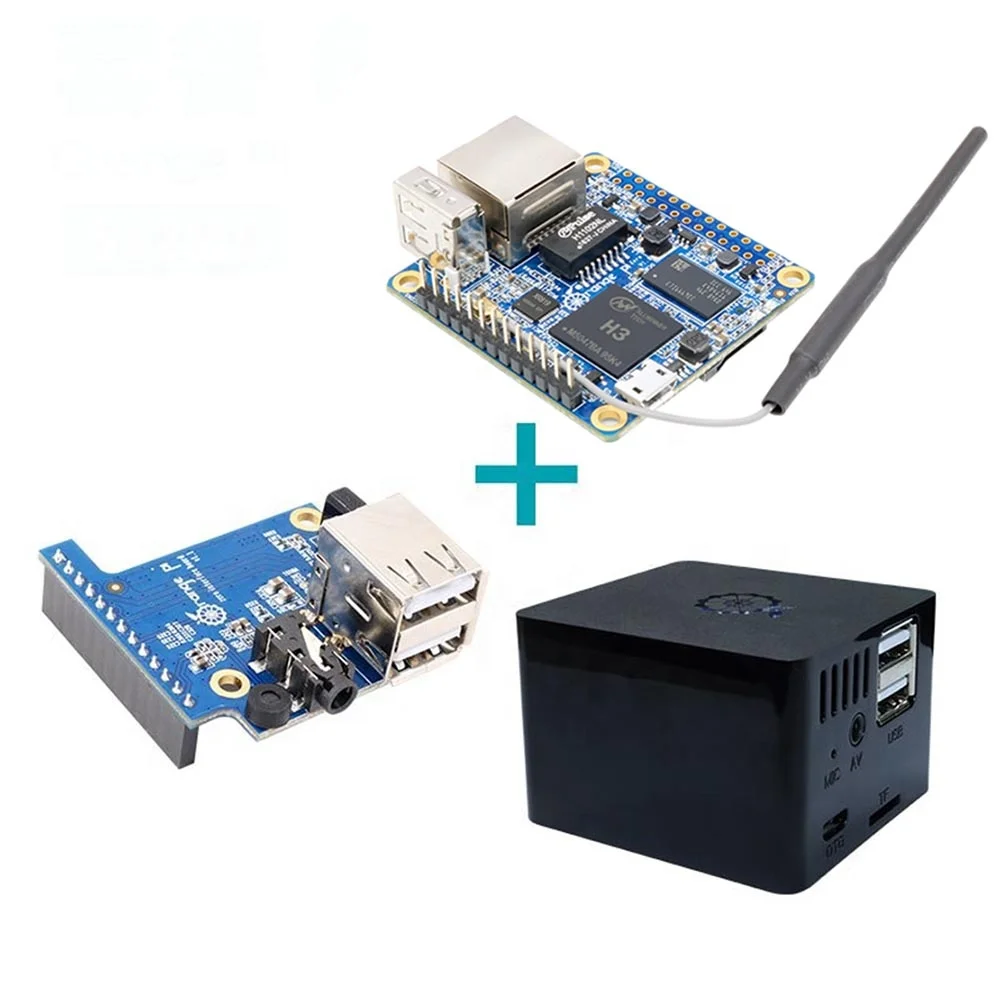

H3 ARM A7 Quad Core Orangepi Zero 512 MB + Adapter Board + Shell Orange Pi 512MB Mini Single Board Set
Product Description

What’s Orange Pi Zero?

It’s an open-source single-board computer. lt can run Android 4.4, Ubuntu, Debian. lt uses the AllWinner H3 SoC, and has 256MB/512MB DDR3 SDRAM(512MB version is Standard version).

What can I do with Orange Pi Zero?

Build…
* A computer
* A wireless server
* Games
* Music and sounds
* HD video
* A speaker
* Android
* Scratch
* Pretty much anything else, because Orange Pi Zero is open source
Specification
Hardware specification
CPU
H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM)
256MB/512MB DDR3 SDRAM(Share with GPU)(Default 512MB version)
Onboard Storage
10class TF card (Max. 64GB)/ 2MB SPI Flash
Onboard Network
10/100M Ethernet RJ45 POE is default off.
Onboard WIFI
XR819, IEEE 802.11 b/g/n
Video Outputs
Supports external board via 13 pins
Power Source
USB OTG can supply power
USB 2.0 Ports
One USB 2.0 HOST, one USB 2.0 OTG
Buttons
Power button
Low-level peripherals
26 Pins Header,
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
GPIO(1*3)Pin
UART, ground
LED
Power led & Status led
Supported OS
Android, Ubuntu, Debian, Armbian
Interface definition
Product size
46 mm × 48mm
Weight
26g
Details Images
