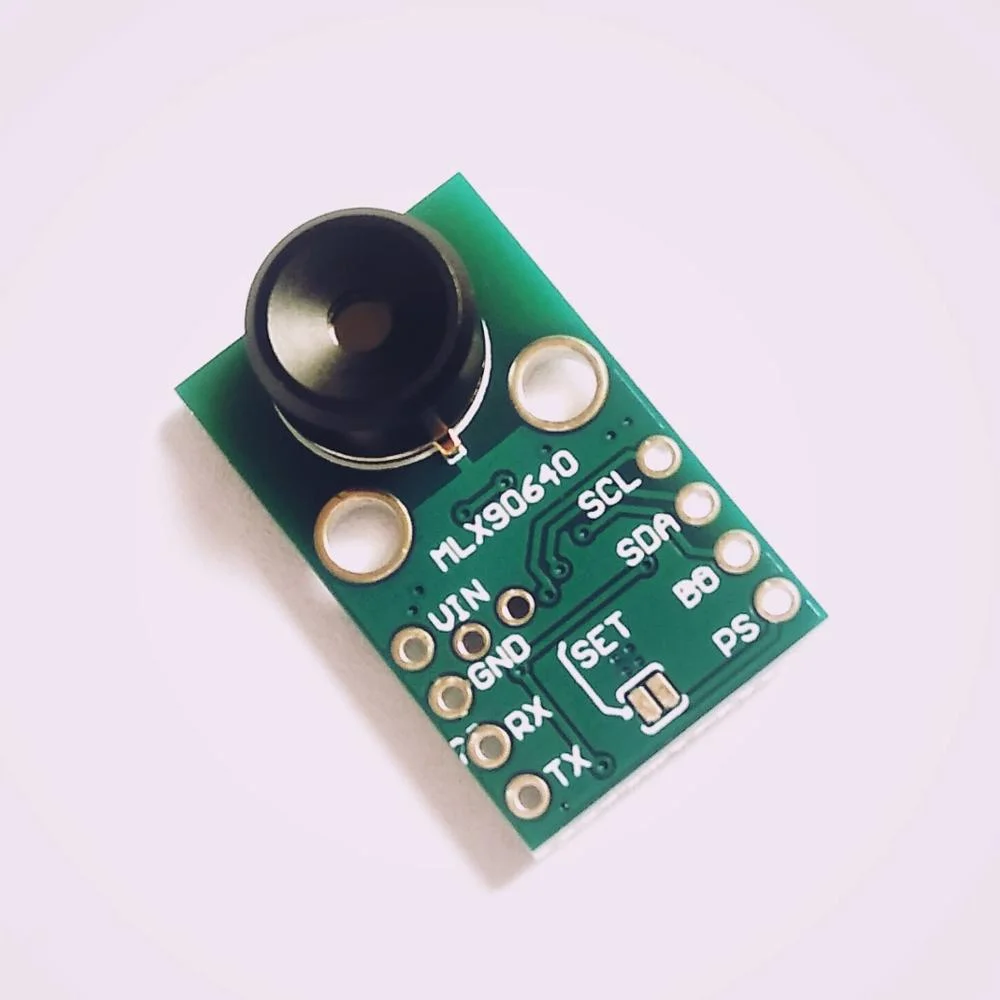

GY-MCU90640 MLX90640 IR 32 * 24 infrared temperature measurement dot matrix sensor thermal imager module

1. With shell, used directly, the sensor is factory calibrated, sensor resolution 24*32 dot matrix

2. Internal lithium battery 1000ma, rechargeable, mciro usb interface, interface voltage does not exceed 5v

3. Response frequency 8HZ, target temperature measurement range -40-----+300 degrees, use environment 0--50 degrees

4. Emissivity can be adjusted from 0.01 to 1.00 range

5. Sensor probe field of view angle, default 35 degrees * 55 degrees MLX90640ESF-BAB probe

6. Screen 2.4 inch lcd 320 * 240 resolution, the screen shows the highest temperature, the lowest temperature, the center point temperature, display each coordinate point.

7. Measurement accuracy ± 2 degrees (test conditions: environment 25 degrees, measurement target: boiling water 100 degrees, distance 30cm, coordinates Guangxi)

8. With screenshot function, you can pause the picture for analysis

9. With the screen color corresponding to the temperature adjustment function, you can set the temperature to display different colors.

10. With USB data transmission interface, later upgradeable system, free update internal system, default system version 1.0

11. Dimensions 80*50*26 (length, width and height mm, excluding raised parts)

12. Finished product with lithium battery, please pay attention to confirm with our customer service in advance whether the logistics method you choose is allowed to bring battery!

13. With USB data transmission interface, the new firmware version automatically outputs data to usb port by default, can directly connect to computer software to display images at the same time (computer software baud rate 115200, 8HZ), can also use the corresponding serial port assistant, computer save image data
