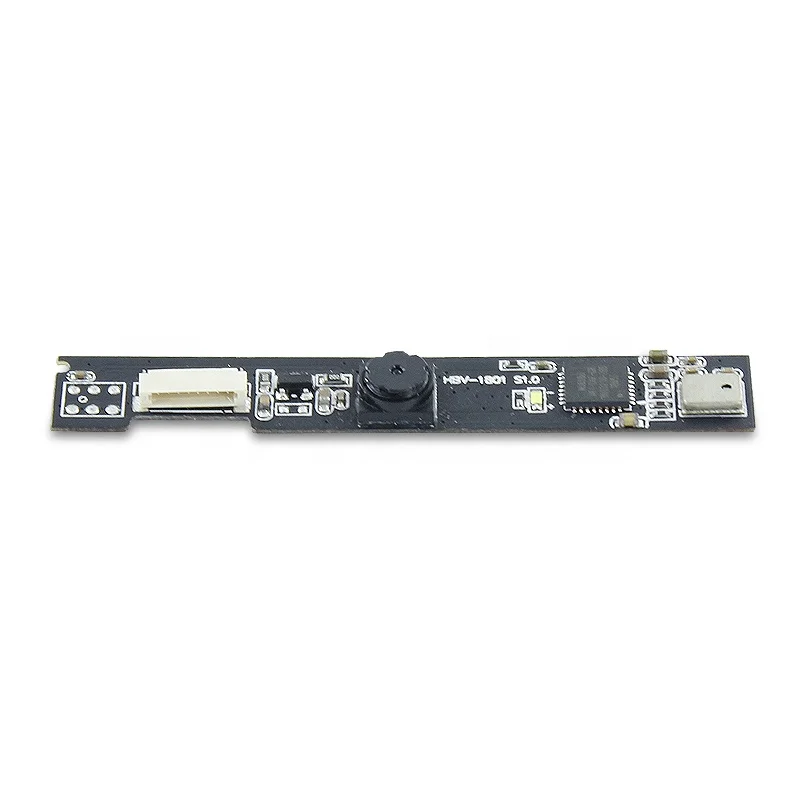

GC0307 0.3 MP Camera Module USB2.0 Drive-Free Advertising Machine Mini Notebook Laptop Webcam Module

Camera Module
$3.91
Quantity
Contact us

Get in touch

Please email us at sale1@rfid-life.com with a detailed overview of your project requirement. So that we can offer you the fastest and best support. You may expect a reply within 24 business hours. – Welcomes Your Comments And Questions.


Sales Department

Phone: +86 18205991243
Whatsapp: +86 18205991243
Telegram: +86 18205991243
Email: sale1@rfid-life.com
Address: No.987,High-Tech Park,Huli District,Xiamen,China


Support Department

Email: support@rfid-life.com


Business Hours

Monday - Friday 9am to 6pm

Saturday - 9am to 12am

Sunday - Closed

Description
GC0307 0.3 MP Camera Module USB2.0 Drive-Free Advertising Machine Mini Notebook Laptop Webcam Module
Product Description
300,000 pixel body computer notebook with built-in camera module Built-in microphone Chip GC0307 For notebook all-in-one USB free drive
Specification
item
value
Module Size
55.7mm x 9mm x 4.05mm±0. 2MM
Temperature (Operation)
-30℃ to 70℃
Temperature (Stable Image)
0℃ to 50℃
Assembly technique
SMT (ROSH)
Focus
Fixed
Object distance
30CM-infinity
Resolution
400LW/PH (Center)
PCB printing ink
Black
Interface
USB 2.0
Power supply
USB bus power
Supply voltage
DC 5V±5%
Maximum Power consumption
250mW
Operating system request
Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc
Sensor
GC0307 (1/7" )
Seneor Package
CSP ,Bare Die .
Maximum resolution
640*480
Sensitivity
3.0mv/ (lux-sec)
Pixel Size
3.2μm x 3.2μm
Maximum Image Transfer Rate
YUY2 160x120 30FPS
YUY2 176x144 30FPS
YUY2 320x240 30FPS
YUY2 352x288 30FPS
YUY2 640x480 30FPS
S/N Ratio
42 db
Max Dynamic Range
69 db
Shutter type
Electronic rolling shutter
AGC/AEC/Whiter balance
Auto
Output Formats
YUY2
Microphone
Support
Lens Construction
2P
F/No
2.8
EFL
2.59mm
FOV
50°
TV Distortion
<1%
Relative llumination (Sensor)
70%
IR Filter
650土10nm
Module Package
Anti-electrostatic tray
Details Images
