G-NiceRF RF2401Pro FCC ID & IC ID Certified 2.4 GHz Transmitter And Receiver nrf24lo1 RF Module



Product Description

Order list



Part number  Quantity
RF2401PRO  2PCS

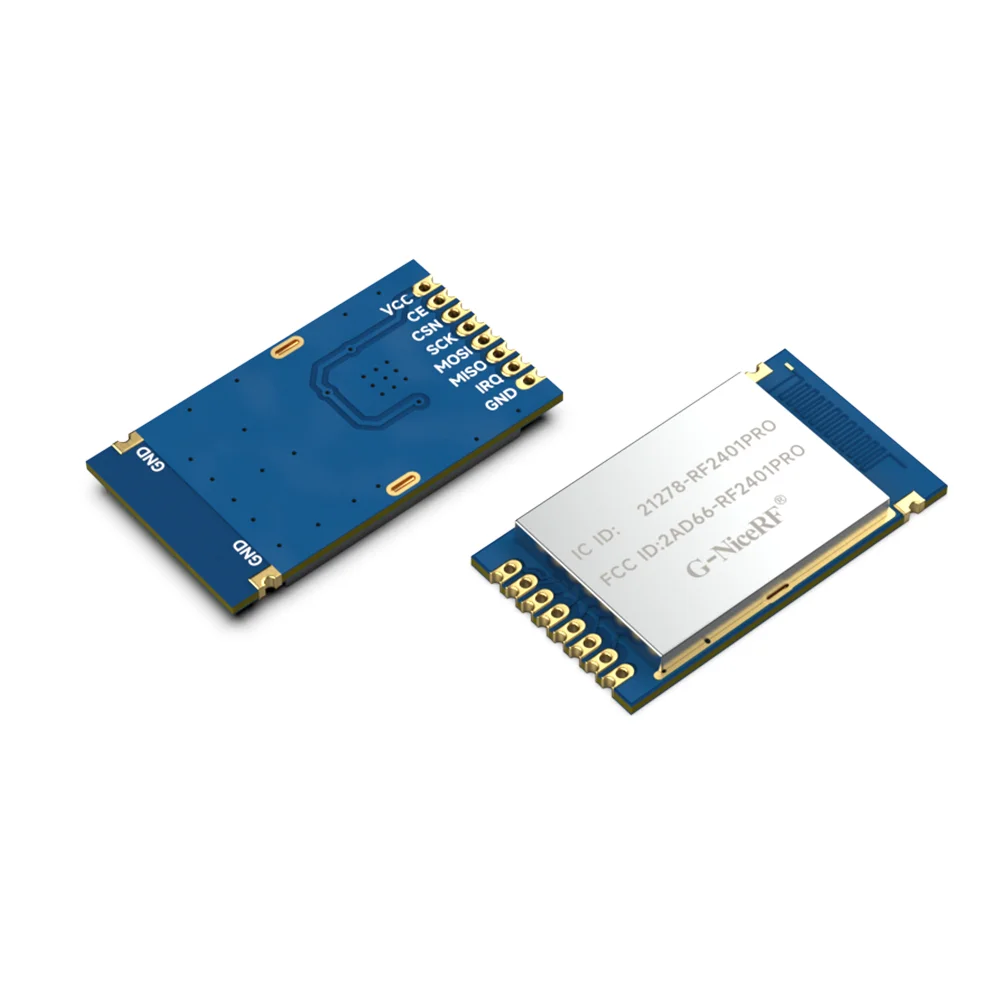

RF2401Pro Module is a high integrated wireless module, which worked in 2.4GHz of ISMbandandadopts Nordic’s RF chip nRF24L01+. RF2401Pro uses lead-free process for production and testing strictly.



RF2401PRO has obtained FCC ID & IC ID certifications.



Module

ROHS

CE

FCC

IC

Shield

RF2401Pro

Yes

NO

Yes

Yes

Yes









Features

  • Frequency Range:2400-2480MHZ

  • Maximum power output:0dBm

  • Sensitivity up to:-94dBm@250Kpbs

  • Data rate:250K,1Mpbs,2Mpbs

  • GFSK Modulation,126 Channel

  • Packet communication mode(FIFO :3-32 bytes)

  • Ultra low power off mode

  • Support functions of frequency hopping

  • Timing wake-up function

  • Internal integrated voltage regulator

  • Operating voltage range::1.9-3.6 V

  • Operating temperature range:-40~+85°C

 Application



  • Wireless remote control

  • Smart Home

  • Toy control

  • Tire Pressure Monitoring

  • Health monitoring

  • Tag reader



Application circuit



The typical schematic circuit is as below:





Electrical Specification

Below parameters is measured at 3.3V






Pin Definition:





Pin No.

Pin Definitions

Description

1

VCC

Connect to VCC(1.9-3.6V)

2

CE

Chip enable

3

CSN

CSN of SPI interface

4

SCK

SCK or SPI interface

5

MOSI

MOSI of SPI interface

6

MISO

MISO of SPI interface

7

IRQ

Interrupt output, active low

8,9,10

GND

Connect power negative



Machinism Dimensions:
