Description
Product Description

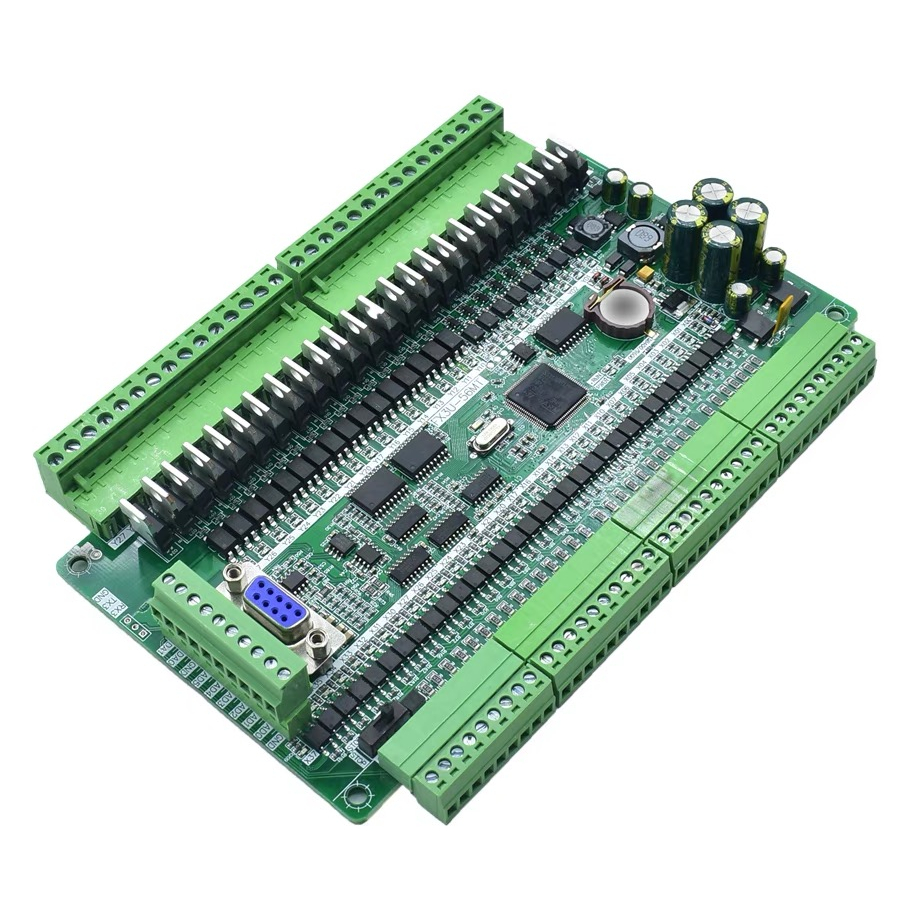

FX3U-56MR Relay PLC Industrial Control Board Programmable 32 Input 24 Output 6AD 2DA and RTC RS485 Modbus RTU Communication2DA
Notes:
RTC means real time clock. RTU meansRemoteTerminal Unit.
Features: 1. Support human-machine interface link, the application is exactly the same as FX3U 2. This PLC adopts industrial-grade 32-bit MCU with strong anti-interference, and its running speed far exceeds the original FX3U. 3. Support ladder programming, download and monitoring. 4. The programming port is the port for program download and communication with the display unit. 5. Write application in ladder language, fit for Mitsubishi GX-Develoer/GX-WORK2 Specification: PLC Transmission Baud Rate: 38400 Input: 32 Point Output: 24 Relays X0-X5 is a high-speed input. It can connect 3 AB encoders. The default is 12K, 100K is optional. 6 analog inputs (default 3 channels 0-10V. 3 channels 0-20MA). 2 channels 0-10V analog output Power-down hold, freely settable, optional CAN communication extension The industrial control board is powered by DC 24V. Do not input AC or 220V voltage
