Features:
1. 100% brand new and high quality.
2. Small body and stable performance.
3. This module is programmable and can realize thousands of functions.
4. Work performance is stable and reliable.
5. Built-in timing circuit can effectively ensure long-term operation of the module.
Specification:
Condition: 100% Brand New

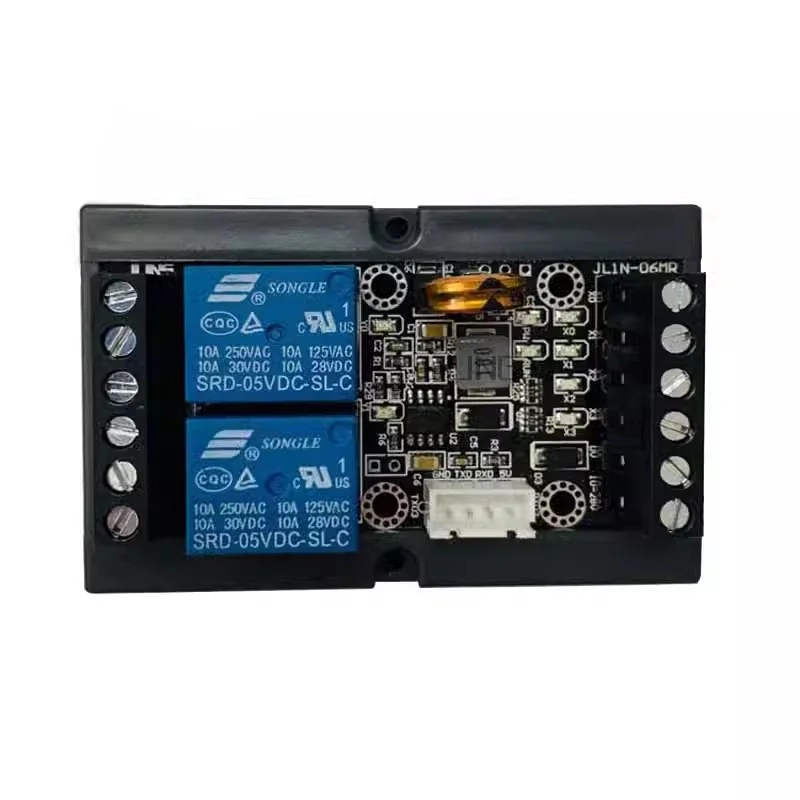

Model: FX1N-06MR
Power Supply: 10-28VDC
Weight: Approx. 74g / 2.6oz
Function:
1. Turn on the power, the relay 1 is closed after N seconds of closing; then the relay 2 is closed after N seconds of closing.
2. Turn on the power, the relay 1 is turned off after N seconds of closing; then the relay 2 is turned off after N seconds, and then cycles.
3. When the power is turned on, the relays 1 and 2 are not activated. When there is a signal or a button is triggered, the relay 1 is turned off after N seconds is closed; then the relay 2 is turned off after N seconds and then turned off until the next trigger, repeating the same action. By programming the signals 1, 2, any control of the relays 1 and 2 can be achieved.
4. When signal 1 has a signal, relay 1 is closed and relay 2 is turned off; When signal 2 has a signal, relay 1 is turned off and relay 2 is closed.
6. Only the NPN sensor signal can be connected, and the sensor signal can be programmed to realize any control of the relay.
7. When signal 1 has a trigger, control relay 1; when signal 2 has a trigger, control relay 2.
8. Turn on the power, control the motor to rotate for N seconds, then reverse N seconds, and cycle.
9. When the signal 1 has a signal, the motor is controlled to rotate forward; when the signal 2 has a signal, the motor is reversed.
The setting method is as follows: Click the + sign in front of the parameter in the engineering sequence data list, the PLC parameter will appear. Double-click the PLC parameter, the parameter setting interface will appear. In the parameter setting interface, the memory capacity can be set from 8000 to 2000.
