Description
Product Description

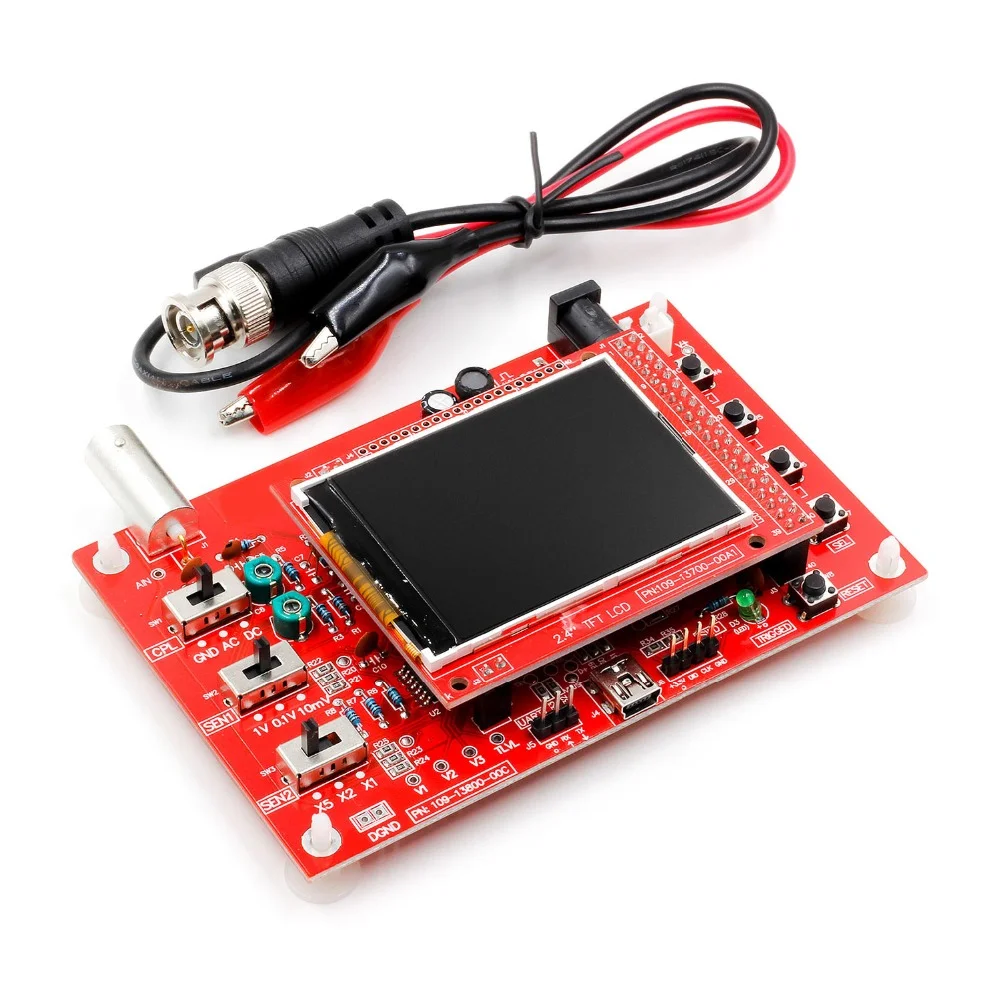

Fully Assembled Digital Oscilloscope LCD Display with Alligator Probe Test Clip Acrylic Case DIY Open Source





Product selling points:

1.Compact product

2. Widely used

3. Suitable for DIY people

4. Long service life

5. Various options



Product parameters:

Maximum real-time sampling rate: 1Msps

Precision: 12 bits

Sampling buffer depth: 1024 bytes

Analog bandwidth: 0-200KHz

Vertical sensitivity: 10mV/Div-5V/Div (1-2-5 progressive mode)

Adjustable vertical displacement with instructions

Input Impedance: 1MΩ

Maximum input voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)

Coupling modes include DC/AC/GND

Horizontal time base range: 10μs/Div-50s/Div (1-2-5 progressive mode)

Easy capture of torque waveforms with Auto, Normal, and One-Time modes

Available rising or falling edge trigger

Adjustable trigger level position with instructions

Previously observable trigger waveform (negative delay)

Waveform display can be frozen at any time (hold function)

Self-contained 1Hz/3.3V square wave test signal source
