Description

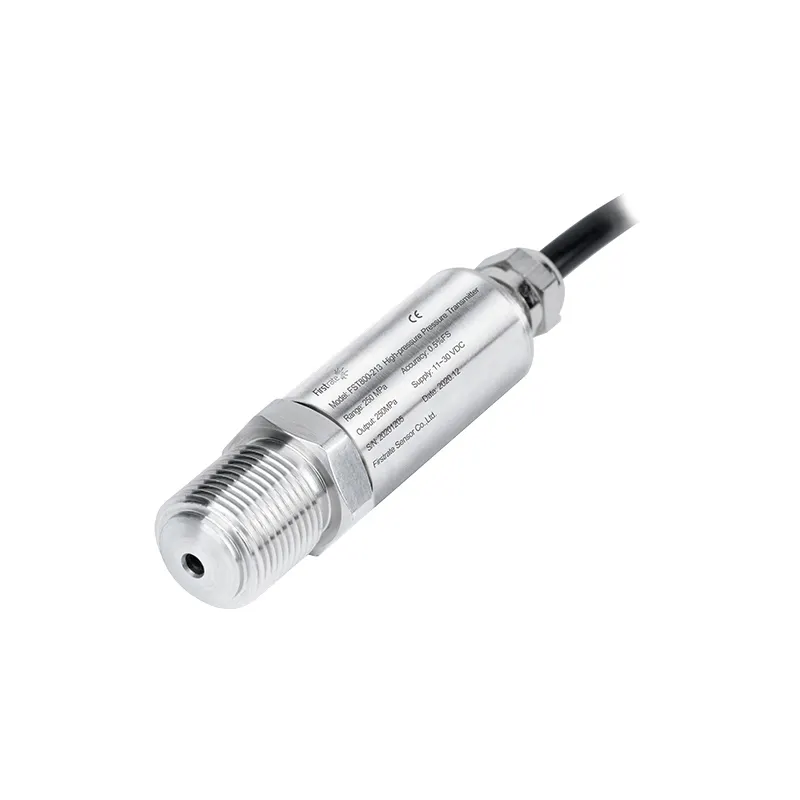

FST800-213 Firstrate 2022 Hot Product High Accuracy 2500bar 4 20mA ultra High Pressure Sensors
|
Range |
0~750 ... 6000Bar (table voltage) |
|
Output signal |
4~20mA, 0.5~4.5VDC, 0~5VDC, 0~10VDC |
|
Accuracy |
±0.3%FS, ±0.5%FS |
|
Signal line specification |
2wire (4~20mA), 3wire (0.5~4.5VDC, 0~5VDC, 0~10VDC) |
|
Power supply voltage |
9~30VDC (4~20mA, 0~5VDC), 5VDC (0.5~4.5VDC), 15~30VDC (0~10VDC) |
|
Medium temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+125℃ |
|
Temperature compensation |
-20℃~+85℃ |
|
Long-term stability |
≤±0.2%FS/year |
|
Allow overload |
150%FS |
|
Destruction |
300%FS (extreme pressure 10000Bar) |
|
Impact (11ms) |
100G |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Full temperature temperature drift |
±0.02%FS/℃ |
|
Pressure interface |
M20*1.5, G1/2 (customized) |
|
Electrical connections |
M12 connector, go directly to the line, Packard connector, big/small Hesman (customized) |
|
Protection level |
IP65 |
|
Material |
17-4PH (probe) +304 stainless steel electronic warehouse |
