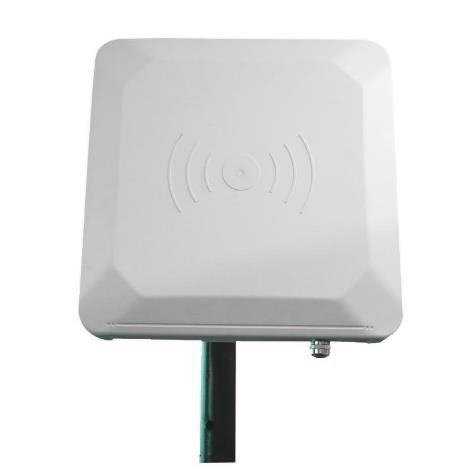

what is Free SDK 868Mhz UHF RFID Industrial Mat Reader UHF RFID Industrial Reader ?
It is a high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces and ease installation. It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control and many other applications.
Free SDK 868Mhz UHF RFID Industrial Mat Reader UHF RFID Industrial Reader feature?
* Designed with low power dissipation and high integrated RFID chip solution
* Support EU 840~868MHz, US 902~928MHz working frequency (or Customized)
* Support EPC Global UHF class 1 gen2 / ISO18000-6C protocol RFID tags.
* Support temperature sensor RFID tag, moisture Sensor RFID tag and some other sensor RFID tags.
* Optimized multiple tags inventory algorithm, speed is more than 100 per second
* FHSS or Fix Frequency transmission
* RF output power up to 30dBm (1dbm step adjustable)
* Support command, polling and trigger mode
* Support EPC, TID and USER inventory in independently or conjunctively
* Support IAP firmware upgrading
* Low power dissipation with single +12 DC power supply
* Support USB,RS232,RS485,Weigand,RJ45(TCP/IP, UDP) and WIFI, 4G at option
* Built-in 8 dBi circular polarized antenna with effective distance up to 20 m (adjustable)
* Provide DEMO and SDK for development
* Support development based on Windows, Android, Linux etc. and C, C#, JAVA etc.
What is the technical specification of Sysiot Free SDK 868Mhz UHF RFID Industrial Mat Reader UHF RFID Industrial Reader?
Main Function |
||
Protocol |
EPC Global UHF Class 1 Gen 2 / ISO 18000-6C |
|
Support tags |
Normal tag; Temperature sensor tag; Moisture sensor tag |
|
RSSI |
Support |
|
RF Parameter |
||
Frequency |
840~960MHz at option; Fixed or FHSS |
|
RF output power |
30dBm±1dB(MAX) |
|
Step power |
1dBm |
|
Signal width |
<250KHz |
|
Antenna |
Built-in 9dBi circular polarized antenna |
|
Tag Reading |
||
Reading distance |
≥15m |
8dBi circular polarized antenna, 30dBm, Standard E41 testing card |
Writing distance |
≥4m |
|
Multiple tag reading speed |
≥100pcs/s |
|
Communication Parameter |
||
Interface |
USB, RS232, RS485, Weigand; RJ45(TCP/IP, UDP), WIFI, 4G at option |
|
Baud rate |
115200bps |
|
Power Parameter |
||
Operating Voltage |
DC 12.0V (+9~24V) |
|
Operating Current |
≤600mA / DC12V |
|
Standby Current |
≤200mA / DC12V |
|
Working Environment |
||
Operating Temperature |
-20~+55℃ |
|
Storage Temperature |
-30~+85℃ |
|
Operating Humidity |
<95%RH (+25℃) Non-condensing |
Interface Definition
Comment |
|
Red |
+12V |
Black |
GND |
Yellow |
Wiegand DATA0 |
Blue |
Wiegand DATA1 |
Purple |
RS485 R+ |
Orange |
RS485 R- |
Brown |
GND |
White |
RS232 RXD |
Green |
RS232 TXD |
Grey |
Trigger input (TTL level) |
Built-in Antenna Specification
Electrical Specifications |
|
Freq Range |
865~940MHz |
Gain |
8dBi |
Horizontal Beam width |
65±5º |
Vertical Beam width |
70º |
F/B Ratio |
≥10dB |
VSWR |
≤1.3 |
Impedance |
50 Ω |
Max. Power |
50W |
Polarization |
Circular polarization |
Waterproof class |
IP65 |
Lightning Protection |
Direct Ground |
Mechanical Specifications |
|
Dimension |
190*190*54mm |
Weight |
0.9kg |
Rated Wind Velocity |
30m/s |
Reflector material |
Aluminum |
Radome Color |
White |
Radome material |
ABS |
Operating temperature |
-40~80 º |
