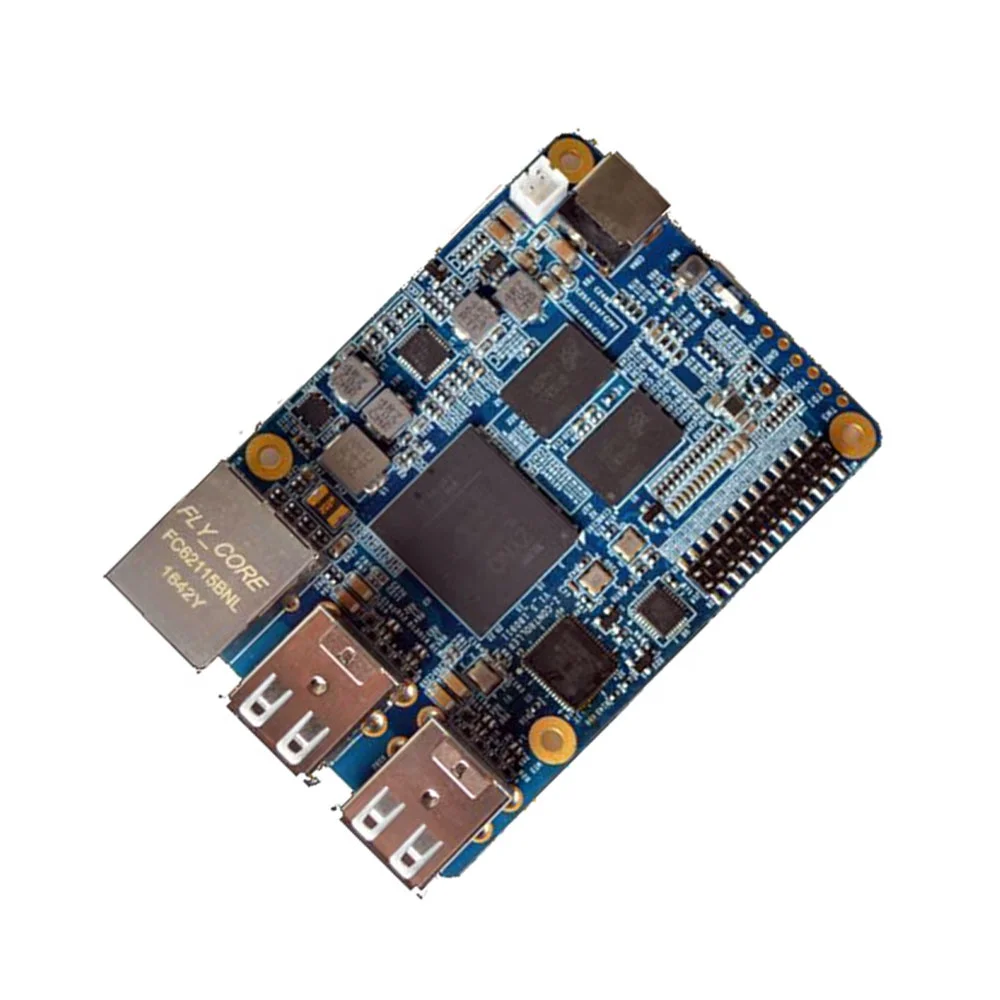

HEX ZYNQ 7020 FPGA Development Board Raspberry Pi Edition ZEDBOARD XILINX FPGA Kit
Product Description
Product introduction:
Litchi sugar HEX development board is designed for Xilinx Zynq series of FPGA XC7Z020. It provides a simple and easy-to-use, cheap and easy-to-expand development board for Zynq FPGA users and Zynq FPGA learners.
2.1 Introduction of main chips: 2.1.1 Main chip: XC7Z020-1CLG484 The Zynq®-7000 SoC family integrates the software programmability of the ARM® processor with the hardware programmability of the FPGA for not only critical analysis and hardware acceleration, but also high CPU, DSP, ASSP and mixed-signal functions on a single device . This development board uses chip specific features: PS section: Cortex-A9, dual core 667MHz, L1: 32KB instruction space, 32KB data space per core, L2: 512KB, on-chip memory space 256KB. PL part: Artix-7 FPGA, programmable logic unit: 85K, LUTs: 53200, Block RAM: 4.9Mb 2.1.2 Memory Chip: MT41K256M16TW-107 Capacity: 512MB; 32Meg x 16 x8 banks. DDR3L SDRAM (1.35V), upward compatible 1.5V 2.1.3 NAND FLASH Memory Chip: MT29F2G08ABAEAWP 1) ONFI 1.0 interface standard 2) SLC technology 3) Structure: Page size x8 2112 bytes (2048+64bytes) Block size 64 pages (128K + 4K bytes) Plane size 2 planes x 1024 blocks per plane Device size 2Gb: 2048 blocks 2.1.4 ULPI Bridge: USB3320C The USB3320 is a highly integrated, full-featured Hi-Speed USB 2.0 transceiver based on the Microchip ULPI interface
2.1.5 USB HUB & 10/100 NIC chip: LAN9514-JZX USB Hub: 1 x upstream USB2.0 PHY, 4 x downstream USB2.0 PHY Network card: Integrated MAC and PHY with support for 10BASE-T and 100BASE-TX
3, lychee sugar HAX development board use: 3.1 Routine application Method 1: Write the BIN binary file to the SD card. Power on loading; Method 2: The Vivado project compiles the generated .out file and downloads it via JTAG; Achieve the effect: The LED light is constantly flashing. The other one is controlled by the button.
The process is as follows: 1) New project under ISE: 2) Instantiation 3) Launch SDK 4) Application Project
