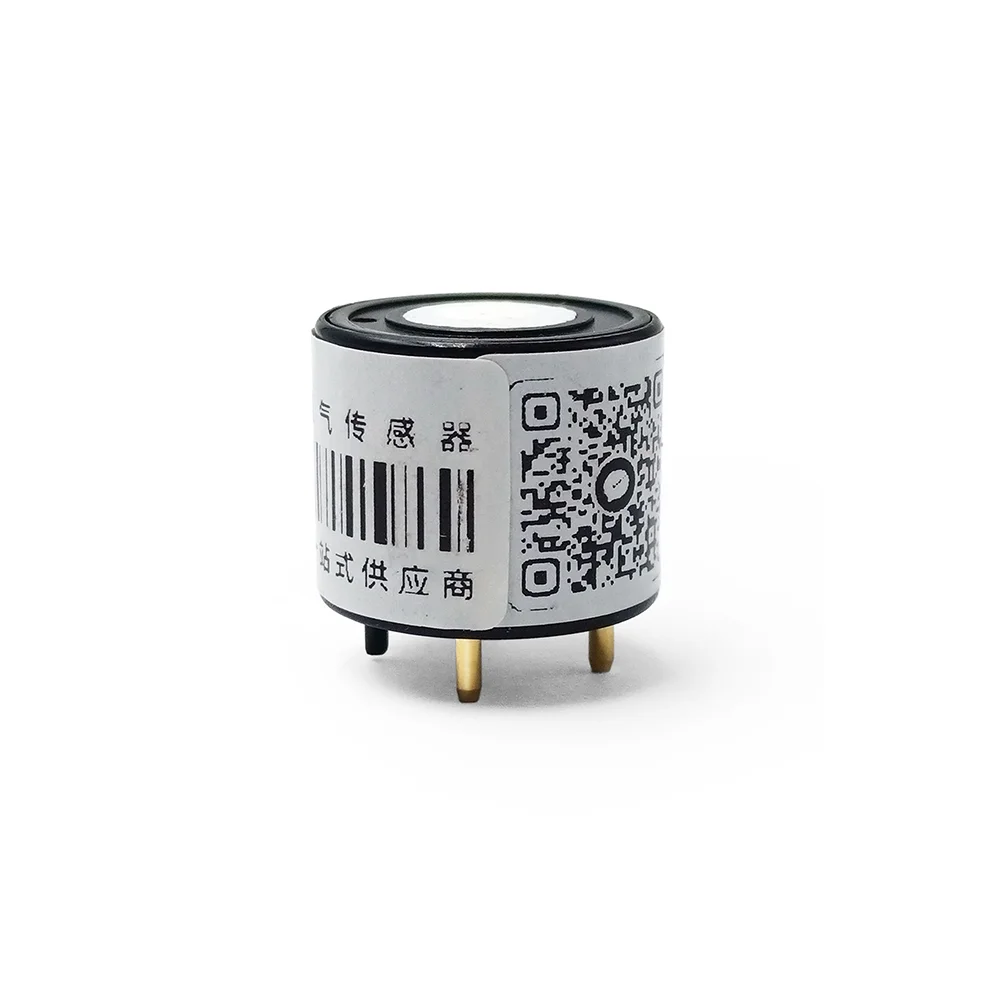

Hydrogen Sensor
FS02501 is a fuel cell type electrochemical sensor, the reduction reaction occurs on the working electrode and the opposite electrode, and the charge is released to form a current, the current generated is proportional to the concentration of hydrogen and follows Faraday's law, and the hydrogen concentration can be determined by testing the size of the current.
Specification
|
Specification
|
Parameter
|
|
Detected Gas
|
Hydrogen
|
|
Detection Principle
|
Fuel Cell electrochemistry
|
|
Solutions
|
0～1000ppm
|
|
Detection Accuracy
|
Maximum error ≤ ±3% reading
|
|
Response Time
|
T90 ≤10s
|
|
Operating Voltage
|
DC 3.7 ~ 5.5V
|
|
Operating Current
|
＜10mA (@5V Power Supply)
|
|
Warm-up Time
|
3 mins
|
|
Detection Frequency
|
Default update rate is once per second
|
|
Output Mode
|
UART(3.3V_TTL Level)
|
|
Modbus-RS485 （Reserved)
|
|
|
4~20mA、0~5V、0~10V (customizable)
|
|
|
Service Life
|
1 Years (in the air)
|
|
Size
|
32.3x32.3x16.5 mm
|
|
Operation Temperature
|
-30~50℃
|
|
Operation Humidity
|
0%~95%RH (No Condensation)
|
|
Storage Temperature
|
-20℃~60℃
|
|
Storage Humidity
|
0~95%RH (No Condensation)
|
|
Pressure Range
|
800~1200 mbar
|
Features
* Using high stability gas sensors and high-performance microprocessors.
* Supports UART output and Modbus-RS485 output, which is convenient to use.
* By adopting precise automation calibration and testing equipment, the accuracy and consistency of data are guaranteed.
* High sensitivity, stability, and resolution.
* Excellent anti-interference ability with temperature compensation.
* Outstanding linear output.
* Low power consumption and long service life.
Dimensions:
Unit: mm, Error≤0.1 mm
Application
