Description
Product Description

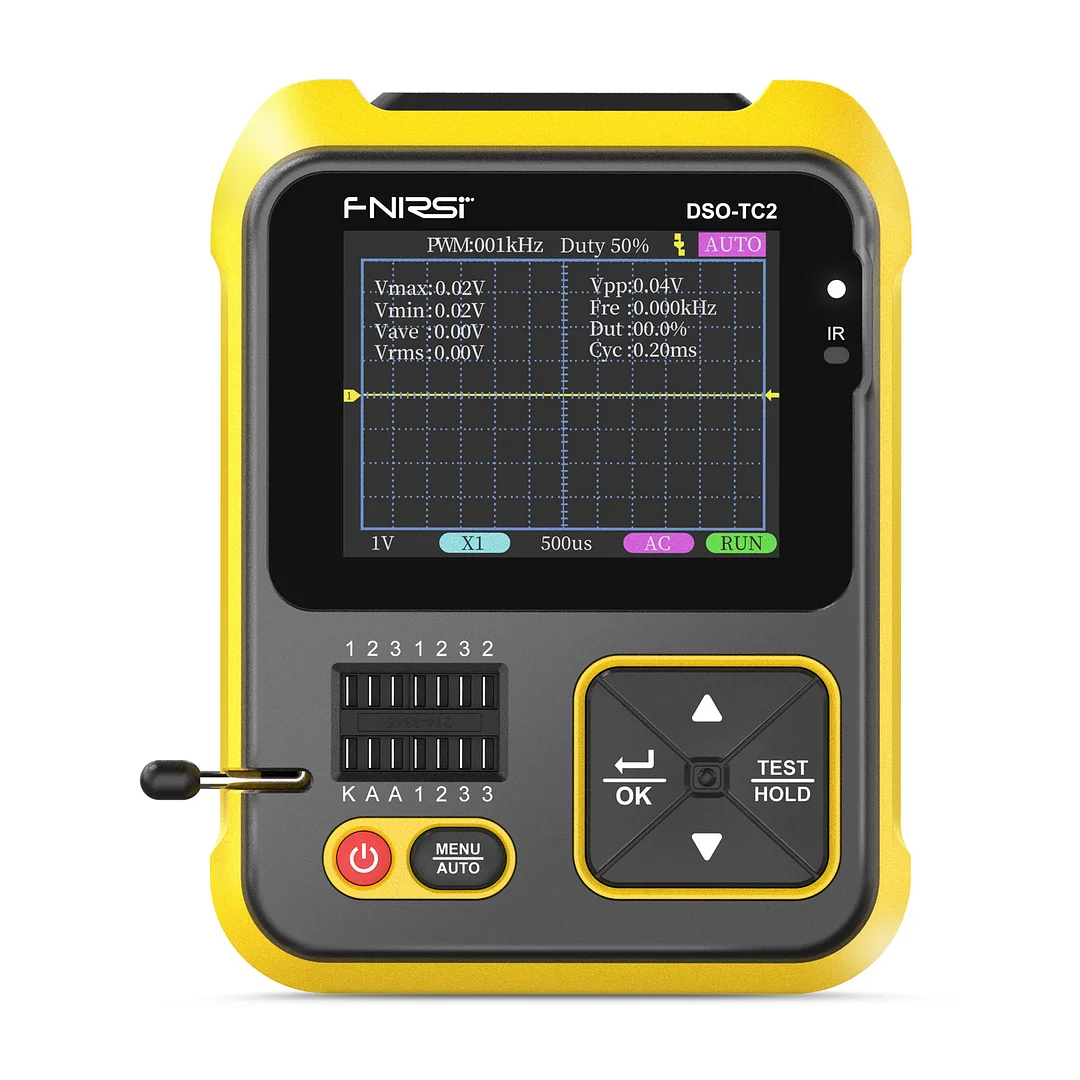

FNIRSI DSO-TC2 Digital Oscilloscope Transistor Tester Function Signal Generator Three/TwoIn One Multi-function Tester
Brief:
TC2 ingeniously integrates digital oscilloscope, electronic component tester, PWM signal generator and other functions into one.Equipped with large-size color dot matrix TFT display.Built-in rechargeable lithium battery.Bring more practical functions to users with a small size,Also has good portability.
Feature
1:TC2 has various working modes such as oscilloscope and component tester.Each time you click the power button, it will enter the mode selection interface.Press the [Up] and [Down] keys of the direction keys to select,Select ''Mos Test'' item, press[OK]key to enter component tester mode;Select the ''Oscilloscope'' item, press[OK]key to enter the oscilloscope mode. 2:''Mos Test'' mode can test various types of transistors, and can identify device type, pin polarity, hFE, turn-on voltage, junction capacitance; can test capacitance, resistance, inductance components, etc. 3:TC2 is especially suitable for fast pairing of transistors, identification of mixed surface mount and wordless components, and preliminary screening of small batch components. 4:''Oscilloscope'' mode to test the signal waveform of the circuit.Support online operation with computer, you can refresh the official firmware by yourself and complete the upgrade. 5:It is hoped that FNIRSI-TC2 can make the study and work of the majority of users more efficient and interesting.
Package include
Standard: DSO-T2 Tester*1 Type-C charging cable*1 Test groove*3 Ordinary probe*1
Upgrade: DSO-T2 Tester*1 Type-C charging cable*1 Test groove*3 Ordinary probe*1 10 times probe *1 Probe adapter*2
