Product Description

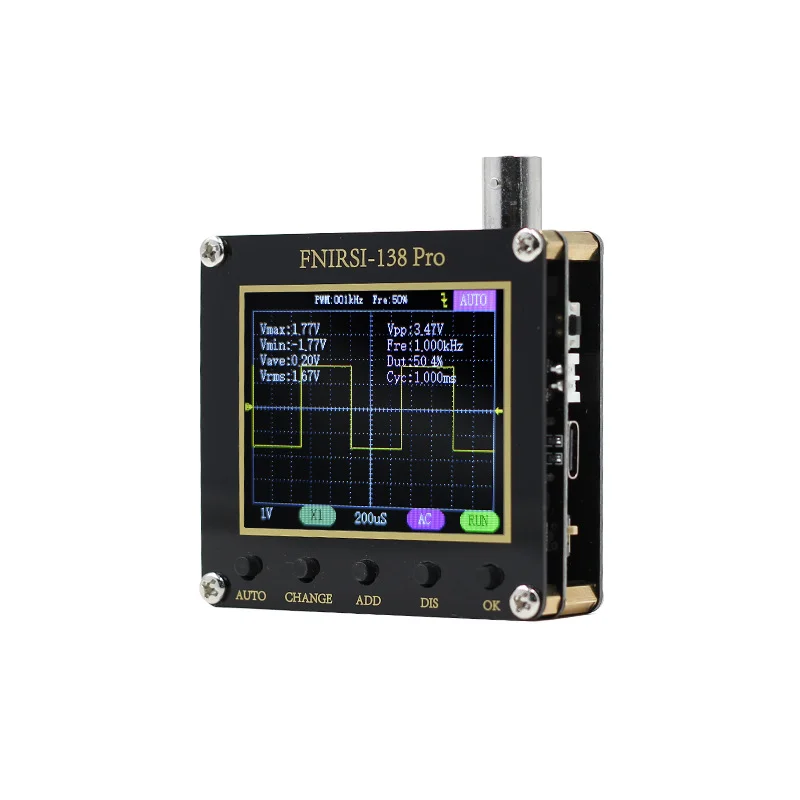

FNIRSI 138pro Multi-function Oscilloscope 2.4 Inch Display Digital Oscilloscope One Button Auto Adjust PWM Square Waves Output
Features:
Portable Oscilloscope: Compared with traditional oscilloscopes,this oscilloscope with smaller size and more suitable for carrying around.
One Button Auto Adjust: One button AUTO setting all parameters and quick waveform measurement. Long press AUTO button to quick calibration baseline.
3 Trigger Modes: The singles trigger mode for tests unexpected non-periodic signals, the automatic trigger modes for test period analogs signals and normal trigger is for tests digital logic signals.
PWM Square Waves Output: This oscilloscope with the PWM square waves output function, 0-80kHz frequency ranges and 0-100% duty cycle.
Wide Applications: This oscilloscope is suitable for car repairing, DIY, home appliance maintenance, experiment teaching, etc.
Specifications:
Material: PCB
Type: with P6100(10x probe), with battery(1250mAh)
Sampling rate: 2.5MS/s
bandwidth: 200KHz
Voltage ranges:
X1: ±40V(Vpp:80V)
X10: ±400V(Vpp:800V) (only type3&4)
Trigger modes: Single, Automatic, Normal
Coupled mode: AC/Direct current
PWM output: 3.3V
Frequency: 0-80kHz
Duty cycle: 0-100%
Package size: 65 * 60 * 18mm / 2.6 * 2.4 * 0.8in
Package weight:72g / 2.5ounce
Packing list:
1 * Oscilloscope
1 * P6100 Probe
