Description
Product Description

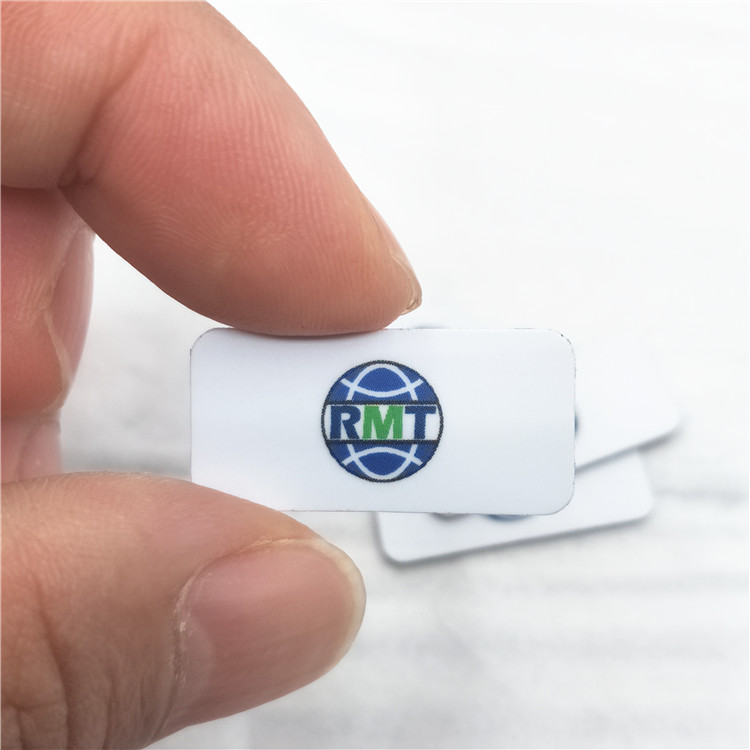

10x20mm Flexible cheap Small NFC Tag for small items applications
The smallest NFC adhesive Tags, with chip, compatible with all devices, waterproof, dimensions 10 x 20 mm / 0.5 x 0.7"
Ideal for all connection, smart poster and general NFC uses
The new Midas tags have an antenna size of 8 mm by18 mm and a die-cut size of 10mm by 20mm. The tags have 144 bytes of memory and
comply with the NFC Forum's Type 2 tag requirements.
Ideal for all connection, smart poster and general NFC uses
Product Description
this is a specialist tag which is thinner and more delicate than the other NFC sticker. The difference between this wet inlay
version and the clear sticker is that the wet inlay version only has a single side of plastic whereas the clear sticker sandwiches
the antenna between two layers of plastic. This means that the clear sticker is stronger and the antenna/chip is protected, sealed
and waterproof. However, the extra layer of plastic makes it thicker.
It is recommended that this wet inlay version could use for print lamination, product integration or similar purposes where the
thickness is important.
Please take care when peeling this stickers from the backing paper and attaching to products. The antenna does not have the same
as standard NFC stickers
Midas tags are "ideal for NFC tagging of products with space restrictions, such as electronics and cosmetics, as well as "to link
small objects with cloud services".
"Due to its small footprint, the tag can be easily attached to electronics and various accessories allowing for a unique
identification of the object while at the same time granting access to a broad range of services and options residing in the
cloud,
"The Midas NFC tag is also well suited for applications where inlays are embedded with limited space available for housing such as
electronics pairing, NFC- pairing, brand authentication, toy figures, and key fobs."
Dimensions
* Antenna size 8 x 18 mm / 0.4 x 0.7"
* Die-cut size 10 x 20 mm / 0.5 x 0.7"
All our NFC Tags are tested before shipping. NFC Tags are new, empty and rewritable.
Chips have an available capacity of 144 bytes and are compatible with every NFC device.
These NFC Stickers are the 'Midas' Smartrac NFC Tags, very small NFC and with high performance. They are made of transparent PVC,
which make them waterproof to rain and spray
Specification
item
|
value
|
Place of Origin
|
China
|
Guangdong
|
|
Model Number
|
Small NFC Tag
|
Type
|
Small NFC Tag
|
Special Features
|
Other
|
Network
|
None
|
Application
|
Indoor
|
Color
|
White
|
Prototype
|
ISO14443A
|
Frequency
|
13.56MHZ
|
NFC
|
Type 2 complaint
|
Product name
|
Small NFC Tag
|
Application
|
small nfc application
|
Material
|
Paper
|
Keyword
|
Small NFC Tag
|
Function
|
NFC application
|
Size
|
10x20mm
|
Packing & Delivery
10x20mm Small NFC Tag for small items applications existing stock samples for test function only
