Description

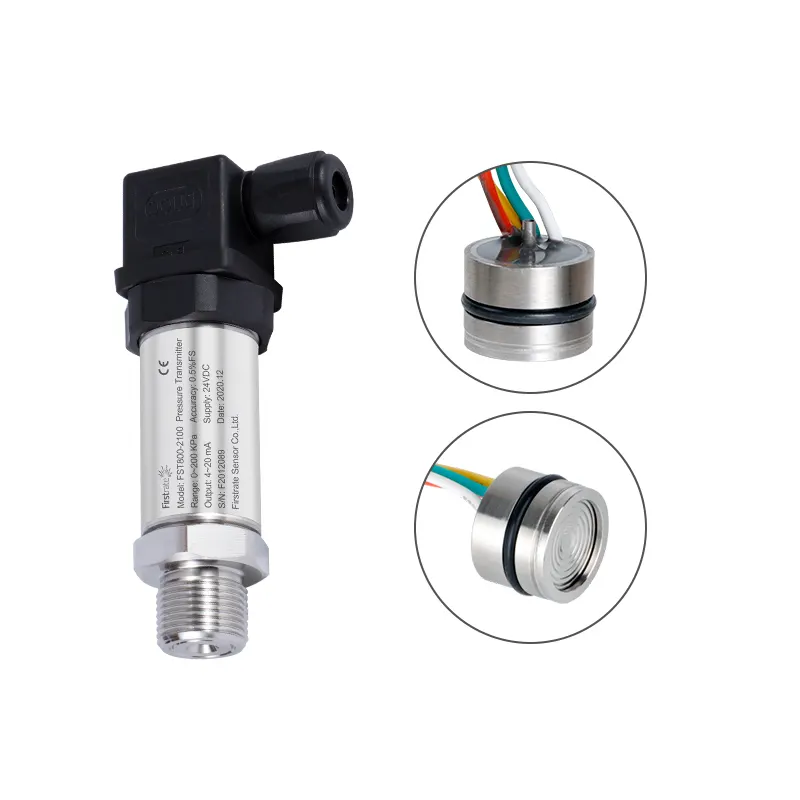

Firstrate Integrated Silicon Piezoresist Water Pressure Sensor FST800-2100 for Sale
Product parameters
|
Range |
0.1bar~600bar (gauge pressure) |
|
Output signal |
4~20mA,0.5~4.5VDC,0~5VDC,0~10VDC |
|
Precision |
±0.25%FS,±0.5%FS |
|
Signal Line Specifications |
2Wire(4~20mA),3Wire(0.5~4.5VDC,0~5VDC,0~10VDC) |
|
Supply voltage |
9 ~30VDC(4~20mA,0~5VDC),5VDC(0.5~4.5VDC),15~30VDC(0~10VDC) |
| Medium temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Temperature compensation |
-20℃~+85℃ |
|
long-term stability |
≤±0.1%FS/year |
|
Allow overload |
150%FS |
|
Breaking pressure |
200%FS |
|
Shock (11mS) |
100g |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Full scale temperature drift |
±0.02%FS/℃ |
|
Pressure port |
M20*1.5, G1/4, NPT1/4 (can be customized) |
|
Electrical connections |
M12 connector, direct outlet, Packard connector, large/small Hirschmann (customizable) |
|
Degree of protection |
IP65 |
| Material |
304 stainless steel |
Packaging & Shipping
