Description

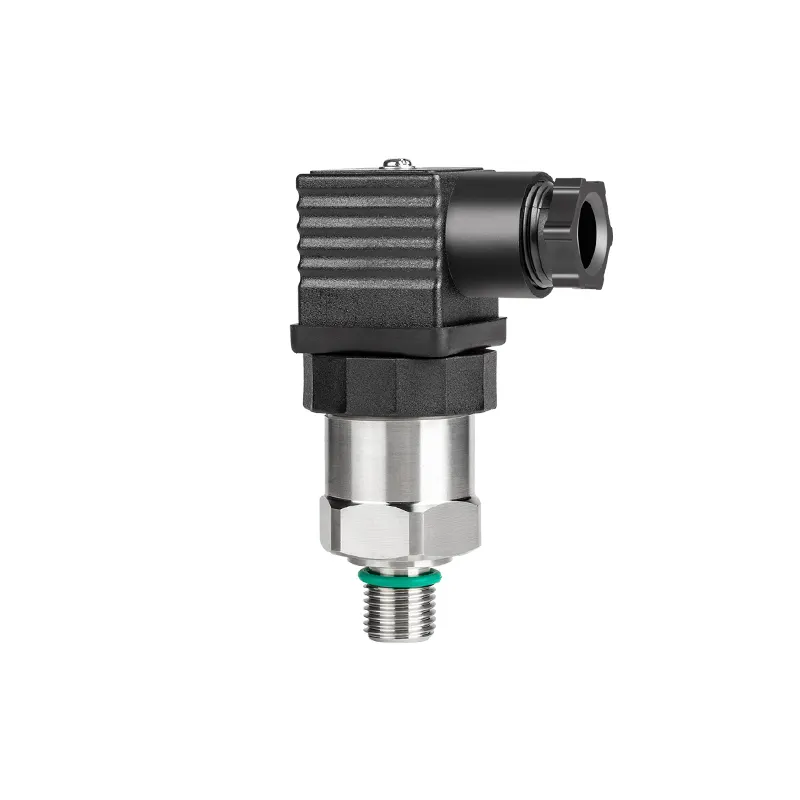

Firstrate FST800-1000 Ceramic Pressure Sensor 0-10bar 4-20ma Oil Pressure Transmitter High Quality Pressure Sensors
Product parameters
|
Measuring medium |
water, gas, oil |
|
Range |
5, 7, 10, 15, 20, 25, 32, 50 Bar (gauge pressure), or customized |
|
Output signal |
4~20mA,0~10VDC |
|
Precision |
±1%FS |
|
Supply voltage |
9~30V DC, 15~30V DC (0~10VDC output) |
|
Medium temperature |
-40℃~+85℃ |
|
Storage temperature |
-40℃~+125℃ |
|
Temperature compensation |
-10℃~+70℃ |
|
Long-term stability |
≤±0.2%FS/year |
|
Allow overload |
200%FS |
|
Breaking pressure |
300%FS(≤250bar) |
|
Shock (11mS) |
100g |
|
Zero temperature drift |
±0.02%FS/℃ |
|
Full scale temperature drift |
±0.02%FS/℃ |
|
Pressure port |
M20*1.5, G1/4; optional NPT1/4, G1/2 |
|
Electrical connections |
Large Hessmann connector, others can be customized |
