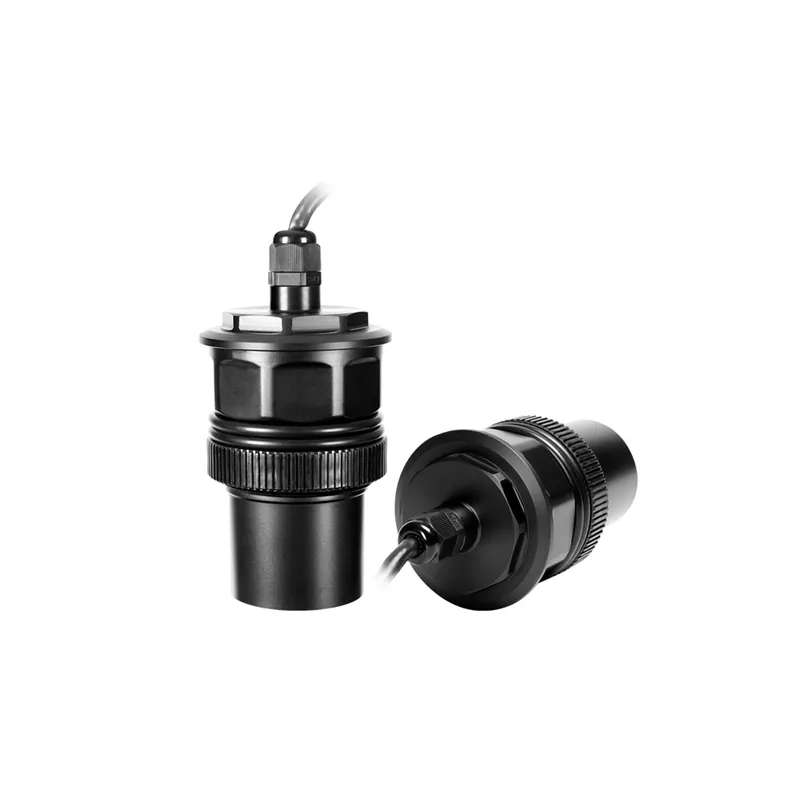

Firstrate FST700-CS03 Pipeline Underground Ultrasonic Tank Level Sensor Diesel Fuel Water Level Gauge Level Measuring Instrument
Product Description
| Measuring distance | 0~5...30m |
| Measurement accuracy | 0.3%~1%FS |
| Resolution | <5mm |
| Response time | <1S |
| Blind spot | <40cm |
| Signal output | RS485 (ModbusRTU communication protocol), RS485+4-20mA |
| Supply voltage | 12~30VDC |
| Operating temperature | -20~-60℃ |
| Working frequency | 40KHZ±5% |
| Pressure endurance | ≤3bar or 3kg |
| Protection class | IP67 |
| Detection angle | Wave velocity width) -3dB half power angle: 11.3°±10%
Acute angle: 26.6°±10%
|
| Shell material | Pc |
| Working current | 30mA@12V DC |
