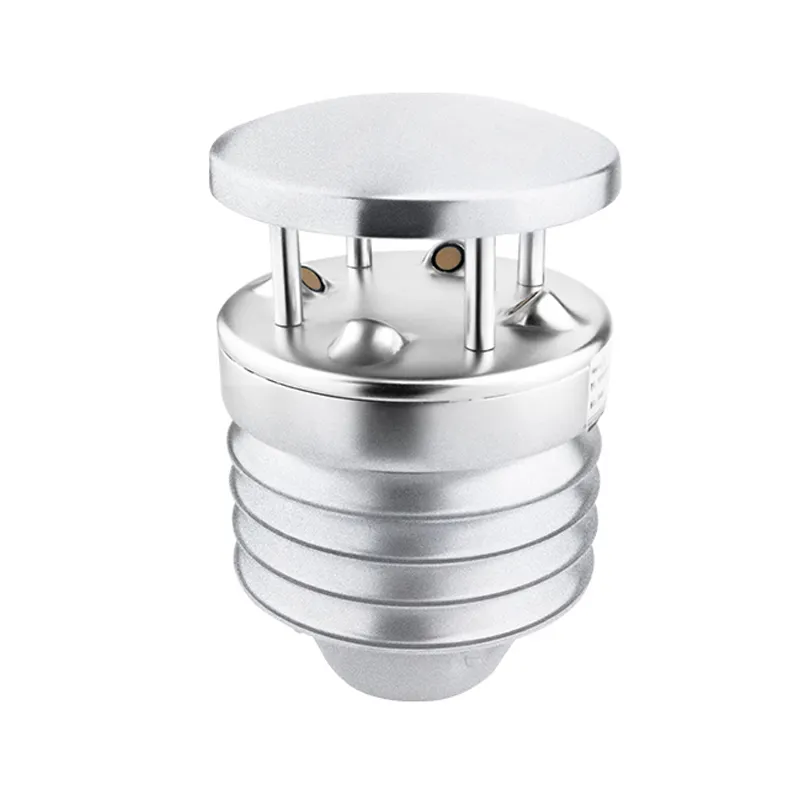

FST200-2201 Integrated Environmental Monitoring Sensor Temperature Humidity Sensor Wind Speed and Direction Sensor

$1,650.00
Quantity

Description

Firstrate FST200-2201 Integrated Environmental Monitoring Sensor Temperature Humidity Sensor Wind Speed and Direction Sensor



Product Description



Product parameters



 Digital signal  RS485,4-20mA,0-5V
 Voltage  9~24VDC
 Range of working temperature  -30~60°C
 Baud rate  9600, 19200, 38400, etc.
 Average current  <80mA(12VDC)
 Operating humidity range  0~95%RH
 Protection level  IP66



Index Name Measuring Range (ppm) Sensitivity (ppm) Accuracy (ppm)
CO 0~1000 0.001 0.03
NO 0~20 0.001 0.001
NO2 0~20 0.001 0.001
SO2 0~100 0.001 0.002
O3 0~20 0.001 0.5
H2S 0~100 0.0005 0.004
VOC 0~100 0.2 5%
Index Name Measuring Range Resolution Accuracy
Temperature  -40~60° 0.1℃ 0.3℃
Humidity 0%~100% 0.1% 3%
Wind Direction 0~360° 0.1% 2°
Wind Speed 0~60m/s 0.1m/s 0.3m/s or 3%
Atmospheric Pressure 50~110KPa 0.5kpa 0.1KPa(25℃)
PM2.5 0~1000ug/m3 0.3ug/m3 ±15% or ±10μg/m3
PM10 0~1000ug/m3 0.3ug/m3 ±15% or ±10μg/m3
Noise 30~150dB(A) ±1.5dB(A) 1.5dB±5%
Light Intensity 0~200Klux 0.1Kiux ±5%<10%
Rainfall parameter 0-200mm/h 0.2mm <10%
