Description

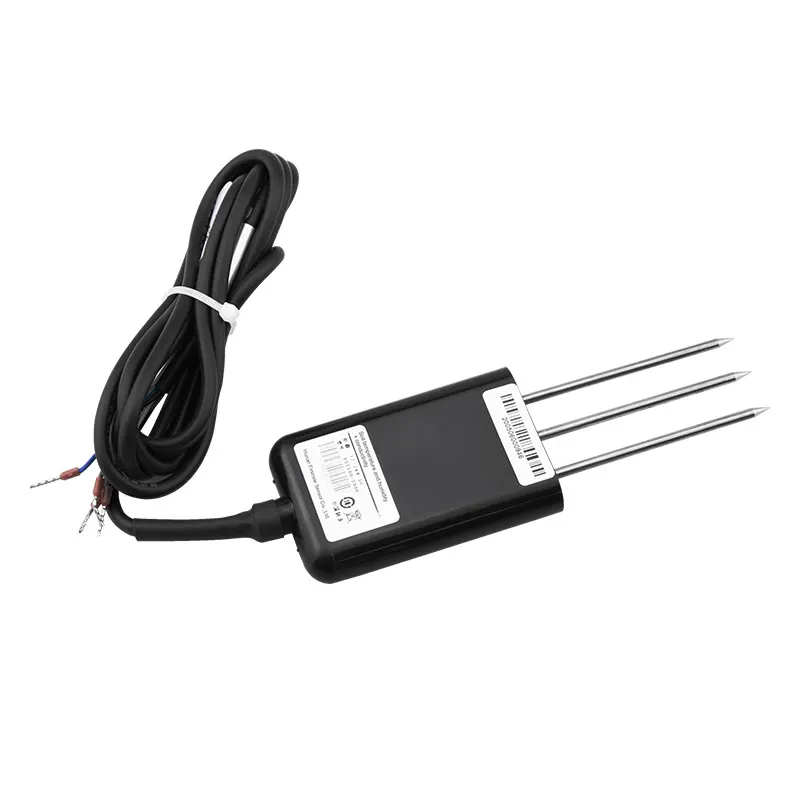

Firstrate FST100-2006A Soil Temperature Moisture Electrical Conductivity Meter Sensor
Product Description
| Product Introduction | |||||
| FST100-2006A Soil temperature and humidity + conductivity sensor for water-saving agricultural irrigation, meteorological monitoring, environmental monitoring, measurement, greenhouse, flower and vegetable, grassland pasture, soil speed measurement, plant culture, scientific experiment, etc. The field of humidity and salt content. | |||||
| Product Features | |||||
| Real-time temperature and humidity salt monitoring function to measure the temperature and salt content of soils at different depths Good sealing, can be directly buried in the soil, and is not corroded High measurement accuracy, reliable performance, fast response, high data transmission efficiency Less affected by soil and widely used |
|||||
|
|||||
| Product Specification (Technical Parameters) | |||||
| Measurement range | -40~80°C | ||||
| Units of measurement | °C;%( m3/m3);mS/cm | ||||
| Temperature range | -30 ~ 70 ° C (can be customized 0 ~ 50 ° C or any other range) | ||||
| Water component | 0~100% (can choose 30%, 50% equal range or customize any range) | ||||
| Salt component | 0~20 mS/cm (can be customized 0~5mS/cm, 0~10mS/cm, etc.) | ||||
| Accuracy | ±0.2°C; ±2% (m3/m3) in the range of 0 to 50% (m3/m3); ±2% | ||||
| Resolution | 0.1 ° C; 0.1%, 0.001 mS / cm (1 μS / cm) | ||||
| Output signal | Rs485 (standard Modbus-RTU protocol, device default address: 01) | ||||
| Supply voltage | 6~24V DC | ||||
| Electrical connections | Direct lead | ||||
| Sealing material | ABS engineering plastic, epoxy resin | ||||
| Probe length | 55mm | ||||
| Probe diameter | 3mm | ||||
