Description
Products Description

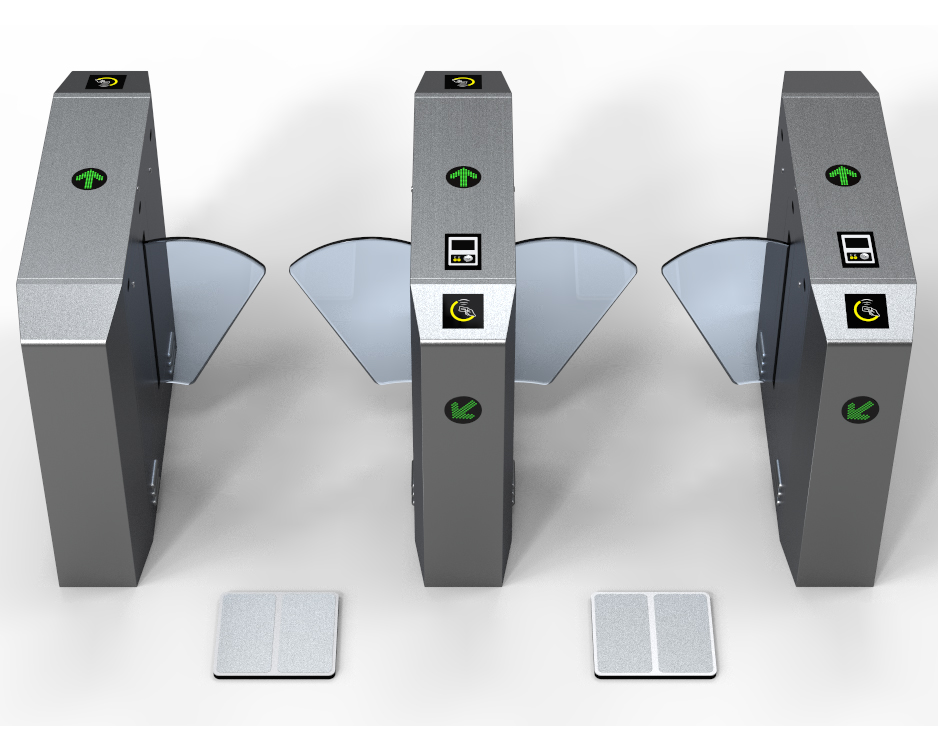

Through the all-round monitoring of the electrostatic testing area, managers and management personnel can easily understand and grasp the use of gates and equipment operation conditions at various locations, and solve problems in time, which can effectively improve the work efficiency of management personnel. Necessary measures to improve management 1. The employee only needs to swipe his card to test the wrist strap instrument to determine the displayed resistance value, and the gate will automatically open in the OK range 2. The employee only needs to swipe the card to test the electrostatic shoes. The instrument judges and displays the resistance value of the left and right feet, and the gate opens automatically in the OK range 3. The employee needs to test the electrostatic shoes and wrist strap by swiping the card. The instrument displays the resistance value of the hand shoes, and the gate will automatically open in the OK range. 4. Customers and VIPs want to enter the workshop to watch, we have prepared a VIP test-free card for him, and the gate will open automatically when the card is swiped. 5. If the boss or manager wants to enter the workshop, we have also prepared a special card for you, and the gate will open automatically when you swipe the card. 6. It can be equipped with fingerprint recognition or face recognition before testing
Product Paramenters
|
Physical dimensions (mm):
|
175MM*115MM*28.5MM
|
|
Working environment
|
Temperature -20℃～60℃, glue filling treatment, waterproof and dustproof
|
|
Instrument interface:
|
Can be connected with single and double circuit, double pedals
|
|
Induction speed
|
Quick response to swiping card, less than 0.1 second, interval between repeated swiping cards is less than 1 second
|
|
Protection measures
|
Semiconductor lightning protection
|
|
Display
|
3.5 resistive touch screen
|
|
Working frequency
|
13.56MHz
|
|
Input interface
|
Standard Wiegand 34/26 (RS232 input mode can be customized)
|
|
Read head frequency
|
13.56MHz and 125kHz
|
|
Operation humidity
|
0%~90%
|
|
Operation temperature
|
-20℃~60℃
|
|
Working status
|
The test status LCD screen displays the resistance value of the wrist strap and electrostatic shoes
|
|
Working voltage
|
DC9V1A
|
Scope of application
Production Process
