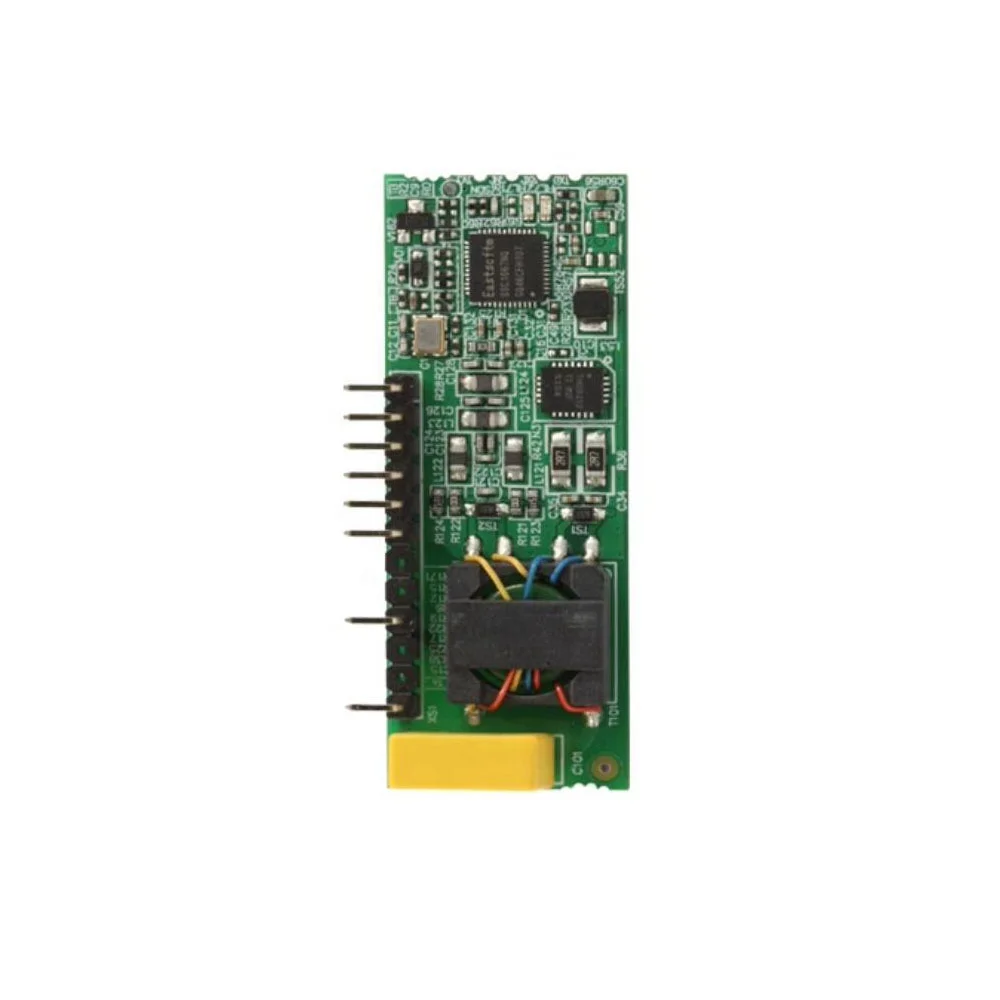

ES1667-C ES1667-NC Broadband Over Power Lines Broadband Powerline Adapter Power Line Carrier Communication Module
Product Description
|
Voltage
|
3.3V/12V
|
|
Current
|
Max 120mA
|
|
Carrier band
|
2Mhz~12MHZ/0.7~3Mhz/0.7~12mhz
|
|
Communication speed
|
6Mbps/150K~3.12Mbps
|
|
Modulation mode
|
BPSK/QPSK/8QAM/16QAM
|
|
Working temperature
|
-20C ~60C
|
ES1667-C
The ES1667-C carrier module is a miniaturized, broadband and high-speed power line carrier communication module. Its core chip uses Neusoft Carrier power line carrier communication chip SSC1667. It integrates a 32-bit processor internally and uses OFDM digital modulation and demodulation for transmission, with high communication speed. It has the characteristics of fast, high sensitivity, reliable communication and strong anti-interference ability. This module uses a serial port to communicate with the user's MCU, and can be widely used in smart homes, smart light control, smart buildings and other fields. Modulation and demodulation method: BPSK/QPSK/8QAM/16QAM Communication frequency band: 2MHz ~12MHz (supports adjustable frequency band) Receiving sensitivity: ≤0.125uVrms Communication rate: 150k~3.12Mbps Working voltage: +3.3v, +12V Serial port baud rate: supports multiple types: 1200bps~115200bps (default), no verification Static power consumption: ≤0.35w Dynamic power consumption: ≤1.5W (load impedance 100ohm) Dimensions: 54.0mm (length) × 19.4mm (width) Working temperature range: -20℃~+60℃
ES1667-NC
The ES1667-NC carrier module is a miniaturized, broadband and high-speed power line carrier communication module. Its core chip uses the Neusoft carrier power line carrier communication chip SSC1667, which integrates analog front-end, baseband modulation and demodulation, digital signal processing, CPU core and rich Functional peripherals are integrated into one, providing physical layer (PHY), media access Ask about complete power line communication solutions such as control layer (MAC), adaptation layer (ADP), network layer (NET) and application layer (APP), which have the characteristics of fast communication speed, high sensitivity, reliable communication and strong anti-interference ability. . This module uses a serial port to communicate with the user's MCU, and can be widely used in smart homes, smart light control, smart buildings and other fields. Modulation and demodulation method: BPSK/QPSK/8QAM/16QAM Communication frequency band: 2MHz ~12MHz (supports adjustable frequency band) Receiving sensitivity: ≤0.125uVrms Communication rate: 150k~3.12Mbps Working voltage: +3.3V, +12V Serial port baud rate: supports multiple types: 1200bps~115200bps (default), no verification Static power consumption: ≤0.35w Dynamic power consumption: ≤1.5W (load impedance 100ohm ) Size: 27.4mm (length) × 17.8mm (width) Working temperature range: -20°C~+60°C
