Description
ES1642-C with Coupled Low Voltage Power Line Communication Module Power carrier communication PLC Module
Product Description
ES1642-C carrier module is a miniaturized, low-power power line carrier communication module. Its core chip adopts Neusoft carrier power line carrier communication chip SSC1642, which integrates 32-bit processor and transmits with DBPSK digital modulation and demodulation mode. High, reliable communication, strong anti-interference ability, and long communication distance. The module uses a TTL level serial port to communicate with the user's MCU, which can be widely used in smart homes, intelligent light control, intelligent buildings and other fields. The software supports transparent transmission, national grid DL/T-645, and custom 79 protocol.
Product Paramenters
|
Modem
|
DBPSK
|
|
|
Automatic relay forwarding mechanism
|
||
|
Receive sensitivity
|
100UVRMS
|
|
|
Carrier symbol communication rate
|
2.5KBPS~5KBPS
|
|
|
Serial port baud rate
|
9600BPS, no parity
|
|
|
Static power consumption
|
≤0.045W
|
|
|
Dynamic power consumption
|
≤1.5W
|
|
|
Size
|
31.2MM × 19.5MM
|
|
|
Strong and weak electrical isolation withstand voltage
|
3KV (50HZ)
|
|
Electrical Parameter
Carrier voltage: 300VAC, withstand voltage depends on safety capacitor withstand voltage VDD, min3.0v, typic3.3V, max5.2V, maximum current consumption: 50MA voltage ripple is not more than 20MV VCC, min +11V, typic +12V, max +15V, maximum current consumption: 125MA+12V, voltage ripple is no more than 120MV Input high level: 0.8*VDD-VDD Input low level: 0V-0.2*VDD Output high level: VDD-0.7 Output low level: 0.6V
Installation Instructions
Interface
Weak current interface 1, /RST, direction I, PLC reset input, internal RC reset, low level enable reset 2. PLCRXD, direction I, serial port reception, TTL signal (VDD) 3. PLCTXD, direction O, serial port transmission, TTL signal (VDD) 4, VDD, +3.3V/+5V, carrier module power supply, 3. 3V to 5V compatible 5, GND, ground 6, VCC, +12V, 12V power supply for carrier module Strong current interface 9, N, neutral line, single-phase signal input, internal integrated coupling 12, L, phase line, circuit, N and L can be swapped

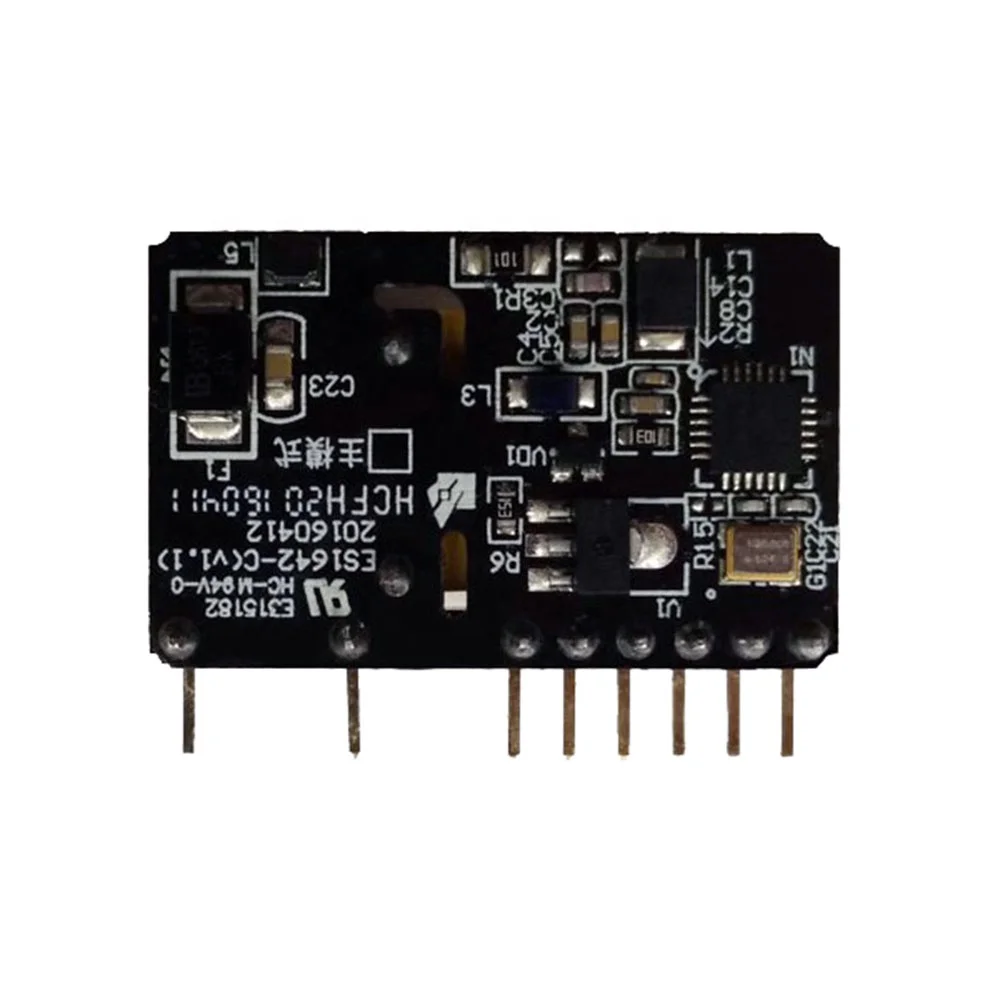

Details Images
