Description
eMMC153 / 169 eMCP162 / 186 eMCP221 USB Interface EMMC Test Socket Burn in Test Socket USB Test Socket
Product Description
1
Product use
programming base, test base, test, read and write IC chips of eMMC153 / 169 eMCP221 eMCP162 / 186
2
Test method
1. Select the limit box that matches the IC, and place the IC flat into the SOCKET according to the direction.
2. Plug the USBcable into the USB interface on the computer, turn on the power switch of the seat, and select the corresponding test program.
3
Applicable package
eMMC169 / 153， eMCP162 / 186， eMCP221 0.5mm pitch
Features

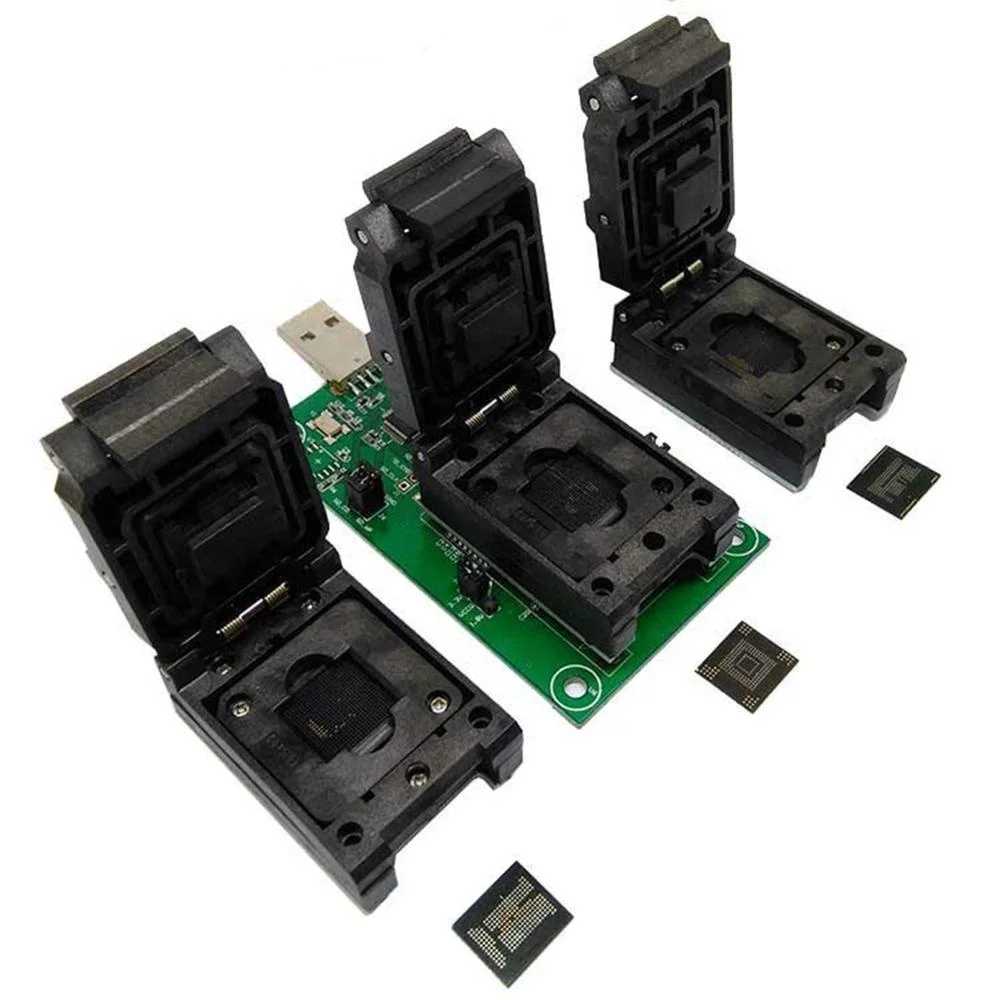

1. A motherboard, three sockets, the test socket is inserted into the yellow adapter board with the pin holes, and the corresponding chip is tested. More affordable than a single product 2. The shrapnel is made of imported beryllium copper and stamped with high-precision molds. The head is designed as a probe. 3. Support hot-swappable and separate power switch, support testing by PIN connection with the board through the USB interface or through the cable 4.Adopt floating plate structure, accurate positioning, convenient IC access and higher work efficiency 5. The test board is soldered to the adapter board, the test base does not need to be soldered, and the pinhole can be inserted into the adapter board
