Description

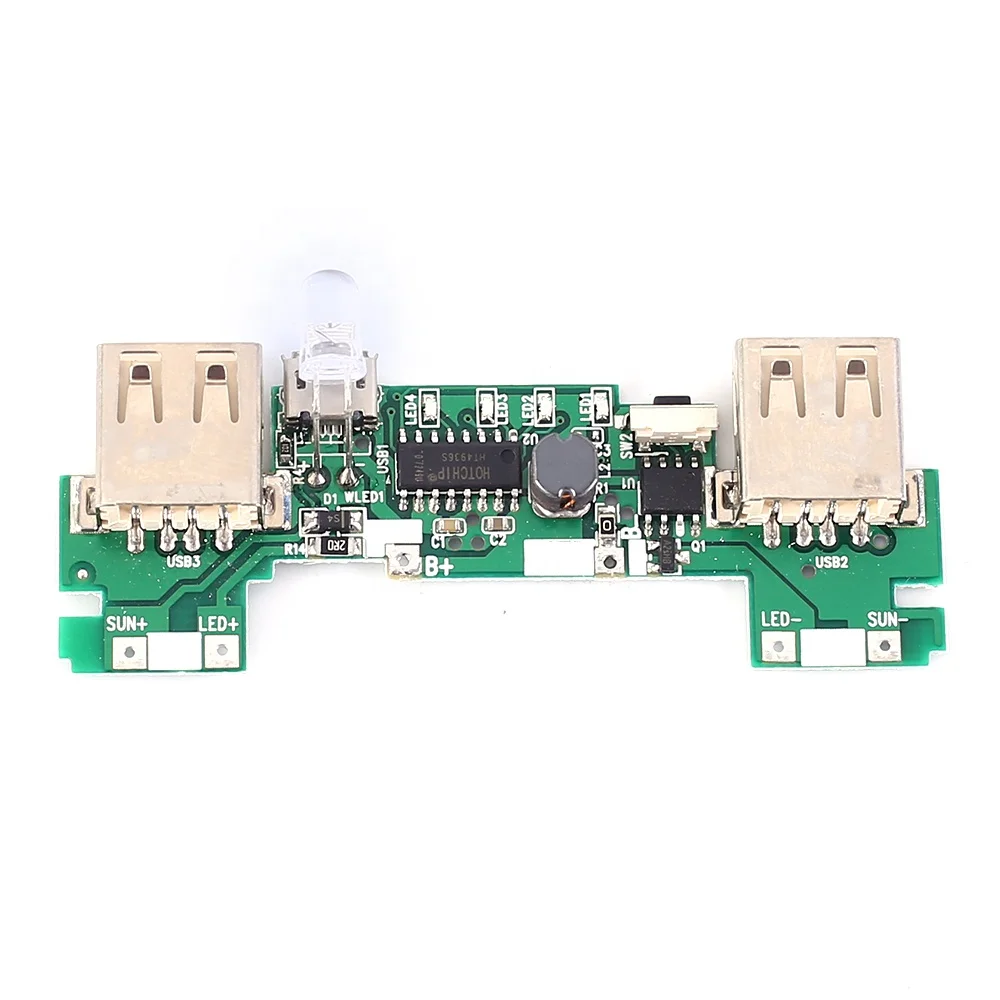

Dual USB Output 5V1A/2A DIY Solar Charge Module Li Battery In Power Bank Charger Step Up Boost Power Supply Module Kit
Product Description
|
1
|
Input charging voltage: DC 5V 1.5A
|
|
2
|
Input battery voltage:DC 3.7V-4.2V Polymer Rechargeable Lithium Battery
|
|
3
|
Solar panel charging voltage:DC 4.5V-5.5V
|
|
4
|
Output channel:2CH
|
|
5
|
Output voltage:5V2A/5V1A
|
|
6
|
Operating Temperature:-20℃~85℃
|
|
7
|
Operating Humidity:5%~95%RH
|
|
8
|
Module Size:71*25*8mm
|
Feature
Support solar panel charging
Support discharge while charging
Support discharge while charging
Support dual USB output
Button Function:
1.Double click to turn ON/OFF LED flashlight
2.Keep press more than 5second to turn ON/OFF output LED+/LED- light
Note:
1.2A is the max output current.It is not a constant current power module.Its output current change by load!It can not keep
output 2A fixed.
2.Old and new batteries can not be mixed.
3.The solar panel charging current is just about 50mA.So the solar charging speed is very slow which can only play a supporting role.
4.The battery cannot be reversed, otherwise the module will be damaged.
5.Please check the battery voltage first. If the battery voltage is lower than 3V, the module will not work properly.
6.Please input from Micro USB socket to activation module at first before connect battery.
7.The input solar panel charging current can not more than 1A.
2.Keep press more than 5second to turn ON/OFF output LED+/LED- light
Note:
1.2A is the max output current.It is not a constant current power module.Its output current change by load!It can not keep
output 2A fixed.
2.Old and new batteries can not be mixed.
3.The solar panel charging current is just about 50mA.So the solar charging speed is very slow which can only play a supporting role.
4.The battery cannot be reversed, otherwise the module will be damaged.
5.Please check the battery voltage first. If the battery voltage is lower than 3V, the module will not work properly.
6.Please input from Micro USB socket to activation module at first before connect battery.
7.The input solar panel charging current can not more than 1A.
Details Images
