Description

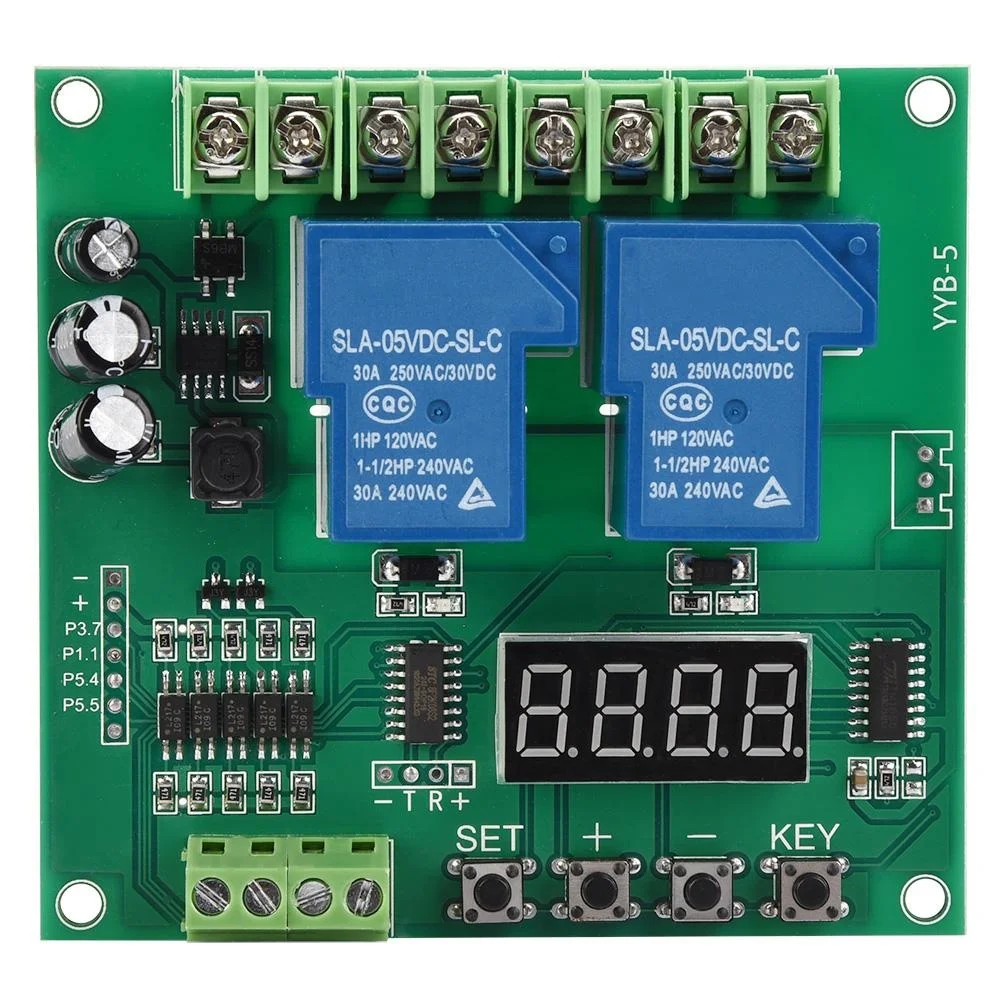

Dual Thermocouple Switch Relay DS18B20 Temperature Control Motor Forward Reverse Cycle Repeating Interval Timer Switch
Product Description
Input voltage: DC/ AC7V-27V Time range: 0.1 seconds to 999 minutes
Feature
- 6 kinds of commonly used functions to meet the needs of more applications; - It can control 2-way solenoid valve, pumps, motors, lights and other running freely - Output power: it can control within 30A DC or AC load - Time range: 0.1 seconds to 999 minutes any time adjustable
Wiring Port Description
1
AC/DC : Input 7V~27V
2
IN1: Signal input 1 (negative trigger)
3
IN2: Signal input terminal 2 (negative trigger)
4
IN3: Signal input 3 (negative trigger)
5
NO: relay normally open interface, relay pull before the suspension, after the connection with the COM shorted
6
COM: relay common interface
7
NC: relay normally closed interface, the relay before the connection with the COM shorted, pull after the suspension
