Products Description

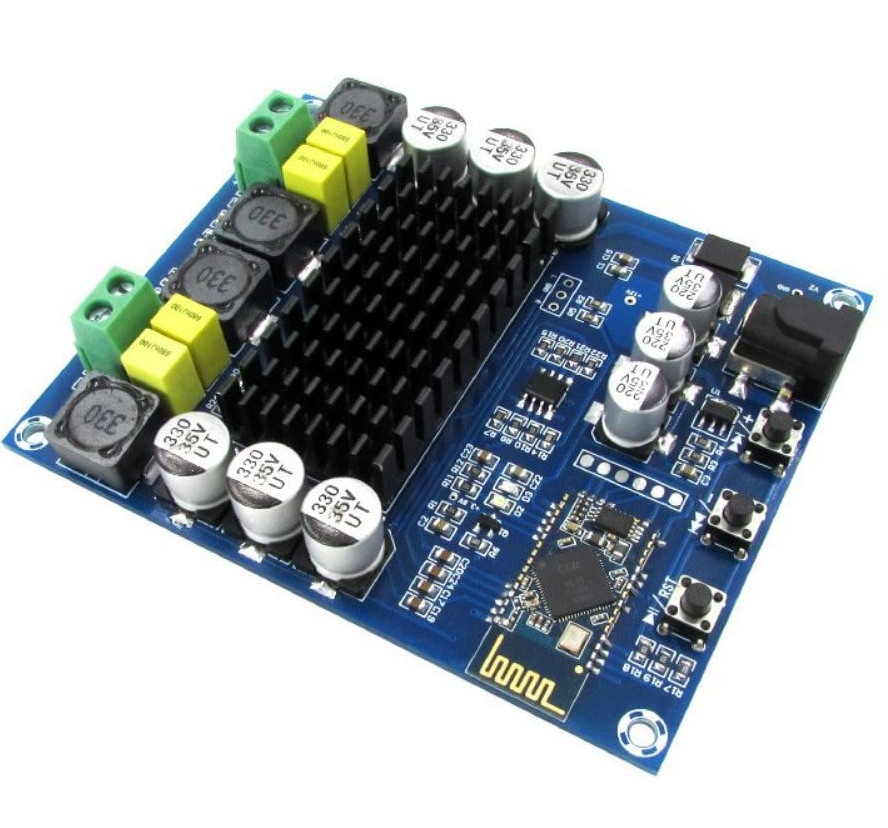

100WX2 Dual Channel Audio Amps moudle TPA3116 CSR8635 4.0 BT Amplifier Digital Audio Board
Main Board: tpa3116 amplifier board
Function
Package
cartons and sealed bag
Function
Using the digital power amplifier chip TPA3116D2 college D class operation, integrated CSR8635.4 version of the BT module.
Power amplifier chip with more than 90% of the power efficiency and low idle loss characteristics.
High-level modulation system configuration, advanced level reduces the number of components, integrated self-protection circuit,including overvoltage, undervoltage, overheating, DC detection and short circuit protection, heat-resistant package.BT transmission of about 10 meters,But only if there is without any hindrance,but the use of the environment do not,transmission distance, if the DIY speaker, it is best not to use the BT signal shielding material
Output power:100W*2;BT 4.0,Low energy consumption, high transmission rate,compatible for smart phones and other electronic
Power amplifier chip with more than 90% of the power efficiency and low idle loss characteristics.
High-level modulation system configuration, advanced level reduces the number of components, integrated self-protection circuit,including overvoltage, undervoltage, overheating, DC detection and short circuit protection, heat-resistant package.BT transmission of about 10 meters,But only if there is without any hindrance,but the use of the environment do not,transmission distance, if the DIY speaker, it is best not to use the BT signal shielding material
Output power:100W*2;BT 4.0,Low energy consumption, high transmission rate,compatible for smart phones and other electronic
with BT devices that support BT: HFP V1.6,HSP V 1.2, AVRCP V1.4, DI V1.3
Package
cartons and sealed bag
| Chip type | TDA3116D2 | ||||||
| Transmission distance | up to 10 meters (no interference blocking) | ||||||
| Supply voltage | DC12-24V | ||||||
| Supply current | greater than 3A | ||||||
| Output power | 100W * 2 | ||||||
| Notice | Dual Channel Output 4Ohm 50W*2 | ||||||
| Power interface | 2.1 DC socket | ||||||
| Applicable speaker impedance | 4-8ohm | ||||||
| Single Channel Output | 4Ohm 80W ; 3Ohm 110W; 2Ohm 100W | ||||||
