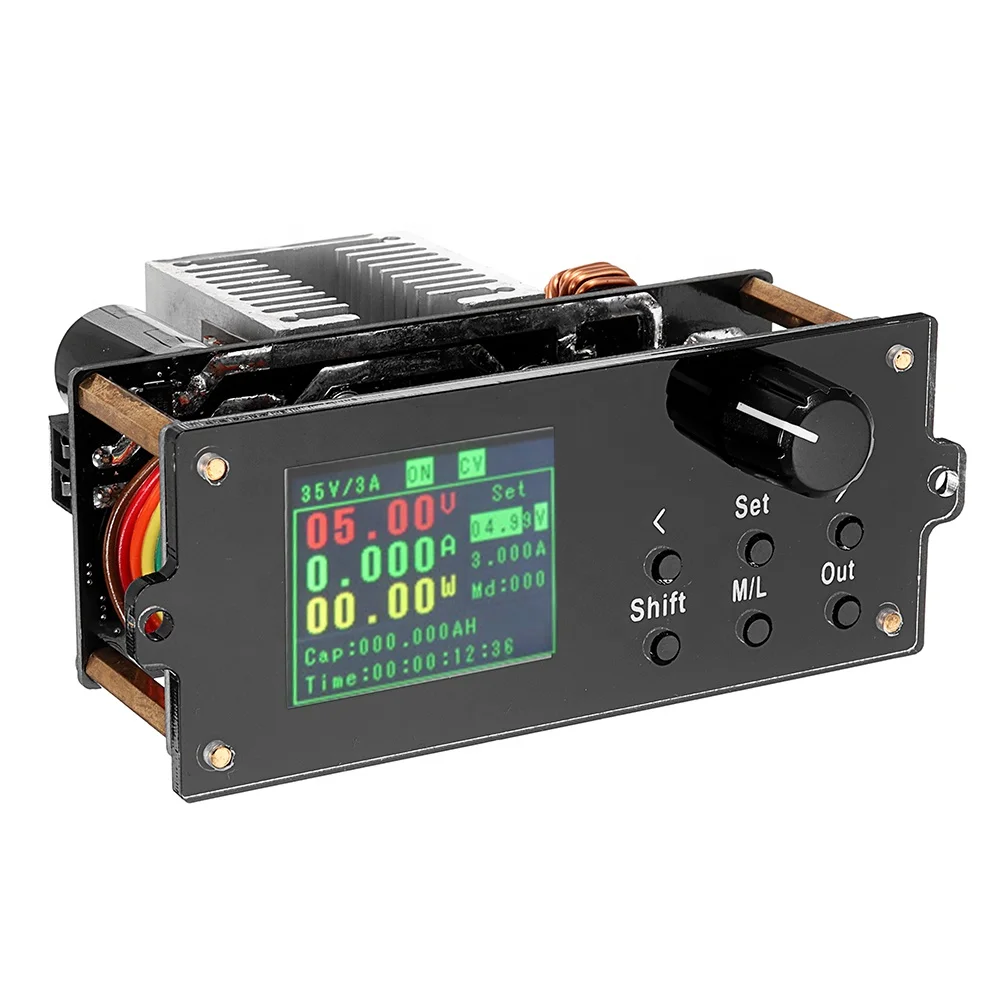

DPX3203 DPX3203S DPX6005 DPX6005S DPX6012 DPX6012S Buck Converter Step Down Power Supply Module DC Volt Ampere Meter
Product Description
DPX series color screen numerical control step-down power supply is a full digitally controlled programmable step-down power supply, small size, high power, high efficiency, stable operation; 1.8-inch TFT color liquid crystal display, display data is comprehensive and clear; the power adopts advanced micro processing The controller can accurately adjust and display the voltage and current. Using buttons and knobs to operate, setting parameters is convenient and fast. It is very suitable for debugging, maintenance and experimental power supply.
Instrument features
The use of advanced microprocessors can accurately regulate and display the output voltage and current.
Using 1.8-inch color LCD display, real-time display of voltage, current, capacity, time and power supply operating status;
It is convenient and quick to adjust and read parameters through the cooperation of buttons and knobs, especially when saving and recalling parameters.
Can set the output overvoltage (Ovp), over current (Ocp), over power protection (Opp), the output can be turned off when the output exceeds the set value;
With its own cooling fan to ensure that power devices will not be damaged due to overheating;
Can constant pressure, constant current output;
With input reverse polarity protection function, it can prevent damage to the power supply due to reverse input;
Using 1.8-inch color LCD display, real-time display of voltage, current, capacity, time and power supply operating status;
It is convenient and quick to adjust and read parameters through the cooperation of buttons and knobs, especially when saving and recalling parameters.
Can set the output overvoltage (Ovp), over current (Ocp), over power protection (Opp), the output can be turned off when the output exceeds the set value;
With its own cooling fan to ensure that power devices will not be damaged due to overheating;
Can constant pressure, constant current output;
With input reverse polarity protection function, it can prevent damage to the power supply due to reverse input;
Specification
|
Specification
|
DPX6012S (With communication)
|
DPX3203S (With communication)
|
DPX6005S (With communication)
|
||
|
Input voltage range
|
6-75V
|
6-62V
|
6-40V
|
||
|
Output voltage adjustment range
|
0-62V (Input needs to be greater than the output)
|
0-60V (Input needs to be greater than the output)
|
0-32V (Input needs to be greater than the output)
|
||
|
Output current adjustment range
|
0-12A
|
0-5A
|
0-3A
|
||
|
Input protection
|
Reverse protection
|
Reverse protection
|
Reverse protection, overvoltage protection
|
||
|
Output protection
|
Overvoltage, overcurrent, overpower protection
|
||||
|
Output power
|
0-744W
|
0-300W
|
0-62W
|
||
|
Output voltage setting resolution
|
10mV
|
10mV
|
10mV
|
||
|
Output current setting resolution
|
10mA
|
10mA
|
1mA
|
||
|
Output ripple
|
<200mVpp (Input 48V, Output 24V, Current 5A)
|
<100mVpp (Input 48V, Output 24V, Current 5A)
|
<100mVpp (Input 35V, Output 12V, Current 2A)
|
||
|
100Hz toggle transmission ratio
|
<1/10000
|
<1/10000
|
<1/10000
|
||
|
Voltage, current display accuracy
|
10mV, 10mA
|
10mV, 10mA
|
10mV, (1<1A 1ma. 1>=1A 10ma)
|
||
|
Voltage display error
|
10mV, 10mA
|
±1%+20mV
|
±1%+20mV
|
||
|
Current display error
|
±2%+20mA
|
±2%+20mA
|
±2%+1mA
|
||
|
Response time
|
<80ms
|
<50ms
|
<50ms
|
||
|
Storage operation
|
M0-M9 total 10 sets of parameter storage
|
||||
|
Heat dissipation method
|
Onboard heatsink and cooling fan
|
||||
|
Cooling fan start condition
|
Output current greater than 1.5A or output power greater than 50W
|
Output current greater than 1A or output power greater than 40W
|
Output current greater than 0.5A or output power greater than 25W
|
||
|
Operating ambient temperature
|
0-60°C
|
||||
|
Storage ambient temperature
|
-20~70°C
|
||||
|
Use environment
|
Indoor use, maximum humidity 80%
|
||||
|
Weight
|
190g
|
170g
|
95g
|
||
Display instructions
1 shows the actual output voltage value
2 shows the actual output current value
3 shows the actual output power value
4 Display real-time coulomb accumulation value A Power output status display
5 Display Runtime Value B Switch Status Display
6 shows save and recall address bit C model
7 shows the set current value
8 shows the set voltage value
9 Save and Recall Status Display
2 shows the actual output current value
3 shows the actual output power value
4 Display real-time coulomb accumulation value A Power output status display
5 Display Runtime Value B Switch Status Display
6 shows save and recall address bit C model
7 shows the set current value
8 shows the set voltage value
9 Save and Recall Status Display
