Description
Product Description

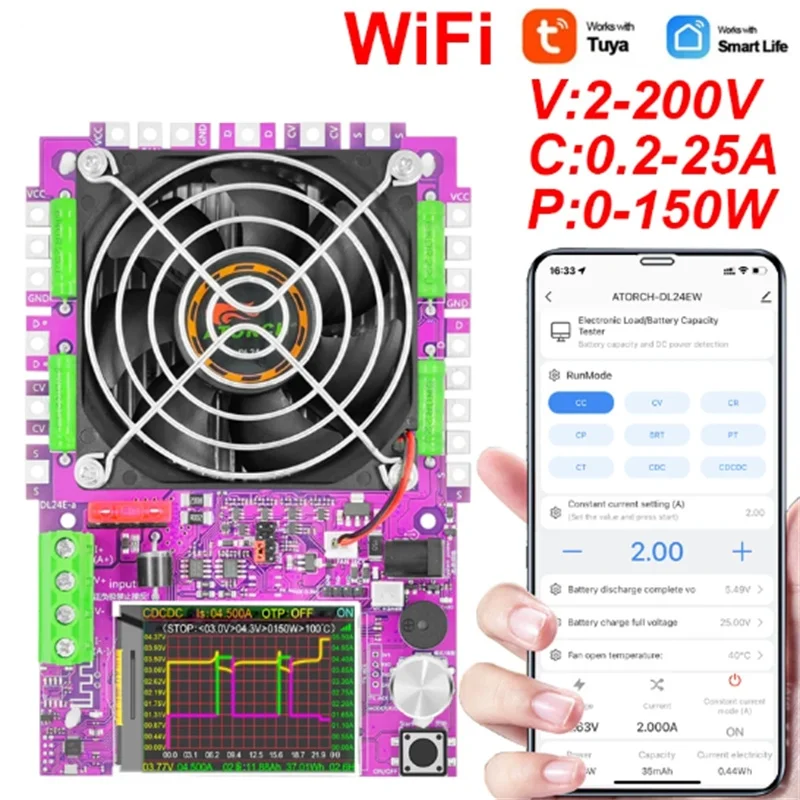

DL24EW 150W WiFi Tuya APP Smart Power Electronic Load Tester DC USB 18650 Voltage Current 48V Battery Capacity Monitor Tools
User manual and APP Download
1, User manual, PC software installation instruction and PC software and Android APP download link : https://www.mediafire.com/folder/fgs8nbwv5ldr9/DL24EW 2, IOS APP: search smart life or tuya APP on iphone APP store to download 3, Android APP: search smart life or tuya APP at Google play to down load
--Product Parameter--
Electrical parameters Test voltage:2~200V Working current:0.2~25A DL24-M Discharge power: voltage * current < 150 W (The actual running current is limited by the maximum power, please adjust the current according to the law of energy conservation) The built-in over-current, over-temperature, over-power safety protection functions, if the protection interface is popped up, please pay attention to the parameter adjustment, shall adjust to the maximum power, and then discharge, you can first slowly and smoothly adjust the preset value in the start and discharge, in order to adjust up to the maximum power for discharging
9 kind of operating modes of operation
CC: Constant current test mode CV: Constant voltage test mode CR: Constant resistance test mode CP: Constant power test mode BRT: Dattery internal resistance test mode PT: PT electrical parameters automatic test mode CT: Data cable resistance test mode CDC: Battery charge-discharge-charge test mode CDCDC: Battery charge-discharge-charge-discharge-charge test mode
