DKP3603 Adjustable High Precision DC-DC Constant Voltage and Constant Current Step-down LED Driver Power Supply

Instrument Introduction

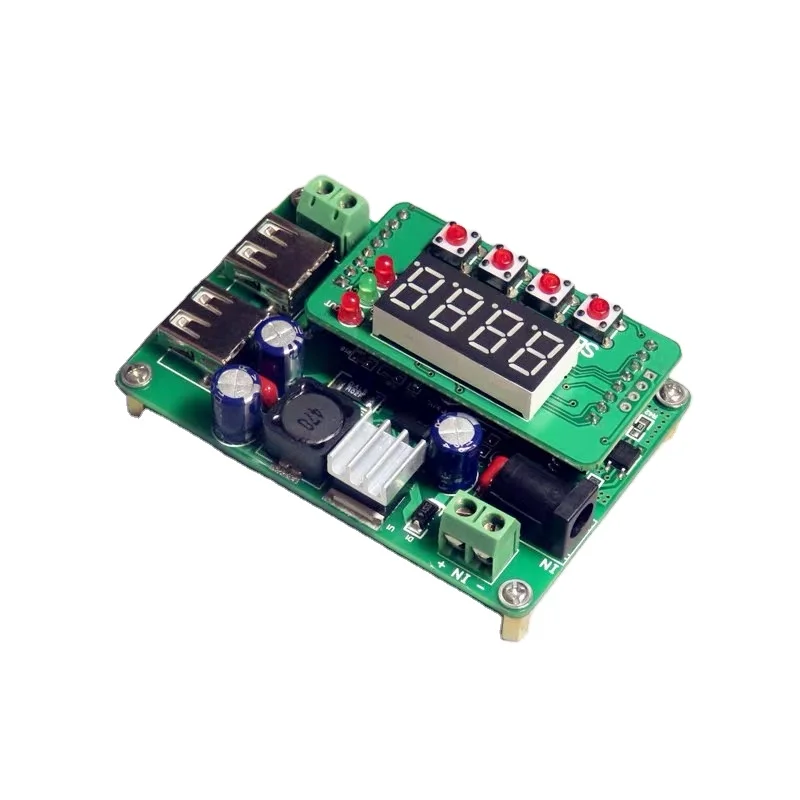

The DKP3603 DC-DC CNC step-down module is a fully digital display programmable step-down module with small size, high power, high efficiency, and stable operation. It adopts advanced microprocessor control, and the voltage and current are precisely adjusted by buttons. It can output constant voltage and current, and can communicate with microcontrollers or computers through reserved ports for easy secondary development. Equipped with four digit eight segment LED Nixie tube, which can display the output voltage and current in real time. At the same time, this CNC voltage reduction module is equipped with a working status indicator light, which can view the working status in real-time. After powering on, this machine has an automatic output function that can be turned on or off as needed. In addition, this machine also has a button locking function that can lock parameter adjustment buttons to prevent misadjustment of output voltage and current parameters.

Instrument characteristics

1. Adopting advanced microprocessors, buttons can accurately adjust the output voltage and current;

2. Equipped with 2 USB 2.0 charging interfaces, one with a fixed voltage of 5V and a maximum current of 1A output; The other is an adjustable voltage of 0-36V, with a maximum current of 3A output

3. Automatic output can be set after power on;

4. Lockable parameter adjustment button to prevent misoperation and disorder of output voltage and current parameters.

5. The use of high-quality power devices, combined with peripheral precision operational amplifiers to form CV and CC loops, greatly improves module performance;

6. Full digital display, convenient and easy to use;

7. Capable of constant voltage and constant current output;

8. The module is equipped with working status indicator lights, which are output OUT, constant voltage CV, and constant current CC indicator lights, allowing real-time viewing of working status;

9. The ports reserved for the module can communicate with microcontrollers or computers for ease of secondary development.

10. The 4-bit high brightness Nixie tube can display the output voltage, current, capacity and time in real time;

 Technical indicators

Input voltage range: 5V~40V

Output voltage regulation range: 0-36V

Output current adjustment range: 0-3A

Output power: 0-90w

Output voltage setting resolution: 10mV

Output current setting resolution: 1mA

Power effect: CV less than 0.5%+10mV, cC less than 1%+1mA

Load effect: CV less than 0.5%+10mV CC less than 1%+1mA

Output ripple:<40mVpp (input 30V, output 12V, current 1A)

100Hz fluctuation transmission ratio: 1/10000

Typical efficiency: 85% (input 30V, output 12V, current 1A)

Voltage and current display accuracy: 10mV, 1mA

Voltage display error: ± 1%+20mV

Current display error: ± 2%+2MA

Response time:<50ms

Storage operation: MO~M9 stores a total of 10 sets of parameters

Operating environment temperature: 0-40 ℃

Storage environment temperature: -20~70 ℃

Usage environment: Designed for indoor use, with a maximum humidity of 80%

Size (length × wide × High): 80.5 × 53.8x30 (mm)
