Description

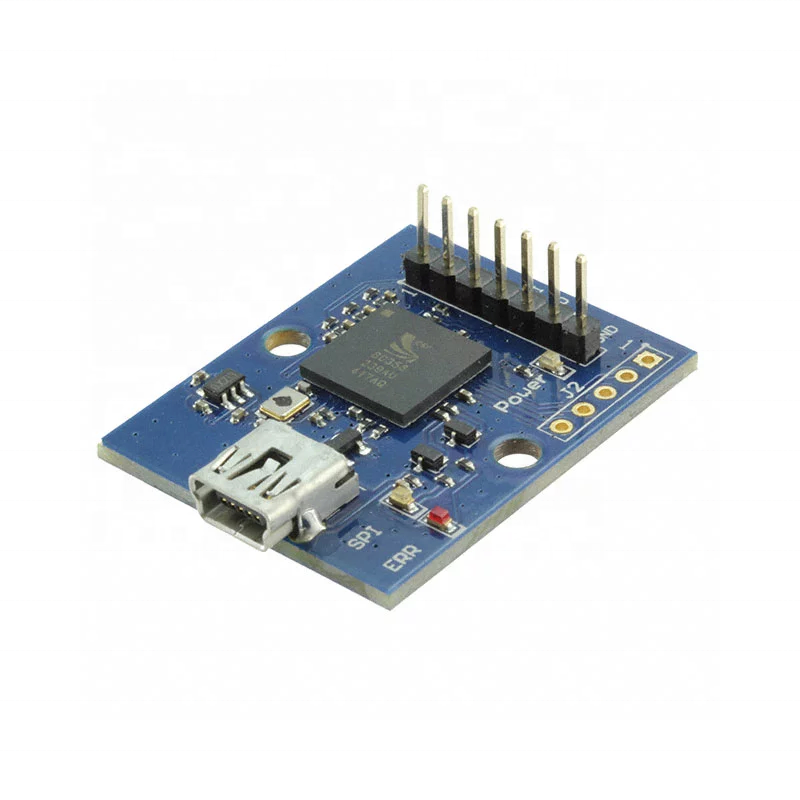

DK-USB-SPI-10225-1A CSR Series BLE Chip Programmer CSR USB-SPI CSR101x Active Debugger
Product Description
1. Original burner, better stability!
2. SPI voltage is 3V, fully compatible with 3.3V / 1.8V!
3. USB design ESD components, anti-static treatment, power more clean!
4. 3 status indicator, more intuitive view of the state!
5. Driver, burning tools, manual download address:
2. SPI voltage is 3V, fully compatible with 3.3V / 1.8V!
3. USB design ESD components, anti-static treatment, power more clean!
4. 3 status indicator, more intuitive view of the state!
5. Driver, burning tools, manual download address:
Specification
|
item
|
value
|
|
Model
|
DK-USB-SPI-10225-1A
|
|
Description
|
KIT SPI PROGRAMMER SENSOR
|
|
Model Number
|
DK-USB-SPI-10225-1A Programmer
|
|
Part Status
|
Active
|
|
Type
|
Debugger, Programmer (In-Circuit/In-System)
|
|
For Use With/Related Products
|
CSR101x
|
Pin Description:
1. MISO, CLK, CSB, CLK for the SPI burner interface, and CSR Bluetooth chip SPI interface one by one correspondence!
2. 3V0 for reserved power output, can provide no more than 250MA current!
2. 3V0 for reserved power output, can provide no more than 250MA current!
Title goes here.
1. CSR USB-SPI debugger is a real USB interface, much faster than the parallel port, a good solution to the computer without parallel users trouble.
2. CSR USB-SPI supports CSR series of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can download debugging program through Bluelab, support breakpoint debugging, single-step debugging, etc., through BlueFlash programming procedures.
4. Support CSR all series of Bluetooth chips, for example
BC2 series (eg BC215159A, etc.)
BC3 series (eg BC31A223, BC358239A, etc.)
BC4 series (e.g. BC413159A06, BC417143B, BC419143A, etc.)
BC5 series (such as BC57F687, BC57E687, BC57H687C, etc.)
BC6 series (e.g. BC6110, BC6130, BC6145, CSR6030, BC6888, etc.)
BC7 series (eg BC7820, BC7830, etc.)
BC8 series (e.g., CSR8605, CSR8610, CSR8615, CSR8620, CSR8630, CSR8635, CSR8640, CSR8645, CSR8670, CSR8675, etc.)
CSRA6 series (eg CSRA64110, CSRA64210, CSRA64215, etc.)
CSR10 series (e.g., CSR1000, CSR1001, CSR1010, CSR1011, CSR1012, CSR1013, etc.)
CSRB5 series (eg CSRB5341, CSRB5342, CSRB5348, etc.)
5. Support all Windows operating systems:
- Windows 98SE
- Windows ME
- Windows 2000 SP4
- Windows XP SP2 and above (32 & 64 bit)
- Windows Server 2003 (32 & 64 bit)
- Windows Server 2008/2008 R2 (32 & 64 bit)
- Windows Vista (32 & 64 bit)
- Windows 7 (32 & 64 bit)
6. Small size, easy to carry, product size: 49 * 28 * 14m
2. CSR USB-SPI supports CSR series of debugging tools, including BlueFlash, PSTOOL, BlueTest3, BlueLab and so on.
3. CSR USB-SPI can download debugging program through Bluelab, support breakpoint debugging, single-step debugging, etc., through BlueFlash programming procedures.
4. Support CSR all series of Bluetooth chips, for example
BC2 series (eg BC215159A, etc.)
BC3 series (eg BC31A223, BC358239A, etc.)
BC4 series (e.g. BC413159A06, BC417143B, BC419143A, etc.)
BC5 series (such as BC57F687, BC57E687, BC57H687C, etc.)
BC6 series (e.g. BC6110, BC6130, BC6145, CSR6030, BC6888, etc.)
BC7 series (eg BC7820, BC7830, etc.)
BC8 series (e.g., CSR8605, CSR8610, CSR8615, CSR8620, CSR8630, CSR8635, CSR8640, CSR8645, CSR8670, CSR8675, etc.)
CSRA6 series (eg CSRA64110, CSRA64210, CSRA64215, etc.)
CSR10 series (e.g., CSR1000, CSR1001, CSR1010, CSR1011, CSR1012, CSR1013, etc.)
CSRB5 series (eg CSRB5341, CSRB5342, CSRB5348, etc.)
5. Support all Windows operating systems:
- Windows 98SE
- Windows ME
- Windows 2000 SP4
- Windows XP SP2 and above (32 & 64 bit)
- Windows Server 2003 (32 & 64 bit)
- Windows Server 2008/2008 R2 (32 & 64 bit)
- Windows Vista (32 & 64 bit)
- Windows 7 (32 & 64 bit)
6. Small size, easy to carry, product size: 49 * 28 * 14m
Details Images
