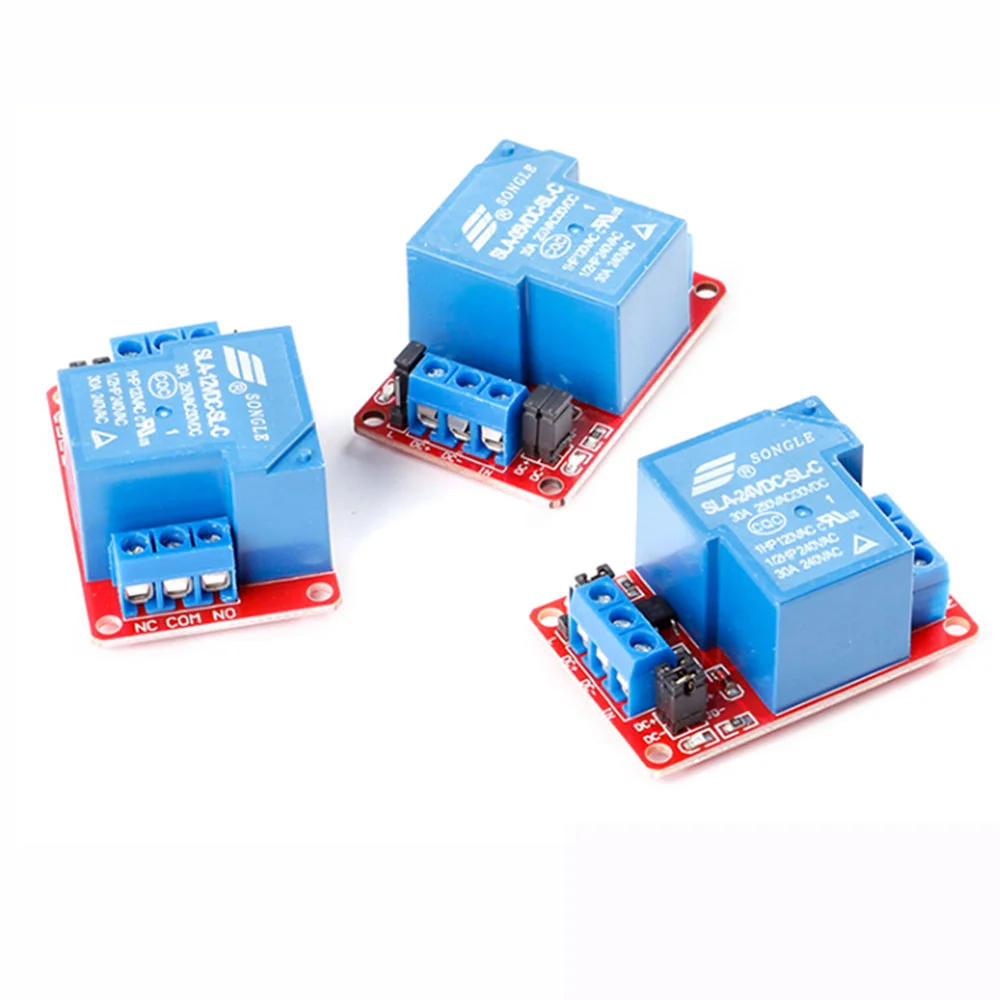

Diy DC 5V 12V 24V 30A High Power 1 Channel Relay Module With Optocoupler Isolation board High Low Level Trigger Relay
Product Description
30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A
Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA
Module can be set high level or low level trigger by the jumper
Power indicator light (green), relay status indicator light (red)
Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA
Module can be set high level or low level trigger by the jumper
Power indicator light (green), relay status indicator light (red)
Specification
|
Usage
|
AUTO
|
|
Size
|
Miniature
|
|
Protect Feature
|
Epoxy
|
|
Contact Load
|
Low Power
|
|
Size
|
50mm*33mm*24mm
|
|
Voltage
|
5V 12V 24V DC
|
|
Static current
|
5mA
|
|
Working current
|
190mA/80mA/50mA
|
|
Trigger current
|
4-2mA
|
Module interface specifications:
DC+ : DC power supply positive pole
DC- :DC power supply negative pole
IN : signal triggering pin
JD+ : relay control voltage positive
JD- : relay control voltage negative
DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger
Normally closed pin (NC) : relay normally closed pin
Common pin (COM) : relay common pin
Normally opened pin (NO) : relay normally opened pin
Rated current of the interface is 16A
DC- :DC power supply negative pole
IN : signal triggering pin
JD+ : relay control voltage positive
JD- : relay control voltage negative
DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal
High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger
Normally closed pin (NC) : relay normally closed pin
Common pin (COM) : relay common pin
Normally opened pin (NO) : relay normally opened pin
Rated current of the interface is 16A
