Description

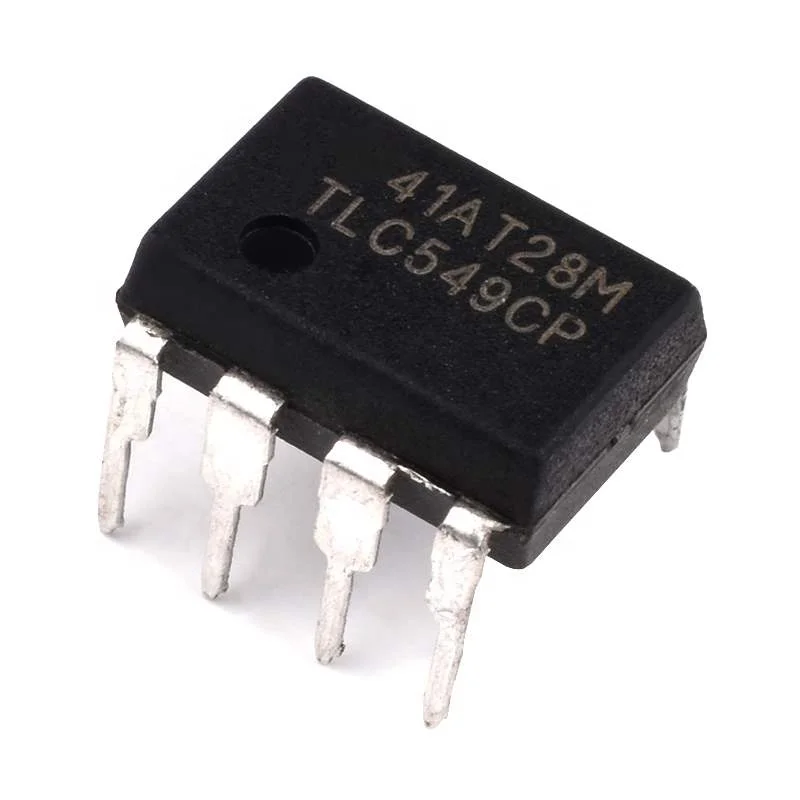

DIP 8 Bit DAC Converter IC Chip Data Acquisition Serial Analog to Digital Converter IC TLC549
Product Description
TLC549 is the United States Texas Instruments produced 8-bit serial A / D converter chip, with the general-purpose microprocessor, the controller through the CLK, CS, DATA OUT three lines for serial interface. With 4MHz on-chip system clock and hardware and software control circuit, conversion time up to 17μs, TLC549 to 40 000 times / s. The total misalignment error is ± 0.5LSB, and the typical power consumption is 6mW. Using differential reference voltage high impedance input, anti-interference, can be scaled range calibration range, VREF-ground, VREF + -VREF-≥ 1V, can be used for smaller signal sampling.
