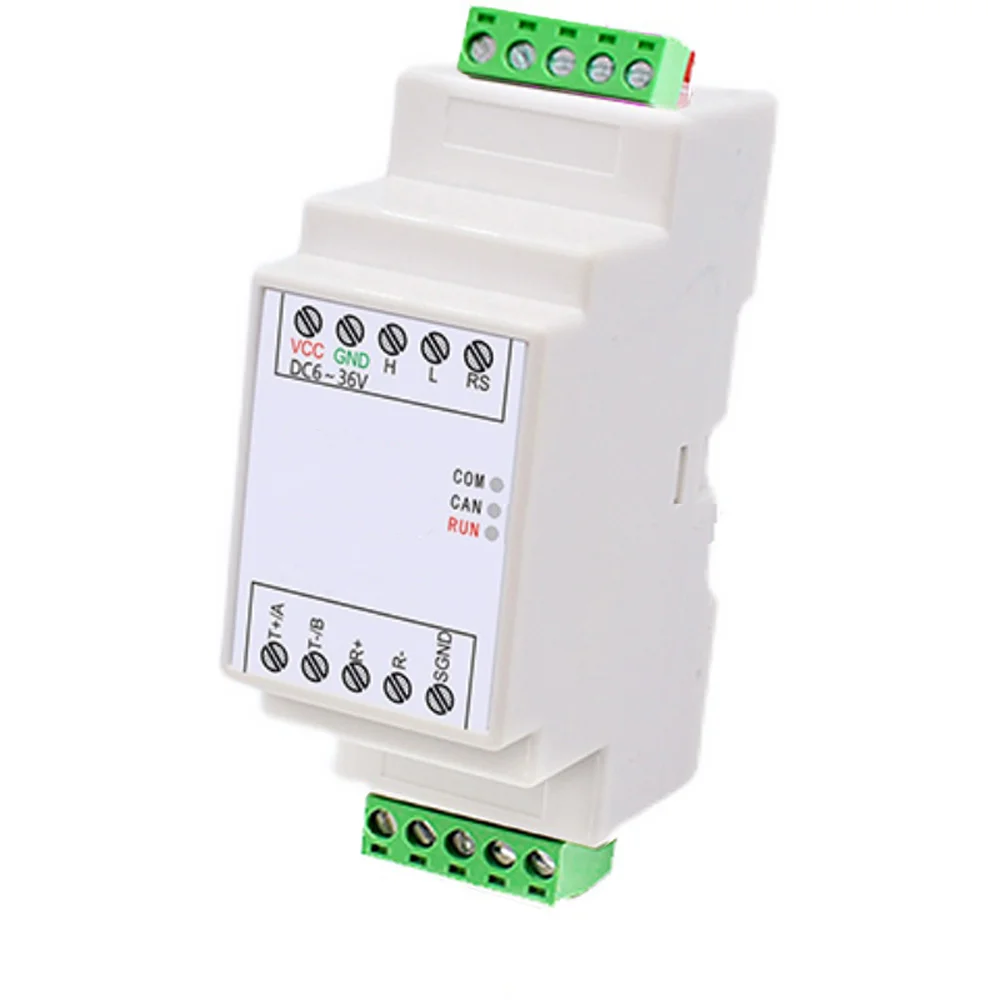

Din Rail RS422 RS485 to CANBUS RS232 Serial Port to RS422 RS485 Converter MODBUS TCP CAN Adapter
Product Description
1. Realize two-way data communication between CAN and RS485/422; 2. The firmware of the device can be upgraded through RS485/422, which is convenient for customizing the firmware; 3. Interface electrostatic protection; surge protection; has excellent EMC performance; 4.14 groups of settable filters; 5.4 conversion modes: transparent conversion, transparent label conversion, format conversion, Modbus protocol conversion; 6. With offline detection and automatic recovery function; 7. Compliant with CAN 2.0B specification, compatible with CAN 2.0A; Compliant with IS0 11898-1/2/3. ·Baud rate supports 10kbps~1000kbps. 8. The CAN buffer reaches 1000 frames to ensure that the data is not lost; 9. High-speed conversion, serial port at 115200 baud rate, CAN at 250kbps, CAN transmission speed can reach 1270 extended frames/second (close to the theoretical maximum value of 1309); serial port at 460800 baud rate, CAN at 1000kbps, CAN transmission speed Up to 5000 extended frames/sec or more;
