1.Description:

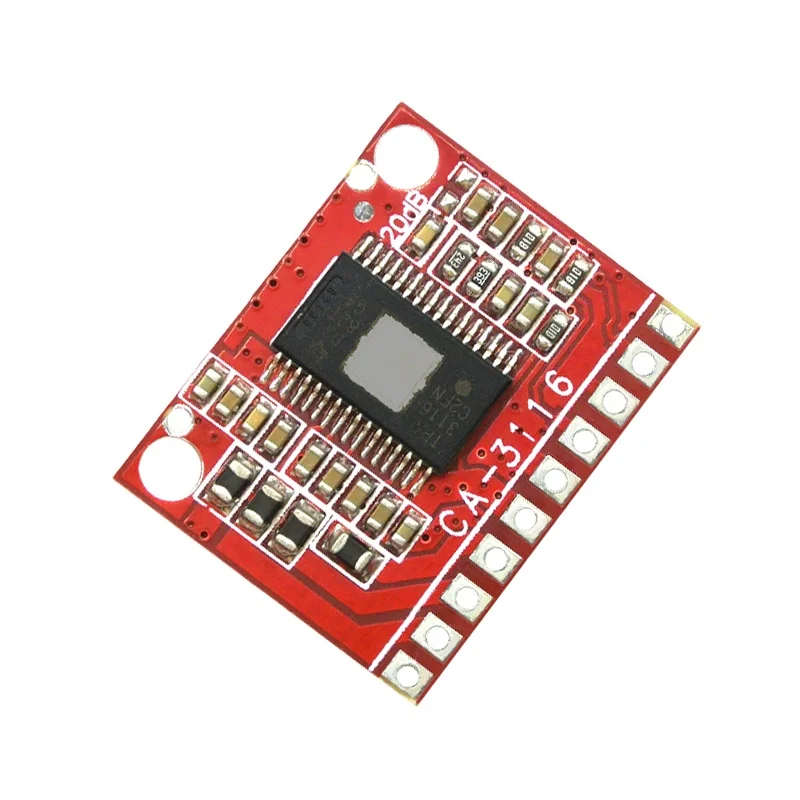

It is a 50W*2 Dual Channel Stereo Digital Power Amplifier Board.It has a built-in amplifier module that can be connected
directly to the speaker.
2.Features:
1>.Ultra small volume
2>.No POP noise
3>.Low power consumption
4>.High gain
5>.Support output short circuit protection
3.Parameters:
1>.Item name: 50W*2 Dual Channel Stereo Digital Power Amplifier
2>.Model:CA-3116
3>.Work voltage:DC 4.5V~24V
4>.Quiescent Current:28mA
5>.Chip type:TDA3116D2
6>.Work frequency:20Hz~20KHz
7>.Work type: Class D(PWM modulation)
8>.Input resistance:1Kohm
9>.Output resistance:4~8ohm
10>.Gain:36dB
11>.Noise ratio:102dB
12>.Harmonic distortion:<1%
13>.Operating Temperature:-20℃~85℃
14>.Operating Humidity:5%~95%RH
15>.Module Size:25*20*2mm
4.Package:
1>.1pc 50W*2 Dual Channel Stereo Digital Power Amplifier
