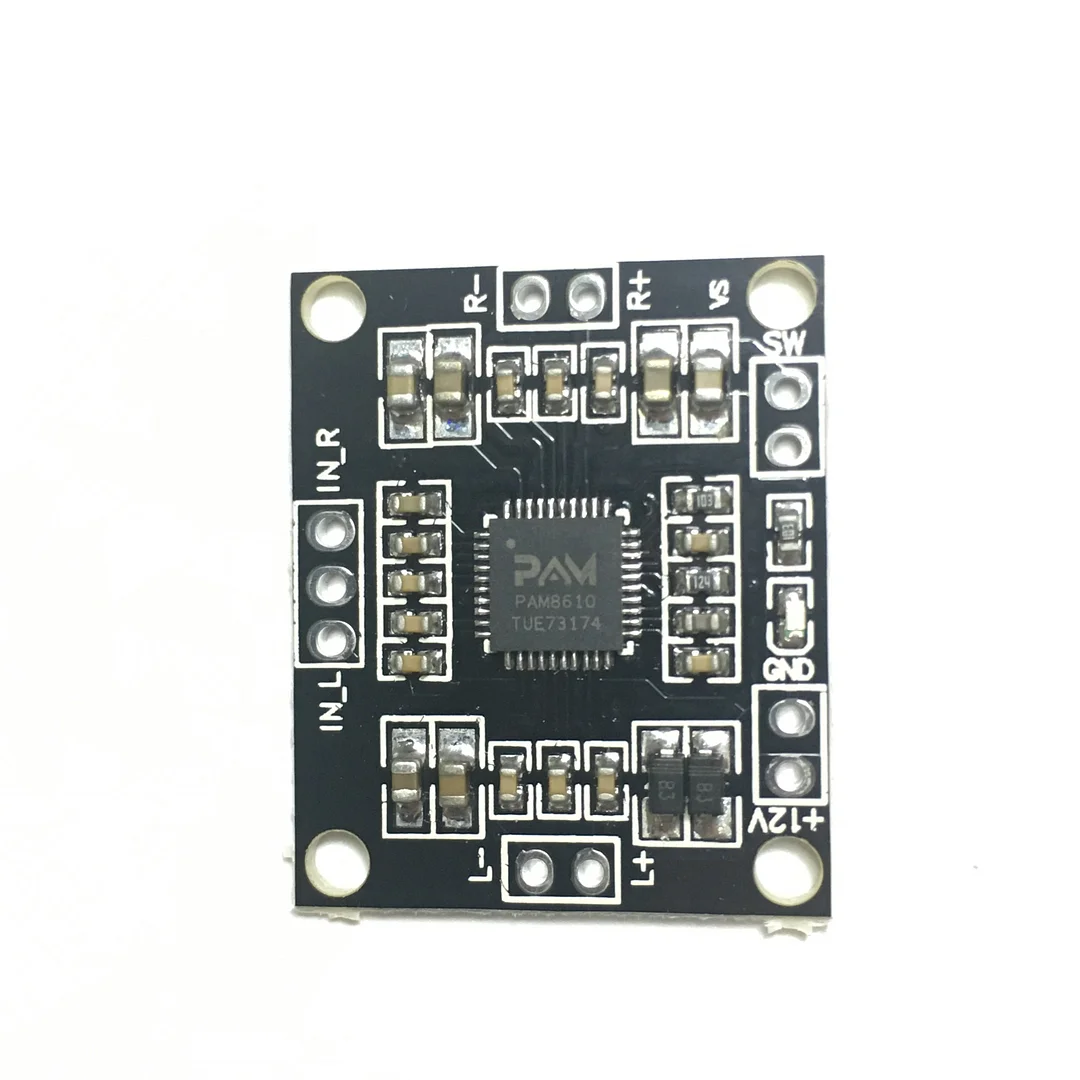

Digital Micro Stereo Amplifier 2x15W Dual Channel Class D PAM8610 Digital High Power Amplifier Board PAM 8610
Product Description
The power amplifier has super high efficiency and super power. It can output 10W+10W power under the condition of 12V power supply. The chip does not need a heat sink, and it also has protection functions such as overheating and overcurrent. The function can be said to be very powerful. This board has a switch function, shorting SW will turn off the power amplifier.
Product Name: Audio Amplifier Board Frequency response: 20HZ-15KHZ Channel Type: Dual Channel Working mode: Class D (PWM modulation type Quiescent current: 20MA (at DC12V) Chip selection: PAM8610 Signal-to-noise ratio: 90% Power supply range: DC6V-15V (self-protection) Recommended speakers: 10-100W Recommended voltage: DC12V2A Input Impedance: 15K Heat dissipation volume: No heat dissipation required Output Impedance: 4-8Ω Appearance size: 28*22*2.5 Harmonic Distortion: <0.1% Output power: 10W*2(8Q)15W*2(4o) Net weight: 3g
Specification
|
item
|
value
|
|
Supply voltage
|
DC 7V-15V
|
|
Output power
|
10W+10W(8Ω load) 15W+15W(4Ω load)
|
|
Efficiency
|
>90%
|
|
Shutdown current
|
4uA
|
|
Quiescent current
|
20mA
|
|
Signal to noise ratio
|
86%
|
|
Total harmonic distortion
|
5W/1KHz/8Ω-----0. 1%
|
|
Dimensions
|
28 *22.8 *2.5mm
|
|
Output power
|
10W* 2 15W* 2
|
|
Frequency response range
|
20Hz-20KHz
|
|
Input impedance
|
15KΩ
|
|
Channel Type
|
Dual Channel
|
|
Output Impedance
|
4-8Ω
|
|
Power amplifier board size
|
30mm* 25mm*2. 5mm
|
Installation Instructions
Title goes here.
1. The power supply limit voltage is 16.5V, please do not exceed this voltage to supply power, and do not connect the positive and negative poles in reverse.
2. The power supply is recommended to be 12V, a power supply with a better filter of 3A. 3. Speakers are recommended to use 4-8 inch speakers 4. Do not short the audio output to each other. The attacker and the ground are short-circuited. 5. Please check carefully before turning on the power to ensure that the wiring is correct before turning on the power
