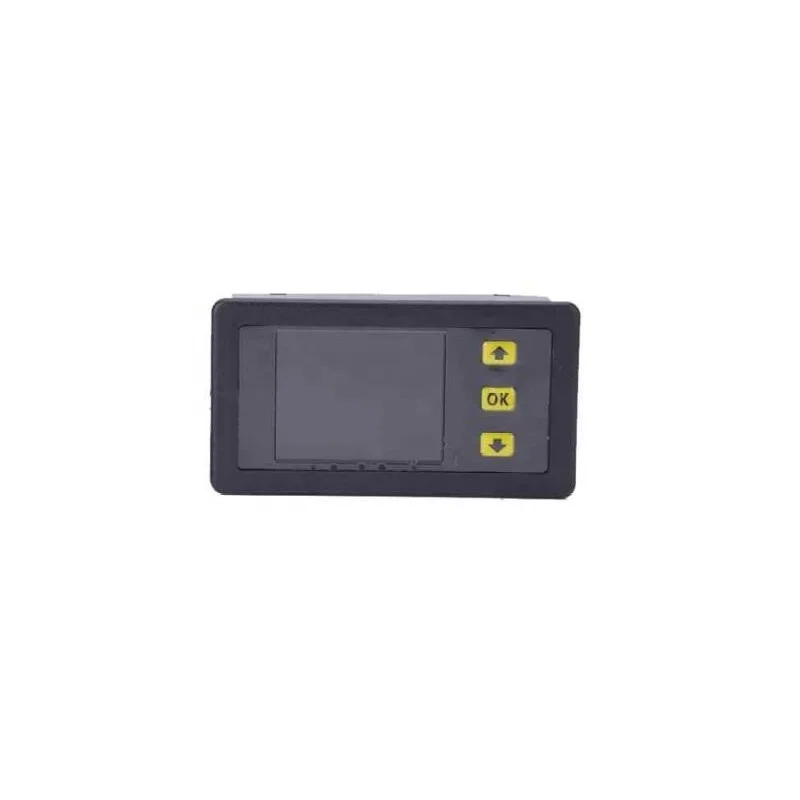

DC90V500A High Accuracy Capacity Coulomb Counter Battery Charge Hall Effect Sensor Current Ammeter Digital Multi Meter
Product Description
The default display and measurement board is 12cm 6P cable connection
Precautions
1: If you use this meter to charge, if the original capacity is not cleared, the charging capacity will continue to accumulate on the basis of the original saved capacity.
2: If you use this meter to discharge, be sure to check the original capacity. If the original capacity is 0.00AH, the capacity
will not be reduced during discharge. You must set the “OAH” value first, and then discharge after the capacity is full.
Charge and discharge mode switching method:
Move the cursor to “OUT” and press OK key to enter the charging and discharging mode switching interface. Change the AH number addition and subtraction mode by adjusting the up and down buttons. If it is "Discharge" discharge mode, the percentage of capacity will gradually decrease. If "Charging" charging mode, the percentage of capacity will gradually increase.
2: If you use this meter to discharge, be sure to check the original capacity. If the original capacity is 0.00AH, the capacity
will not be reduced during discharge. You must set the “OAH” value first, and then discharge after the capacity is full.
Charge and discharge mode switching method:
Move the cursor to “OUT” and press OK key to enter the charging and discharging mode switching interface. Change the AH number addition and subtraction mode by adjusting the up and down buttons. If it is "Discharge" discharge mode, the percentage of capacity will gradually decrease. If "Charging" charging mode, the percentage of capacity will gradually increase.
Note: It is necessary to set the percentage of AH number to display normally.
How to clear or fill the capacity
Move the yellow cursor up to “OVP”, and then click the keystroke again to make the capacity display as the progress bar mode. Then click the OK button to clear the time, or clear the AH number. Click the OK button. You can fill it up.
SIN90100A voltage and current meter is a new voltage and current meter that can measure voltage, current, charging capacity, time and other physical quantities. At the same time, it can also set parameters to achieve overvoltage protection, overcurrent protection, overpower protection, overcharge capacity protection and limited time. Protection and other protection features. The instrument uses color liquid crystal display measured data, display information comprehensive and user-friendly. This meter is ideal for applications that require monitoring of the output voltage and current as well as charging and discharging batteries.
Note: The 9020A has no protection function because the protection function must be combined with the relay drive circuit and relay of the power expansion board to form a protection circuit. More than 20A models have protection features. The 90V20A has only one control signal and cannot perform protection shutdown. I did not describe it clearly before letting some customers cause misunderstandings. I'm sorry, but if you have any questions before buying, please consult clearly and buy enough. . . .
SIN90100A voltage and current meter is a new voltage and current meter that can measure voltage, current, charging capacity, time and other physical quantities. At the same time, it can also set parameters to achieve overvoltage protection, overcurrent protection, overpower protection, overcharge capacity protection and limited time. Protection and other protection features. The instrument uses color liquid crystal display measured data, display information comprehensive and user-friendly. This meter is ideal for applications that require monitoring of the output voltage and current as well as charging and discharging batteries.
Note: The 9020A has no protection function because the protection function must be combined with the relay drive circuit and relay of the power expansion board to form a protection circuit. More than 20A models have protection features. The 90V20A has only one control signal and cannot perform protection shutdown. I did not describe it clearly before letting some customers cause misunderstandings. I'm sorry, but if you have any questions before buying, please consult clearly and buy enough. . . .
|
Features
|
||
|
1
|
Color LCD display, clear and stylish display interface.
|
|
|
2
|
Power-off memory function, able to memorize the AH number before power-off after power off, which is convenient for observation and measurement.
|
|
|
3
|
Time and AH number clear function, does not affect the next measurement.
|
|
|
4
|
Voltage, current, charging capacity, time or power at the same time show that the full and clear display information.
|
|
|
5
|
With output shutdown function keys, flexible open or shut off the output.
|
|
|
6
|
With overvoltage, undervoltage, overcurrent, limited time, overcharge and other protection features.
|
|
|
7
|
Can be online calibration, to facilitate customers to correct errors.
|
|
