Description

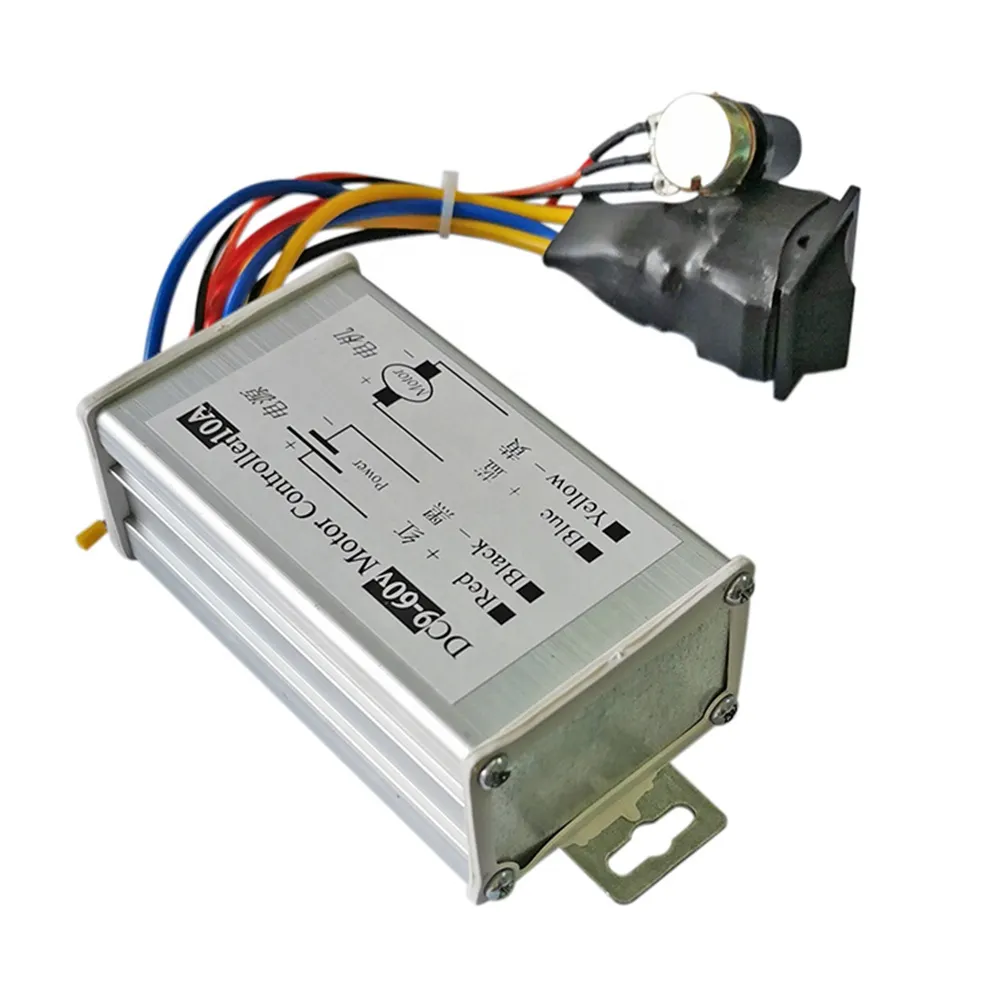

DC9-60V 600W PWM 10A Motor Speed Controller Dimming Temp Regulating Bidirection Forward Reverse Switch Electric Motor
Product Description
PWM DC motor governor module 10A 600W high-power dimming voltage regulating temperature regulating plate forward and reverse bidirectional DC9-60V universal
Specification
|
item
|
value
|
|
Input voltage
|
DC9-60V
|
|
Output Voltage
|
Linear under load
|
|
Output current
|
0-10A
|
|
Continuous power
|
600W
|
|
Speed regulation type
|
flow regulation
|
|
Speed regulation mode
|
potentiometer (linear)
|
|
Speed range
|
0—100%
|
|
Control frequency
|
25KHZ
|
|
Reverse polarity protection
|
yes
|
|
Forward and reverse
|
support
|
Installation Instructions
Notice
Electric vehicles cannot be used, including electric vehicle motors The input voltage must be positive and negative, and 220V household electricity cannot be input The input voltage should be equal to the rated voltage of the motor (within 10-55V) Such as motor rated voltage 12 input 12V motor 36V input 36V
Details Images
