Description
Product Description

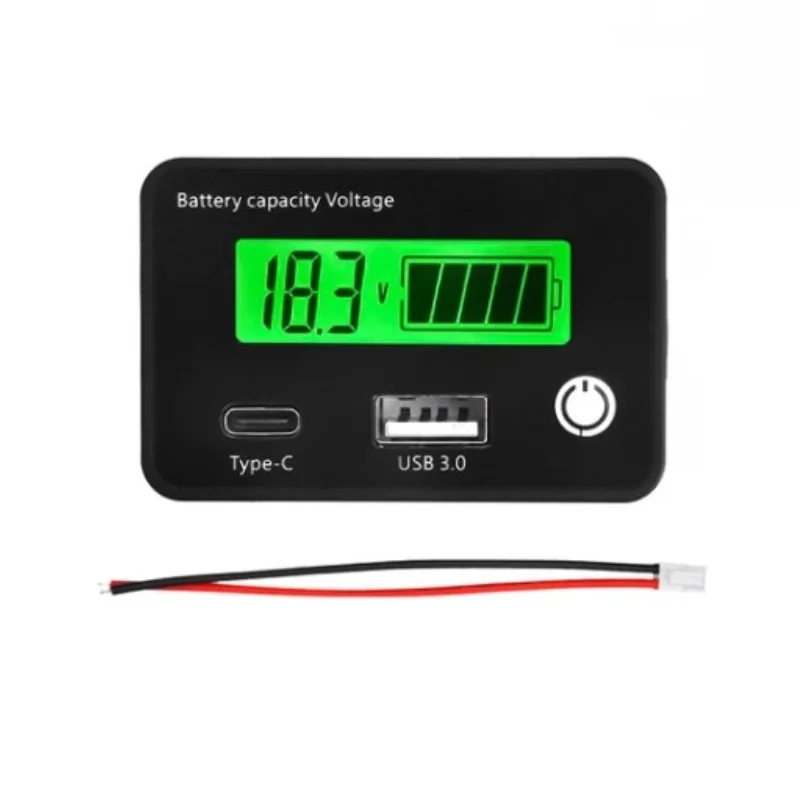

DC8-30V Battery Capacity Indicator Lead-Acid/Lron-Lithium/Ternary Lithium Measurement with USB3.0 and Tpye-C for Car Motorcycle
Features: 1.Measurement of ternary lithium battery L: L03 series to L07 series (power outage memory) 2.Lead acid battery P measurement: DC12V, DC24V (power off memory) 3.Lithium iron battery F measurement: F03 to F08 series (power outage memory) 4.Custom settings for high and low voltage range: DC8-30V 5.The front is the on/off button, and the back is the setting button. Please set the parameters before installing and using it
Mode Description: Press and hold the on/off button for 2 seconds on the main page to enter the mode settings page, and then press and hold the back settings button for 2 seconds to exit the settings page and return to the main page. Mode 1- Lead acid P setting; Mode 2- ternary lithium L setting; Mode 3- Iron Lithium F Setting; Mode 4- Customize high and low voltage settings; Mode 5- Low voltage alarm setting (alarm when voltage falls below this parameter); Mode 6- Backlight time setting;
Be careful: There are two types of lithium batteries (ternary lithium L and iron lithium F), please distinguish them; Firstly, fully charge the battery. The saturation voltage of a series of ternary lithium batteries is DC4.2V, and the saturation voltage of a series of iron lithium batteries is DC3.6V; For example, if the saturation voltage displays 29.4V (7 strings), this is a ternary lithium battery. Then, select the parameters according to the setting mode of the ternary lithium battery.
