Product Description

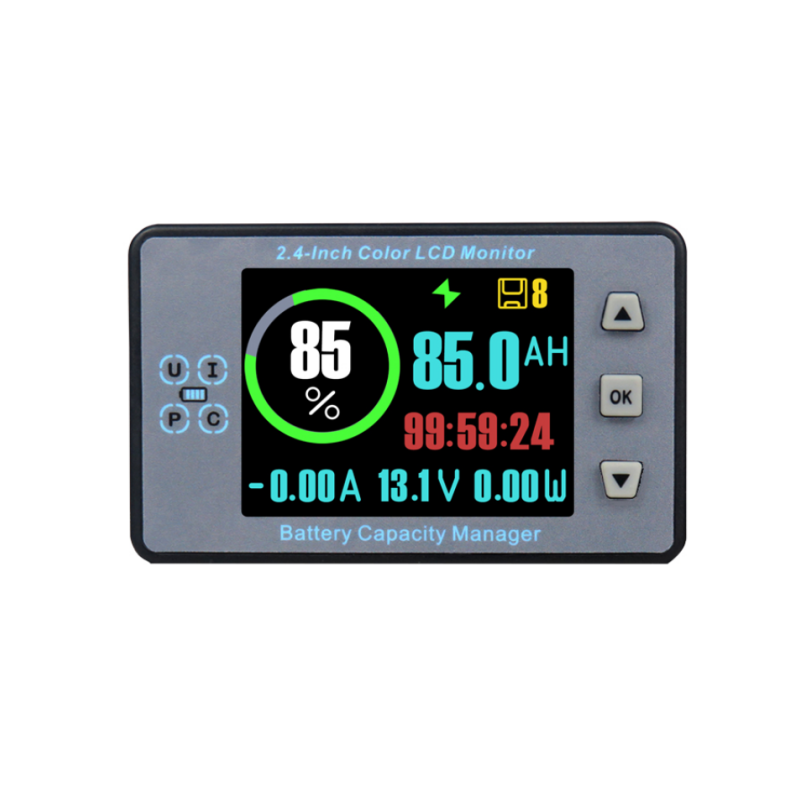

DC8-100V VA9810 Coulomb Counter Meter Battery Capacity Indicator Voltage Current Display Lithium for Lead Acid Battery Detector
Product description:
1. Use of high quality materials, durable
2. Real-time display of voltage, real-time current, real-time power, residual capacity, use of time a variety of physical parameters
3. The instrument adopts 2.4" colour LCD as the display, which shows comprehensive and clear data and is easy to observe
4. Users who detect charging and discharging can easily detect bi-directional current without changing the wiring direction
5. Using pure copper shunt to collect current, safe, convenient and accurate
6. The instrument is ideal for applications that require monitoring of output voltage and current, as well as battery charging and discharging
Parameters:
Voltage: DC8-100V
Current: 0.05~100A 0.1A~200A 0.15A~300A 0.2A~500A (self selection)
Capacity: 0.1AH~99999AH
Power value: 50KW
Voltage accuracy: ±1% + 2 characters
Current accuracy: ±0.5% + 2 characters
Display mode: 2.4" colour LCD
Power consumption: bright screen state: 0.3W off screen state: 0.2W
Communication baud rate: 9600bps
Measurement rate: 20 times/second
Display board size: (L*W*H) 86*53*17 (mm)
Measurement board size: (L*W*H) 56*36*34 (mm)
Wiring instructions:
1. Connect the positive battery terminal to the BAT+ of the shunt board and the negative power supply terminal to the "-" position marked on the shunt board.
2,The shunt must be connected in series between the battery and the load.
3. the instrument display and the acquisition module are connected with a shielded cable.
4. The sampling module should preferably be placed in a ventilated place and fixed.
Package list:
120V100A/200A/300A/500A+case:
120V100A/200A/300A/500A+3M shield wire:
120V100A+3M shield wire+case:
