Description

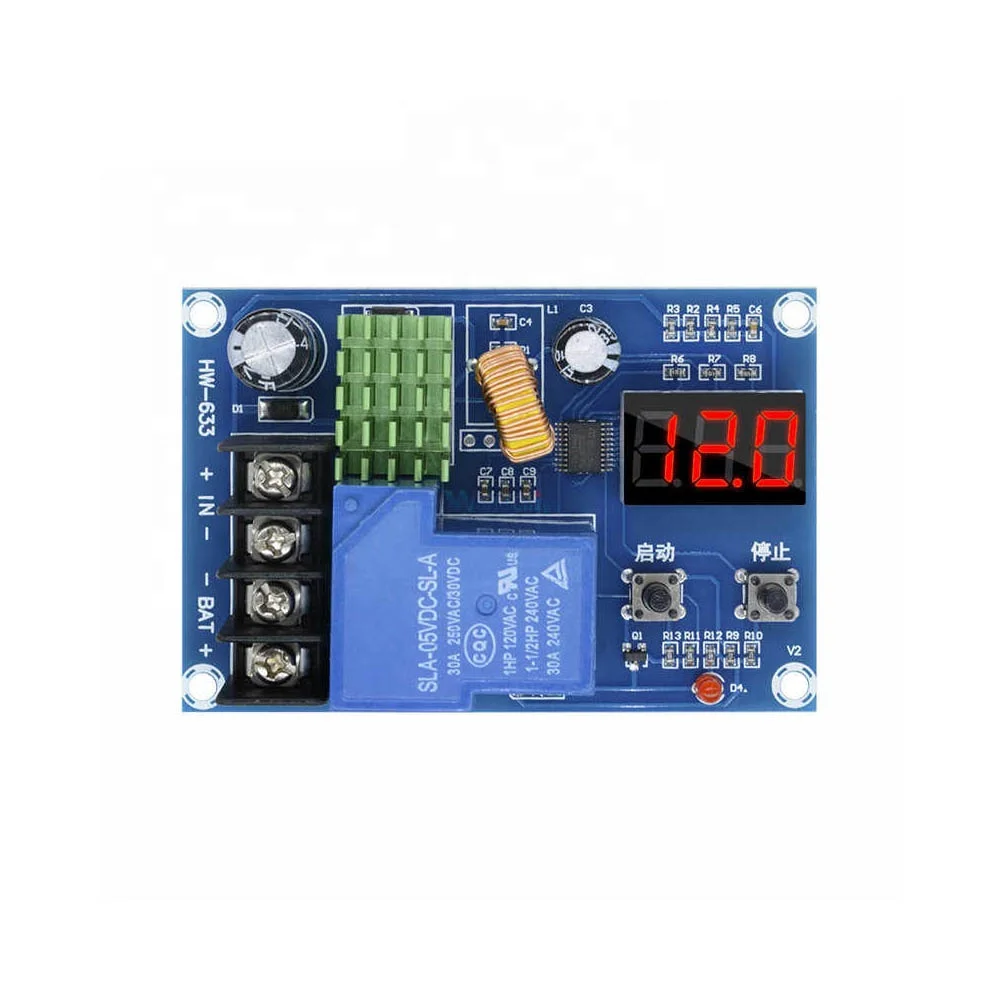

DC6-60V 30A Car Battery Charger Control Protection Switch Lead Acid Lithium Battery Digital Solar Charge Controller
Product Description
|
Input Voltage
|
DC 6-60V
|
|
Display Accuracy
|
0.1V
|
|
Control Accuracy
|
0.1V
|
|
Output Type
|
direct output
|
|
Voltage Tolerance
|
±0.1V
|
|
Application
|
6-60V MAX 80V battery
|
|
Dimension
|
81*54*18mm
|
Instructions:
In the state of setting the voltage value, the start button plays the role of the up button, and the stop button acts as the down button.
How to use:
1. Set the startup voltage:
under the normal display voltage state, press the start voltage button once to display the start charging voltage. Press and hold the start button for 3 seconds, the digit flashes, and the start charging voltage value is set by the start and stop buttons.
2. Set the stop voltage:
in the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button for 3 seconds, the digit flashes, and the charging voltage value is stopped by the start and stop buttons.
3. Restore factory settings:
press and hold the start / stop button at the same time when the power is on, the digital display 888, that means restore the factory settings.
under the normal display voltage state, press the start voltage button once to display the start charging voltage. Press and hold the start button for 3 seconds, the digit flashes, and the start charging voltage value is set by the start and stop buttons.
2. Set the stop voltage:
in the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button for 3 seconds, the digit flashes, and the charging voltage value is stopped by the start and stop buttons.
3. Restore factory settings:
press and hold the start / stop button at the same time when the power is on, the digital display 888, that means restore the factory settings.
