Description

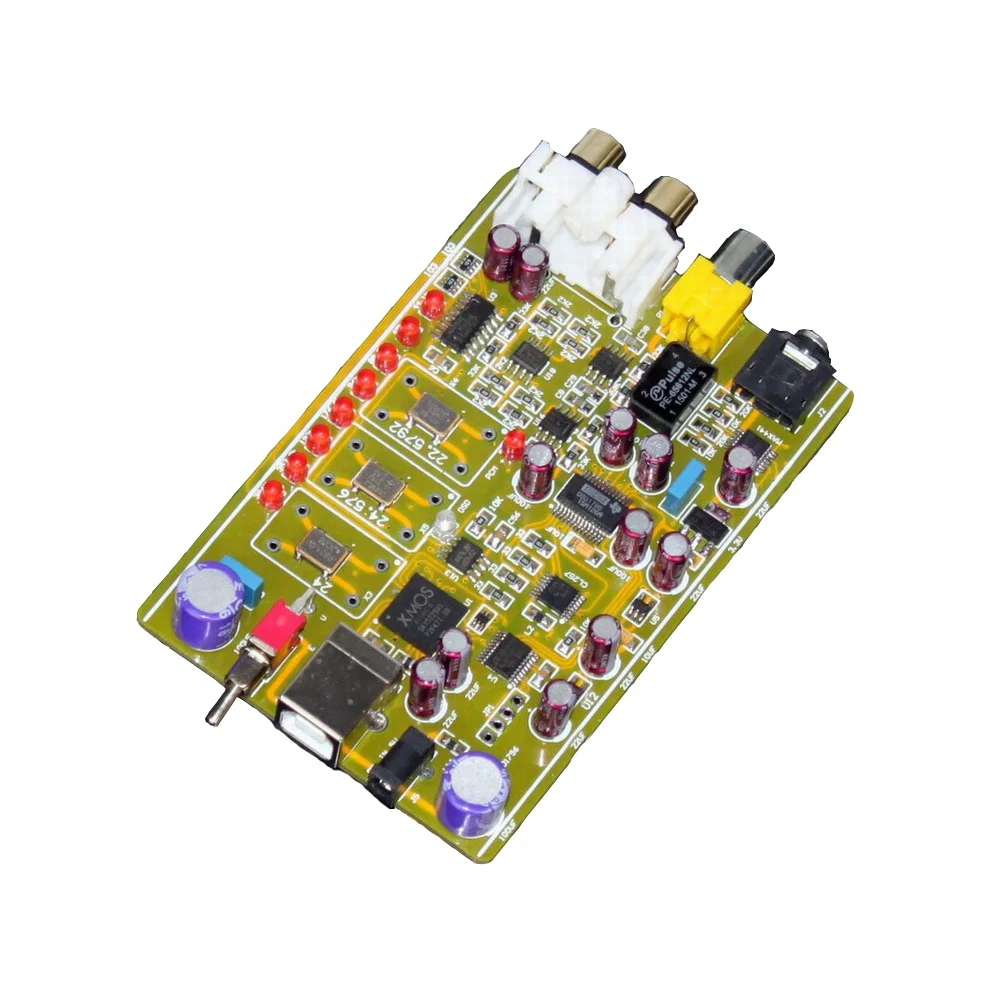

DC5V XMOSU8+DSD1796+MAX441 Decoder Board XMOS U8 Decode Board Support DSD64 DSD128 DSD256 Format PCM
Product Description
1
Use original brand new XMOSU8+DSD1796+MAX441
2
The main circuit of electrolytic capacitor signal adopts famous brand in Taiwan, and the main filter capacitor adopts imported ELNA electrolytic capacitor and solid capacitor to ensure strong and continuous power support.
3
The resistance selects a chip resistor with an accuracy of ±1% to ensure a good signal-to-noise ratio of the whole machine.
4
PCB adopts 1.6mm thick four-layer circuit board design, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents. First-class PCB quality.
5
Support DSD64, DSD128, DSD256 format music, PCM supports up to 384K, supports OTG
6
The input power DC5V can be connected or not connected, there is a switch to switch, it is recommended to use a power supply! Because the USB power supply current is small, the poor filtering effect will affect the sound quality!
7
PCB size: 66.3*100mm
8
Voltage: DC 5V
Output audio signal 1.0V RMS, signal-to-noise ratio 112db, distortion 0.001%
