Description

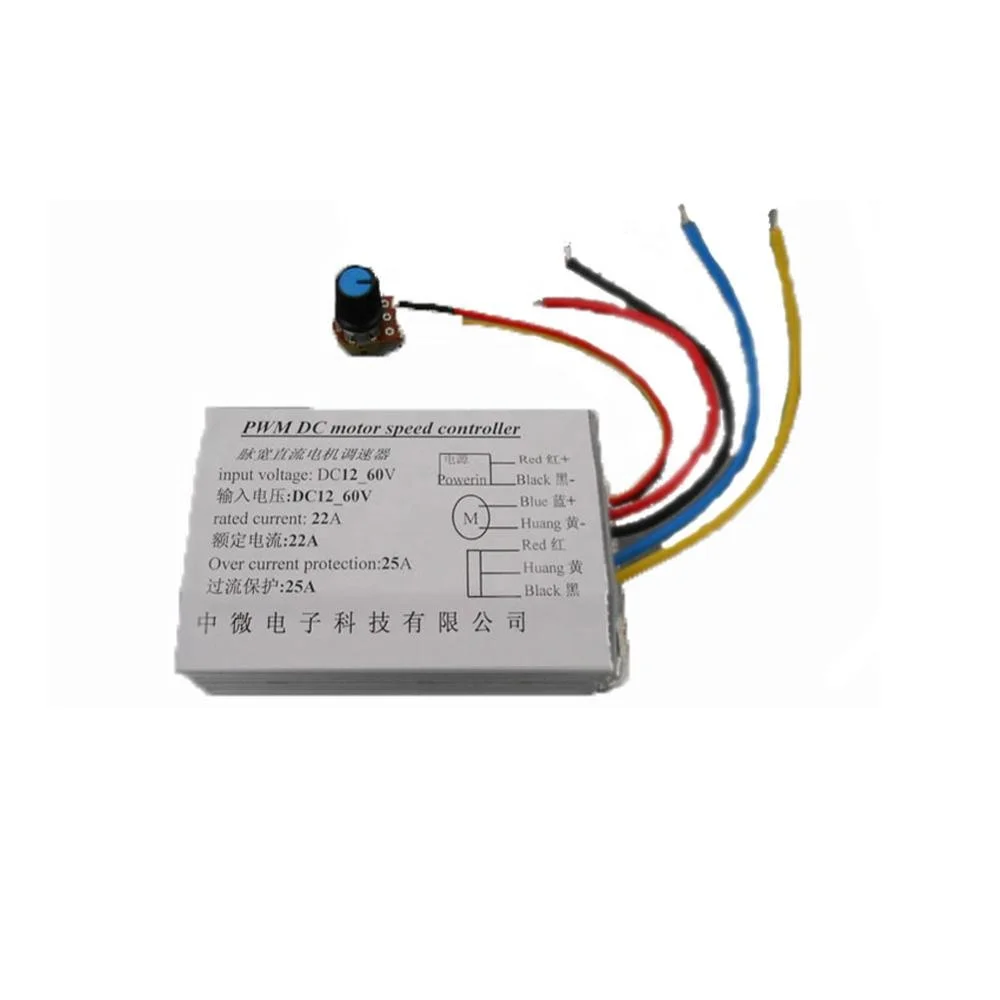

DC12V-DC60V 30A high power DC pulse width driver stepless control board pwm driver board pwm pulse generator
Parameter
(1) Working voltage: DC12V-DC60V (wide voltage)
(2) Duty cycle: 0%-100%
(3) Rated current: 22A overload short circuit protection current 25A
(4) Control power: When the voltage is different, the power parameter is .12V-250W 24V-500W 36V-750W 48V 1000W 60V 1250W
(5) Built-in fuse: 30A (this is not available in other homes)
Size
The total length is 127mm including the ear (excluding the ear 1105mm long) *67mm wide *38mm high Control signal 1: Default potentiometer control (if Hall element control is required, please refer to the handle control)
Power wiring Red thick: Power input positive black Thick: Power input negative
Blue thick: Connected motor is yellow Thick: Connected to the motor negative
